Canon PIXMA TR4520 User Manual

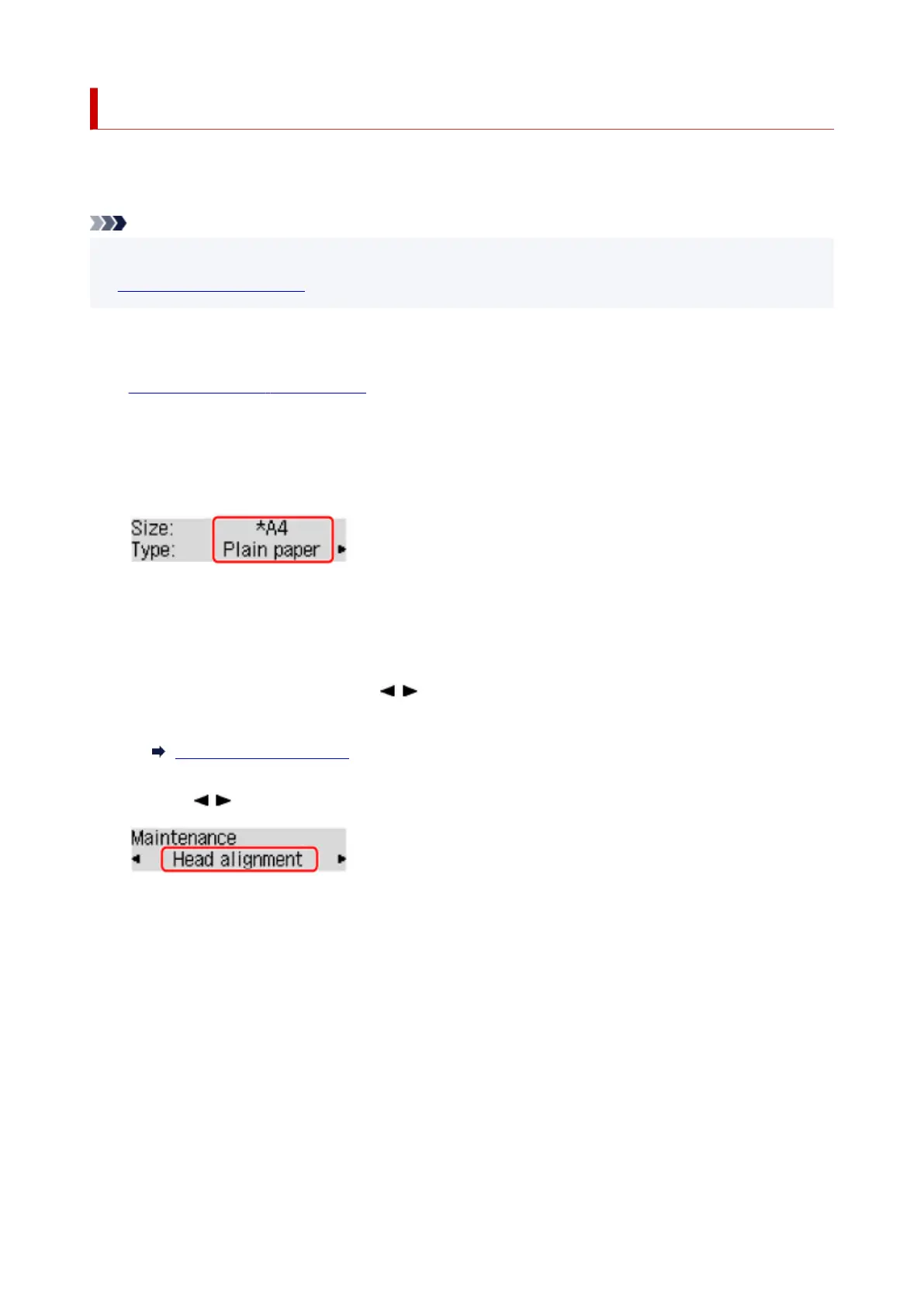

Aligning the Print Head
If printed ruled lines are misaligned or print results are otherwise unsatisfactory, adjust the print head
position.
Note
• If the remaining ink level is low, the print head alignment sheet will not be printed correctly.
Replace the FINE cartridge whose ink is low.
You need to prepare: a sheet of A4 or Letter-sized plain paper
1.
Check that printer is turned on.
2.
Load a sheet of A4 or Letter-sized plain paper in the cassette.
After pushing the cassette back, the paper information registration screen is displayed on the LCD.
Select A4 or Letter for Size: and Plain paper for Type: and then press the OK button.
3.
Pull the paper output support out from the paper output tray, then open the output tray
extension.
4.
Press the Setup button, use the button to select Maintenance, and press the OK
button.
LCD and Operation Panel
5.
Use the button to select Head alignment and then press the OK button.
The print head alignment sheet will be printed.
126

Canon PIXMA TR4520 Specifications

General

Print Technology	Inkjet
Print Resolution	Up to 4800 x 1200 dpi
Automatic Document Feeder	Yes
Duplex Printing	Yes
Operating System Support	Windows, Mac OS
Functions	Print, Copy, Scan, Fax
Paper Capacity (Plain Paper)	100 sheets
Scan Resolution (Max)	1200 x 2400 dpi
Connectivity	Wi-Fi, USB
Supported Paper Sizes	4" x 6", 5" x 7", 8" x 10", Letter, Legal
Print Speed (Black)	8.8 ipm (Black)
Print Speed (Color)	4.4 ipm (Color)
Scanner Type	Flatbed, ADF
Copier Speed (Color)	2.7 ipm (Color)
Fax Speed (Black)	Approx. 3 seconds per page
Dimensions (W x D x H)	17.2" x 11.7" x 7.5"
Fax Speed (Color)	Approx. 1 min per page
Weight	Approx. 13 lbs
