Canton Smart Connect 5.1 User Manual

82
English

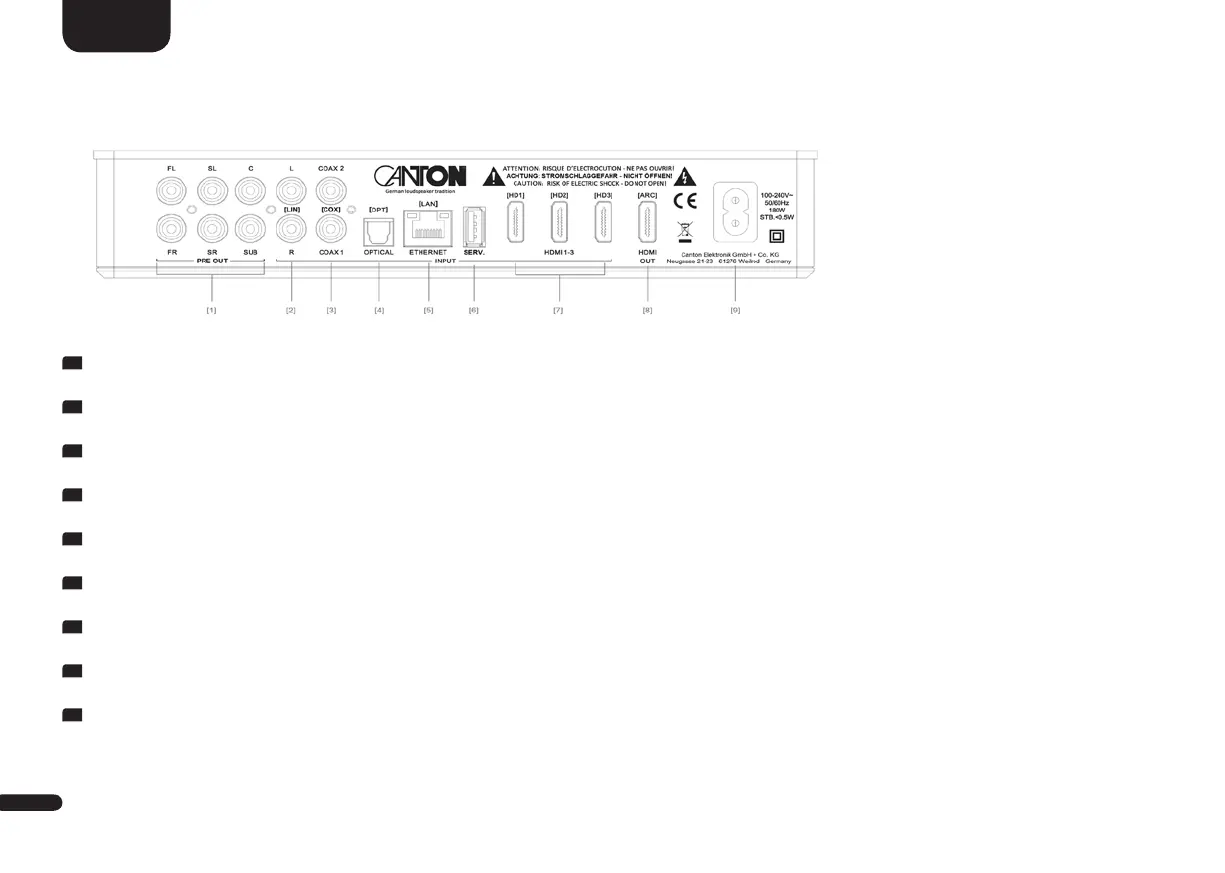

Connection Terminal
1
PRE OUT
For connection with active speakers and/or amplifiers (6x RCA, max. 2Vrms).
2
LINE L/R (AUX)
For the connection with the analogue line output of your source device (2x RCA, max. 2Vrms).
3
COAXIAL (COA) Input
For the connection with your (digital) coax audio output of your TV or digital source device (2x RCA, max. 96kHz).
4
OPTICAL IN (OPT)
For the connection with your (digital) optical audio output of your TV or digital source device (TOSLINK, max. 96kHz).
5
ETHERNET (LAN)
For the connection with a network router via ethernet cable (RJ45 Socket, 8-pole).
6
SERVICE CONNECTOR
Used for the Canton customer service only (USB A Socket, covered, no audio, no charging).
7
HDMI
®
Input - HD1 / HD2 / HD3
For the connection with the HDMI
®
Output of your digital source device (supports 3D / 4K / HDCP 2.2 / CEC).
8
HDMI
®
Output (ARC) - (Audio Return Channel)
For the connection with the HDMI
®
(ARC) input of your TV (supports 3D/ 4K / ARC / HDCP 2.2 / CEC).
9
POWER INPUT
For connection with the Mains (IEC C8, 100-240V~, 50/60Hz, 10W).

Canton Smart Connect 5.1 Specifications

General

Control type	Touch
Product color	Black
Audio decoders	DTS, Dolby Digital
Built-in display	Yes
Bluetooth version	4.0
Display technology	LED
Cables included	AC
Power consumption (economy mode)	0.46 W
HDMI input ports quantity	3
HDMI output ports quantity	1

Weight and Dimensions

Depth	140 mm
Width	245 mm
Height	52 mm
Weight	1230 g
