40
APPENDIX B - PART IDENTIFICATION

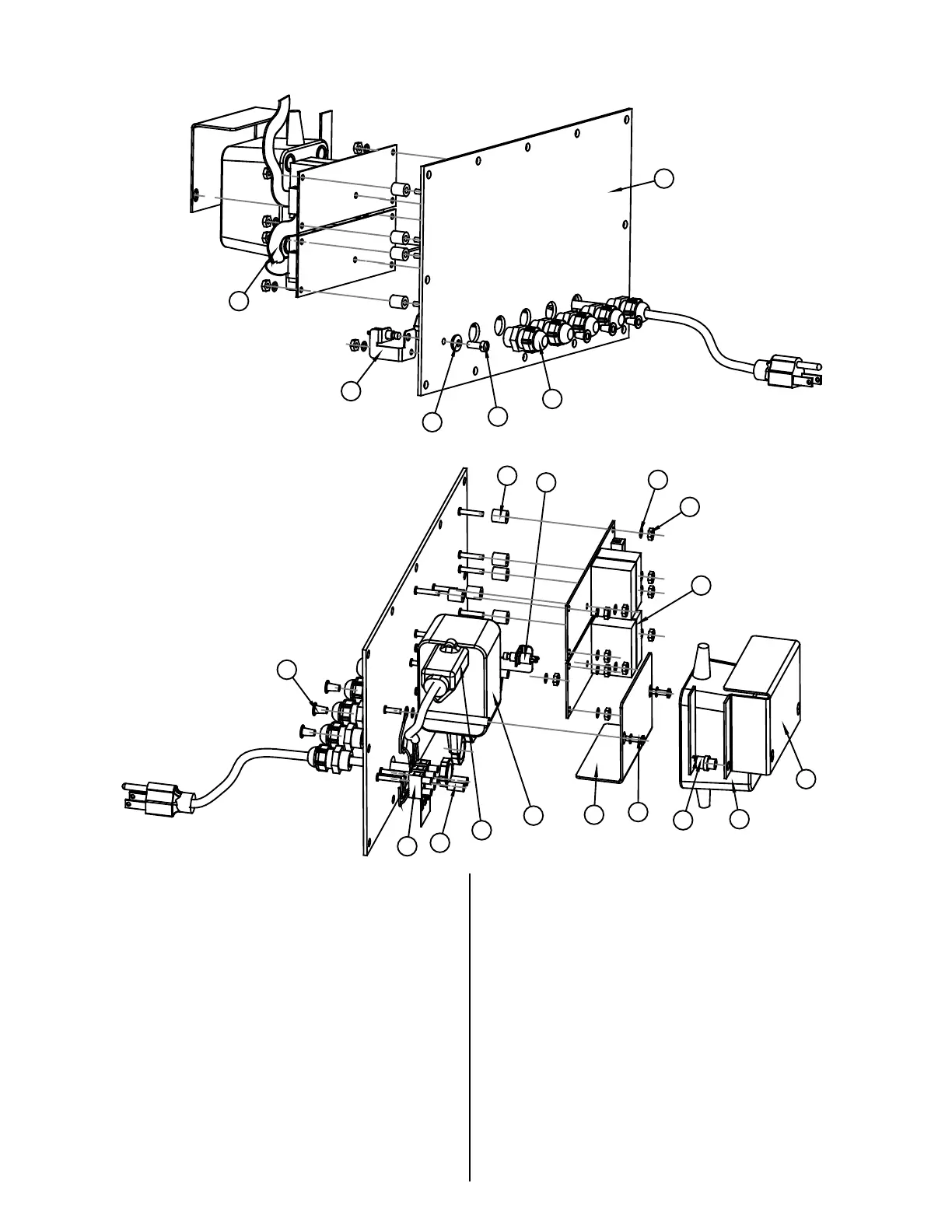

figure no. 12 - enclosure rear panel
Item Part No. Description
1 6013-0039 Hex nut #6-32
2 6021-0695 Screw pan head #6-32 x
1/2 PHMS
3 6021-1506 Screw fillister #10-32 x 500
x S.S.
4 6024-1081 Washer flat #10 neoprene
backing S.S.
5 6540-1104 Plug, hole .173 - .240 red
polyeth.
6 6610-2248 Gland connector
7 6610-5080 Conn. barrier 12-POS 24
GA-TO-12 GA
8 6680-0004 Washer lock int. tooth #6
Z/P
9 6680-0020 Spacer (PCB) #6-32 x .500
10 6680-0121 Spacer (PCB) 7/16
Item Part No. Description
12 6800-1020 AC adapter 230 VAC/
18 VDC @ 800MA
13 6980-1014 Power cord set 18/3 SVT
14 728R124 AC adapter 115 VAC /
18 VDC @ 800 MA
16 8539-B071-0A Cable: 748 PWC relay
17 8539-B249-08 Bracket: calibration switch
18 8539-B253-08 Power supply cover
(230 VAC)
19 8539-B257-08 Power supply cover
(115 VAC)
20 8539-C062-0A Assembly: PWC relay
21 8539-C248-0A Weldment: enclosure, rear
22 8539-B053-0A Assembly: cable,
calibration switch
23 8558-B028-1A EMI filter board
21
6
3
4
17
16
5
10
22
8
1
20
12
23
2
18
19
13
14
7
9
