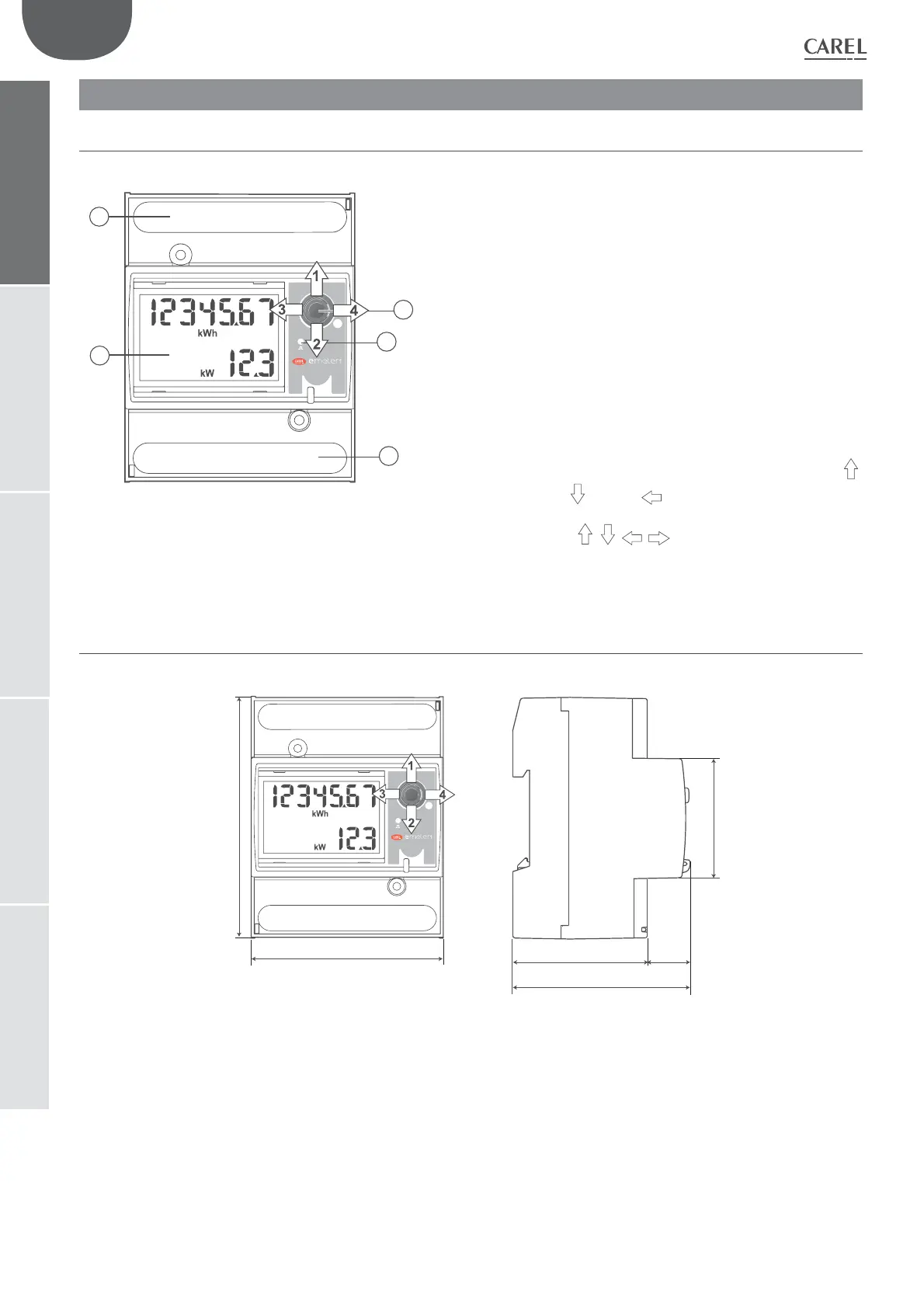

5. DISPLAY AND DIMENSIONS
5.1 Front panel layout
V
A
kWh
i
3
4
3
2
1
Fig. 5.a
c
Joystick
To program the conguration parameters and scroll the variables
on the display.
d
Red LED
Red LED blinking proportional to the energy being measured.
e
Connections
Screw terminal blocks for instrument wiring.
f
Display
LCD-type with alphanumeric indications to:
- display conguration parameters;
- display all the measured variables.
NOTE: In the working mode, the joystick can be moved UP
, DOWN and LEFT to scroll the measurement pages. In
the programming mode, the joystick can be moved in all the
direction (
, , , ) to scroll the programming
menus and to increase/decrease the setting values.
5.2 Dimensions and drilling template (DIN rail mounting )
43,6
45
66,3
16,4
90
71,6
V
A
kWh
i
Fig. 5.b
