Carel emeter1 User Manual

DIN
kWh
kWh
1
2
3
ENG
33
"Carel emeter" +0300044IE rel. 1.5 - 10.11.2017
user interface
for MT300W1100

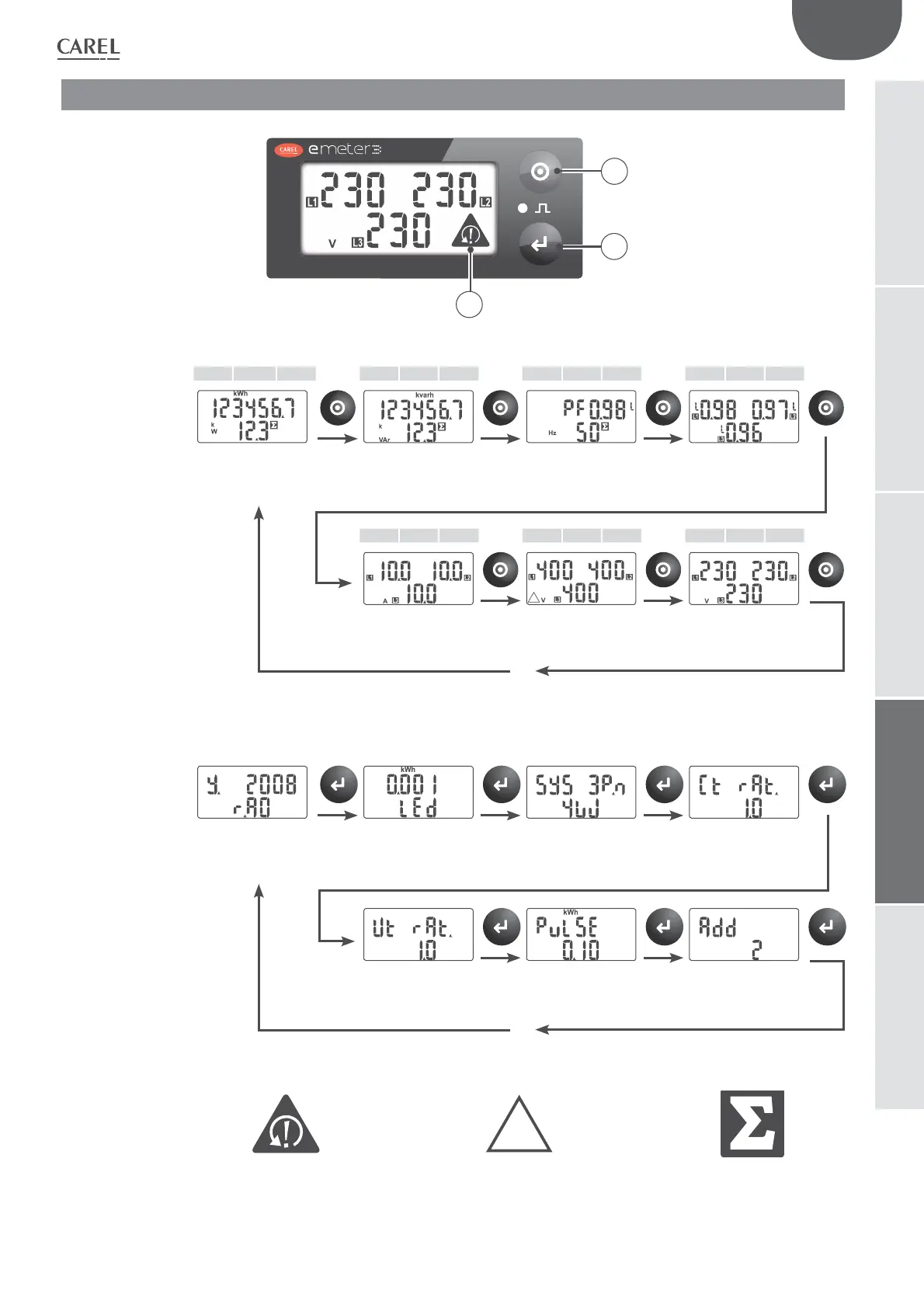

2. PROGRAMMING
3. Simbols
In case of wrong phase sequence
Phase to phase voltage
L1-2, L2-3, L3-1.
System values
APPLICATION ABC BC ABC C
1.
Measuring
pages
123456.7 kWh
12.3 kW sys
123456.7 kvarh
12.3 kvar sys
0.98 L PF sys
50 Hz sys
0.98 L PF L1
0.97 L PF L2
0.96 L PF L3
CCC
10.0 A L1
10.0 A L2
10.0 A L3
400 V L1-2
400 V L2-3
400 V L3-1
230 V L1
230 V L2
230 V L3
Available variables only with RS485 = V L-N sys, V L-L sys, VA sys, VA L1, VA L2, VA L3, var L1, var
L2, var L3, W L1, W L2, W L3.
2.
Information
pages
Year of production (Y.
2008) and rmware
rel. (r.A0).
kWh per pulse (LED).
Type of system (SYS
3P.n) and type of
connection (4 wires).
Current transformer
ratio
Voltage transformer
ratio
Pulse output: kWh
per pulse
Serial communication
address

Carel emeter1 Specifications

General

Brand	Carel
Model	emeter1
Category	Measuring Instruments
Language	English
