Humidi--MiZer
R
System Control Connections —
Humidi--MiZer System –Space RH Controller —
The Humidi-- MiZer dehumidification system requires a
field--supplied and installed space relative humidity
control device. This device may be a separate humidistat
control (contact closes on rise in space RH above control
setpoint) or a combination thermostat--humidistat control
device such as Carrier’s Edge
R
Pro Thermidistat with
isolated contact set for dehumidification control. The
humidistat is normally used in applications where a
temperature control is already provided (units with
PermierLinkt control).
To connect the Carrier humidistat (HL38MG029):
1. Route the humidistat 2--conductor cable (fiel d--sup-
plied) t hrough the hole provided in the unit corner
post.
2. Feed wires through the raceway build into the c orner
post (see Fig. 26) to t he 24--v barri er located on the
left side of the control box. The raceway provides the
UL--required clearance between high--voltage and
low--voltage wiring.
3. Use wire nuts to connect humidistat cable to two
PINK leads in the low–volta ge wiring as shown in
Fig. 35.
To connect the Thermidista t device (33CS2PPRH--01):
1. Route the Thermidistat multi--conductor thermostat
cable (field--supplied) through the hole provided in
the unit corner post.
2. Feed wires through the raceway build into the c orner
post (see Fig. 26) to t he 24--v barri er located on the
left side of the control box. The raceway provides the
UL--required clearance between high--voltage and
low--voltage wiring.
3. The Thermidistat has dry contacts at terminals D1
and D2 for dehumidification operation (see Fig. 36).
The dry contacts must be wired between CTB
terminal R and the PINK lead to the LTLO switch
with field--supplied wire nuts. Refer to the installation
instructions included with the Carrier Edge
Thermidistat device for more information.
% RELATIVE HUMIDITY
C09295

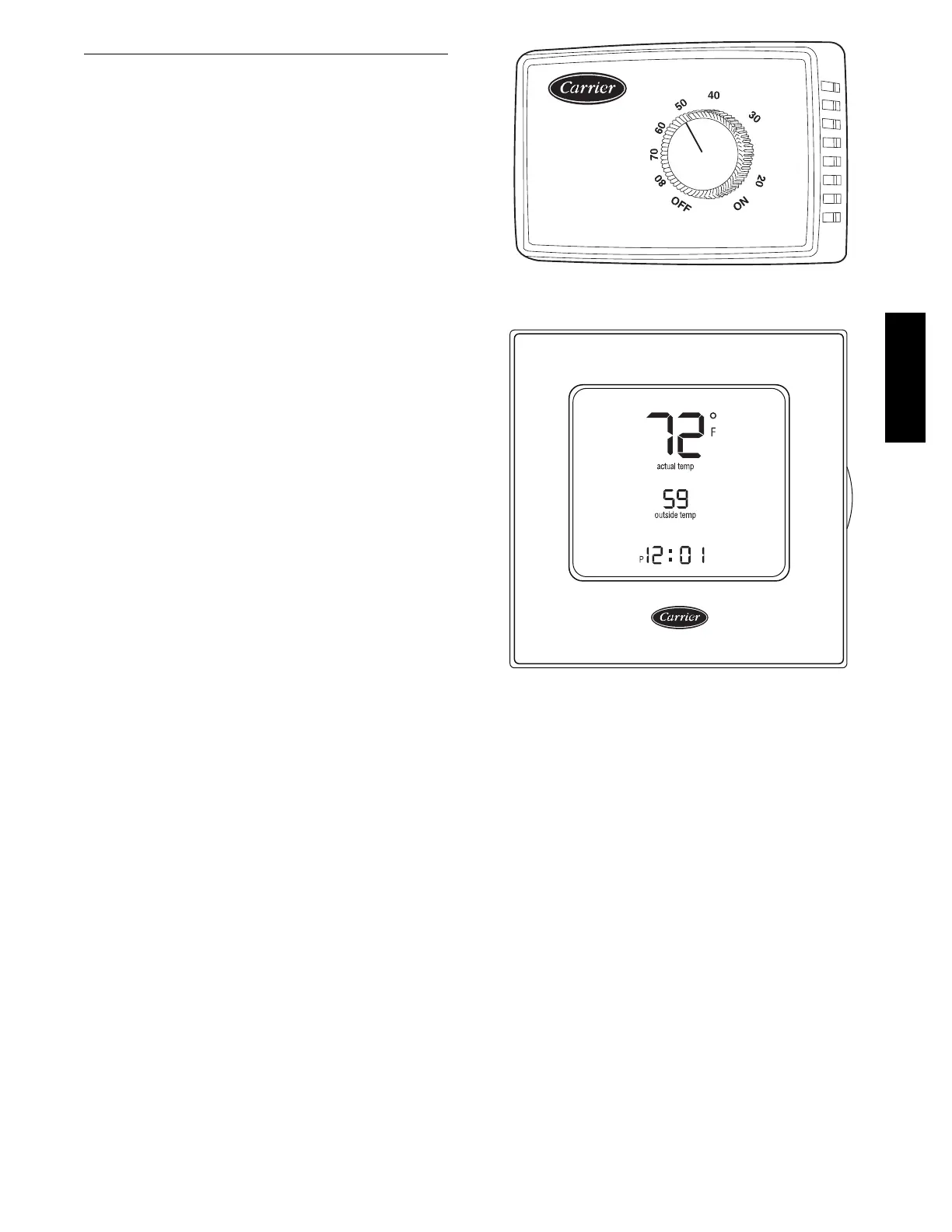

Fig. 33 -- Accessory Field--Installed Humidistat
®
C09296
Fig. 34 -- EDGE Pro Thermidistat
EconoMi$e r
R
X (Factory--Installed Option) —
For details on operating 50TC units equipped with the
factory--installed EconoMi$er X option, refer to
Factory--Installed Economizers for TC/TCQ/HC/HCQ/
LC/KC/KCQ Rooftop Units, 3 to 27.5 Nominal Tons.
Economizer Supplement Related to California Title 24.
