PremierLinkt (Factory--Installed Option) —

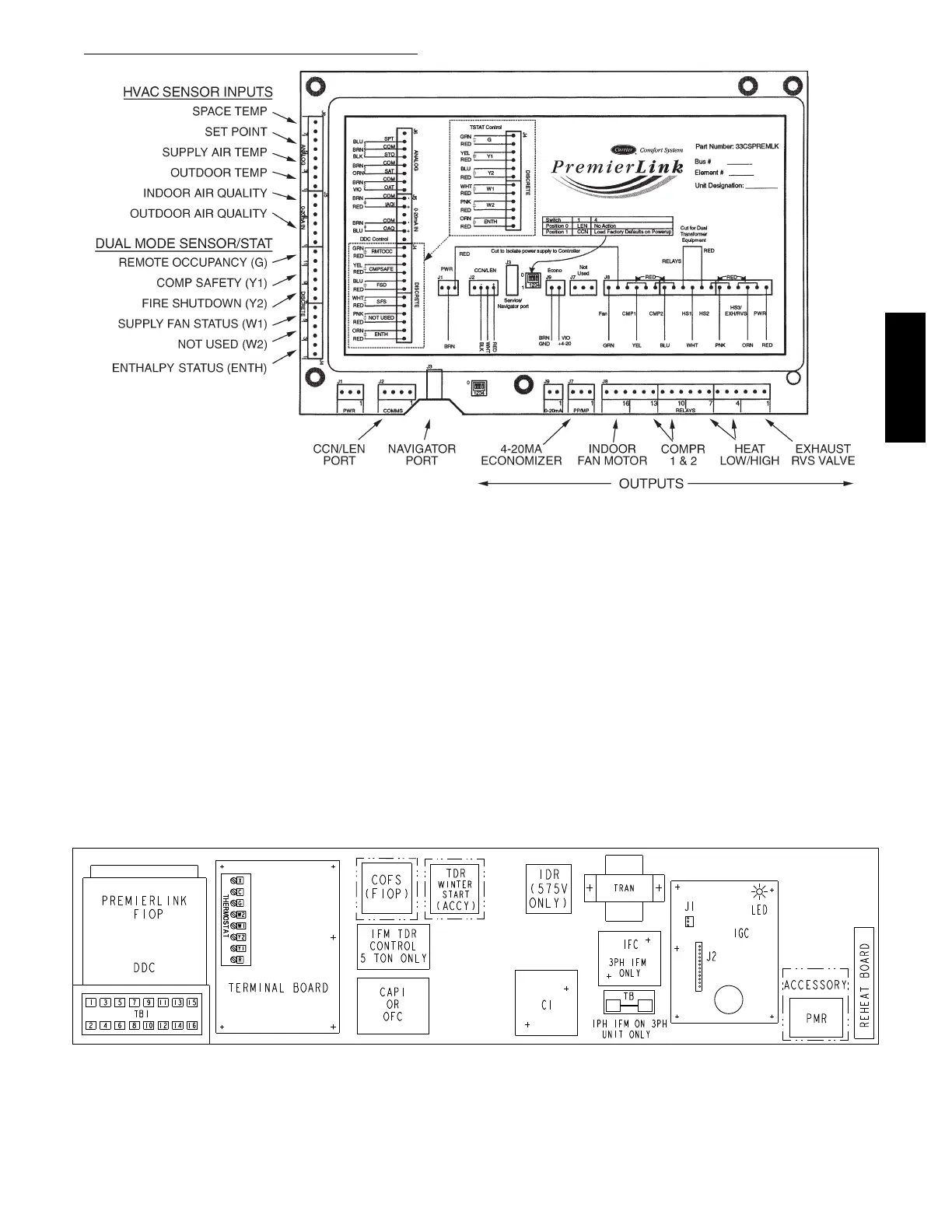

C08199
Fig. 37 -- PremierLink Controller
The PremierLink controller (see Fig. 37) is compatible
with Carrier Comfort Networkr (CCN) devices. This
control is designed to allow users the access and ability to
change factory--defined sett ings, thus expanding the
function of the sta ndard unit control board. CCN service
access tools include System Pilott, Touch Pilott and
Service Tool . (Standard tier display tools Navigatort and
Scrolling Marquee are not suitable for use with latest
PremierLink controller (Version 2.x).)
The PremierLink controller is factory--mounted in the
50TC unit’s main control box to the left of the Central
Terminal Board (CTB). Factory wiring is completed
through harnesses connecte d to the CTB thermostat. Field
connec tions are made at a 16 --pole terminal block (TB1)
loca ted on the bot tom shel f of the unit cont rol box in front
of the PremierLink controller. The factory--installed
PremierLink controller includes the supply--air temperature
(SAT) sensor. The outdoor air temperature (OAT) sensor is
included in the FIOP/accessory EconoMi$er
R
2 package.
The PremierLink cont roller requires the use of a Carrier
electronic thermostat or a CCN connection for time
broadcast to initiate its internal timeclock. This is
necessary for broadcast of time of day functions
(occupied/unoccupied).
NOTE: PremierLink controller i s shipped in Sensor
mode. To be used with a thermostat, the PremierLink
controller must be configured to Thermostat mode. Refer
to PremierLink Configuration instructions for Operating
Mode.
C150009
Fig. 38 -- 50TC Control Box Component Locations
50TC
