– 51 –
DT-X200/DT-X8
3.

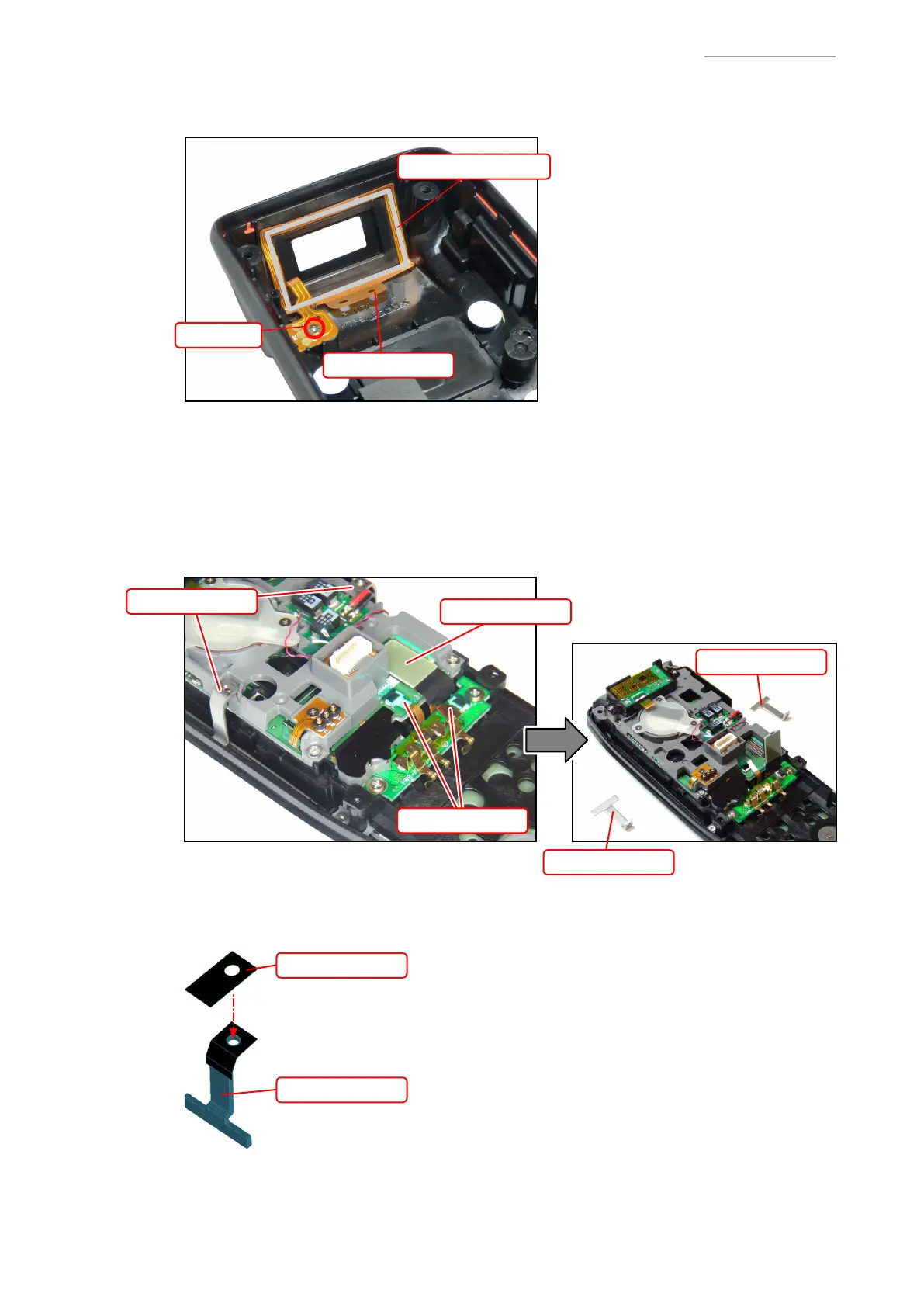

Remove the screw S1 (1 pce) and then detach the NFC-ANTENNA.
Note:
NFC-ANTENNA is fi xed with a double-face tape.
NFC-ANTENNA
Screw S1
Double-face Tape
6-2. UPPER-CASE-UNIT
(1) Removing the UPPER-CASE-UNIT
1. Peel off the tapes (2 pcs.), unlock the connector locks, and then remove the FPCs (2 pcs.).
2. Disconnect the connector.
3. Remove the SCREW-PLATEs (2 pcs.).
Note:
SCREW-PLATEs are fi xed with double-face tapes.
SCREW-PLATEs
FPCs
Connector
SCREW-PLATE
SCREW-PLATE
Note on reassembling:
• When the SCREW-PLATE is replaced with a new one, stick the P-SHEET.
SCREW-PLATE
P-SHEET
To Next Page
