— 78 —
DT-X200/DT-X8
7-3. CRADLE (
HA-K62IO/HA-K60IO
)

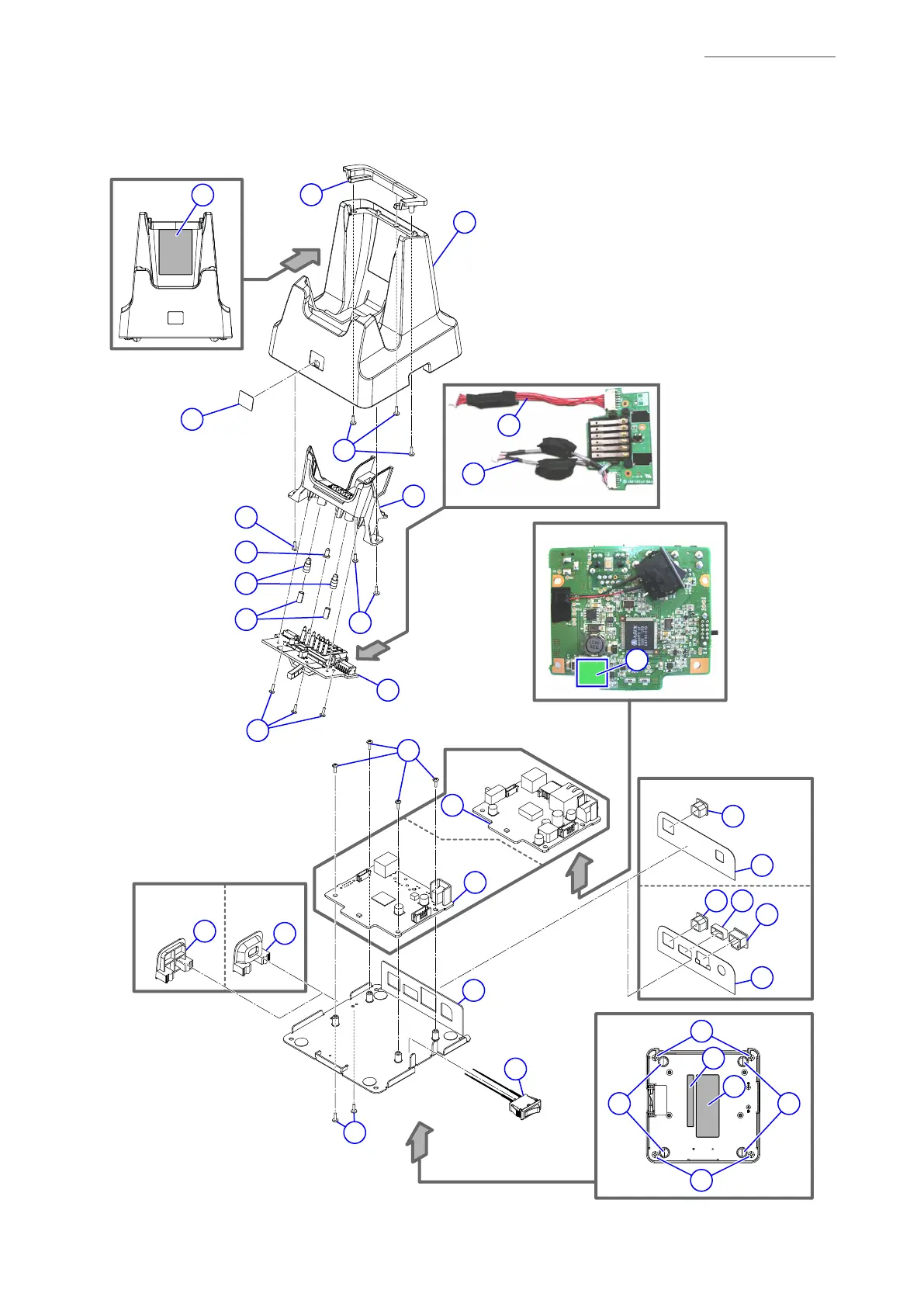

7-3-1. EXPLODED VIEW
CN-PANEL:
HA-K60IO
HA-K62IO
HA-K62IO
SIDE BEZEL:
HA-K60IO
HA-K62IO
HA-K60IO
MAIN UNIT:
HA-K62IO
S2
22
23
5
7
5
7
8
6
11
19
S2
S2
S1
S1
17 17
9
10
S3
S2
21
20
S2
3
1
2
18
4
16
13
13
12
15
14
14
