Casio XJ-V100W User Manual

73
Appendix

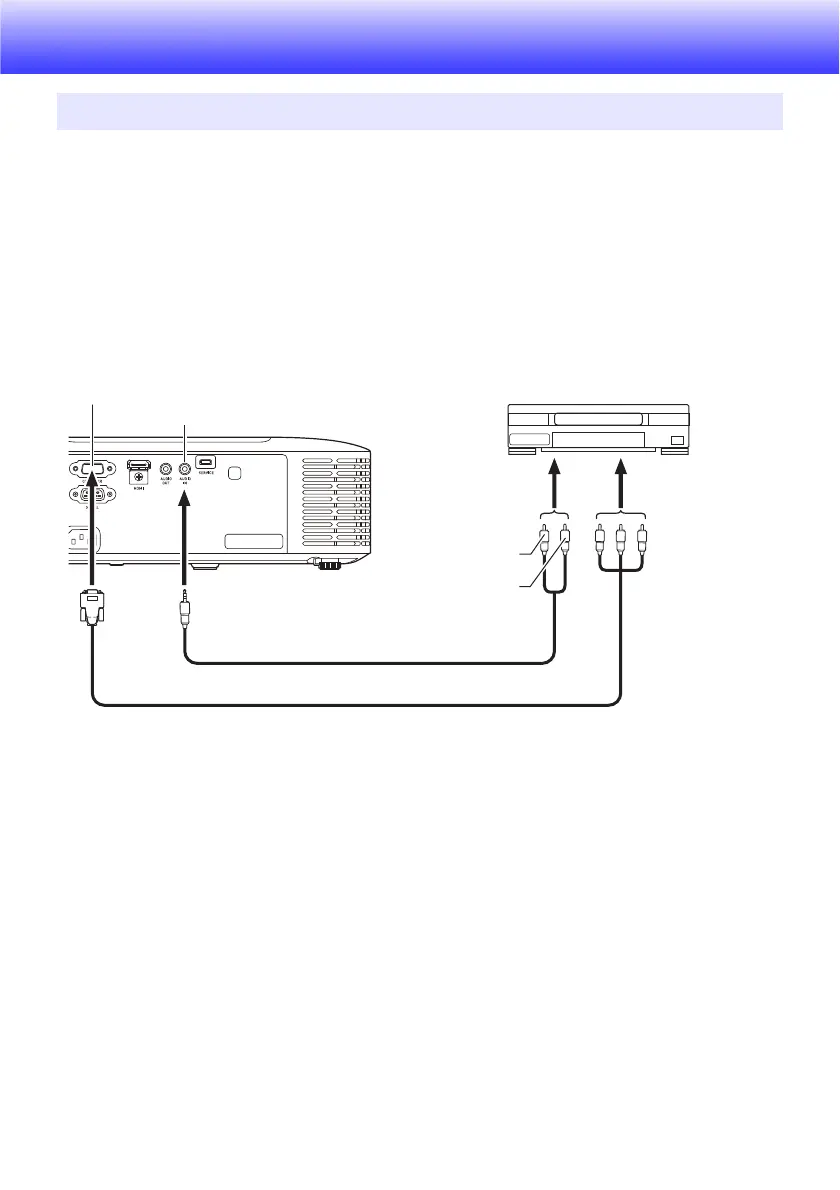

This section explains how to establish a component video connection between the projector and a
video device.
 Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
 Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.
XJ-V Series
Connecting to a Component Video Output
Projector
Stereo mini plug

Pin plug type audio cable
(commercially available)
To component video
output terminals
Component video cable (commercially available)
To audio output terminals
White
Red
COMPUTER terminal
AUDIO IN terminal
Video device

Casio XJ-V100W Specifications

General

Matrix size	0.65 \
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	20000:1
Screen size compatibility	35 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30 -30 °
Offset	33 %
Throw ratio	1.32 - 1.93:1
Zoom capability	Yes
Focal length range	18.9 - 27.2 mm
Aperture range (F-F)	2.31 - 2.73
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Maximum analog resolution	1920 x 1200 pixels
USB 2.0 ports quantity	0
Password protection type	Power on
Card reader integrated	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.12 W
Power consumption (typical)	135 W
Remote control type	IR
Harmonized System (HS) code	85286200

Weight and Dimensions

Width	299 mm
Height	97 mm
Weight	3500 g
