Cisco 1900 Series Hardware Installation
OL-19084-02
Chapter 1 Overview of the Router
Chassis Views

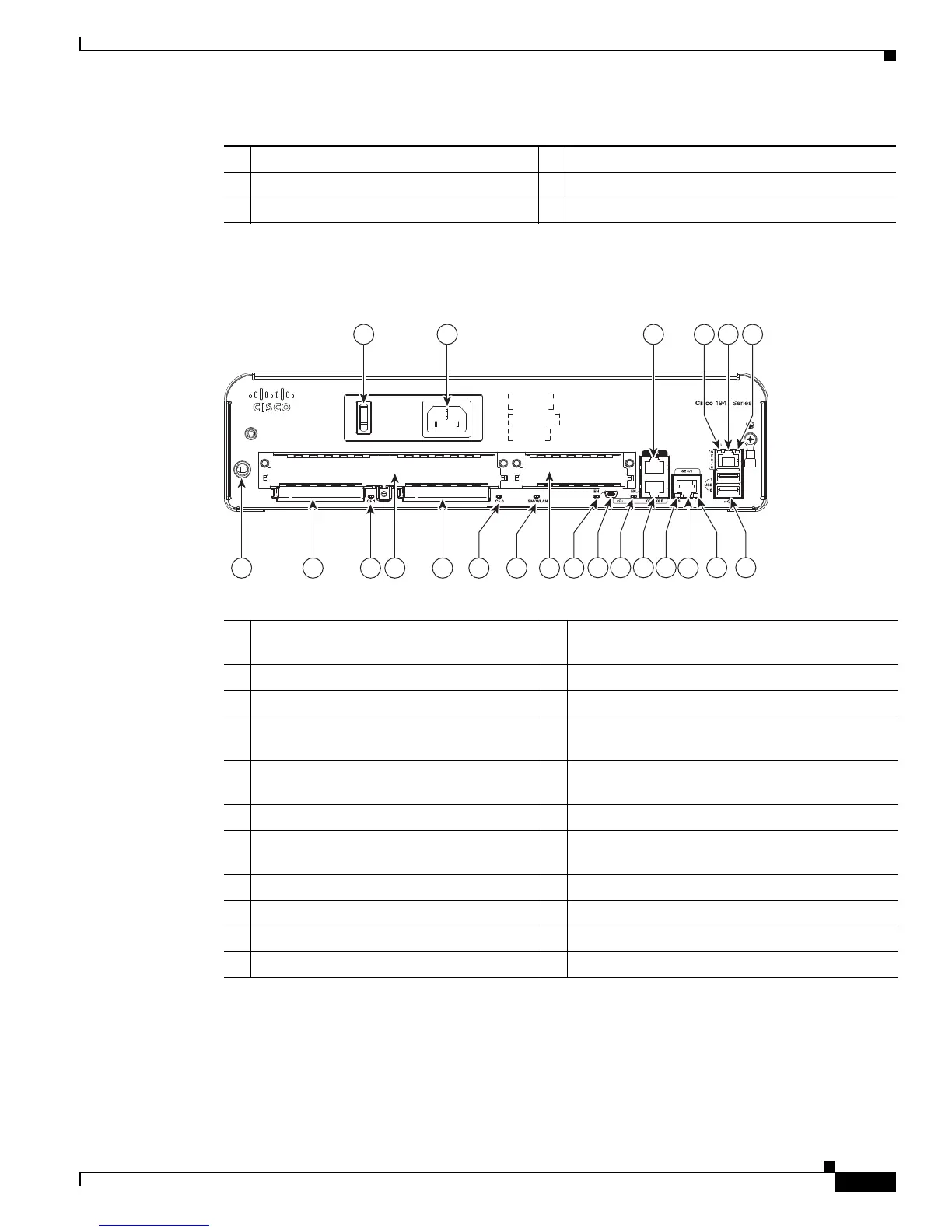

Figure 1-5 shows the Cisco 1941 and 1941W back panel with ports and LEDs.
Figure 1-5 Back Panel of the Cisco 1941 and Cisco 1941W Router
1 SYS 2 ACT
3 PoE 4 WLAN
5 2.4 or 5 GHz
1
USB ports—two USB 2.0 Type-A ports
(USB 0=Bottom)
2
L (Link)
3 GE 0/1 4 S (Speed)
5 RJ-45 serial console port 6 EN (Enable RJ-45 console)
7
USB serial port—USB 5-pin mini USB
Type-B
8
EN (Enable USB console)
9 HWIC slot 0 (EHWIC, HWIC, WIC, or
VWIC
1
)—single wide
2
1. VWIC support is for data only.
2. See Module Support on Cisco’s Integrated Services Routers Generation 2
http://cisco.com/en/US/prod/collateral/routers/ps10538/aag_c07_563807.pdf for supported modules.
10 ISM
3
or WLAN
3. Internal Service Module (ISM).
11 CF 0 12 CompactFlash 0
13 HWIC slot 1 (EHWIC, HWIC, or
WIC)—double wide
4
4. The double-wide slot can accommodate a single wide EHWIC, HWIC, WIC, or VWIC (data only), on the left side of the slot.
14 CF 1
15 CompactFlash 1 16 Kensington
TM
security slot
17 On/Off switch 18 Input power connection
19 AUX port 20 S (Speed)
21 GE 0/0 22 L (Link)
DO NOT REMOVE DURING NETWORK OPERATION DO NOT REMOVE DURING NETWORK OPERATION
273452
eHWIC 0
eHWIC 1
1516 38
7 6 5 4 2
2220
10111214
17 18 19 21
13
1
9

Cisco 1900 series Specifications

General

Routing Performance	Up to 25 Mbps
Form Factor	Desktop
Power Supply	Internal
Model	Cisco 1900 series
Firewall	Cisco IOS Firewall
Wireless Support	Optional
Memory	256 MB
