Chapter 3 Installing and Connecting the Router
Installing the Router

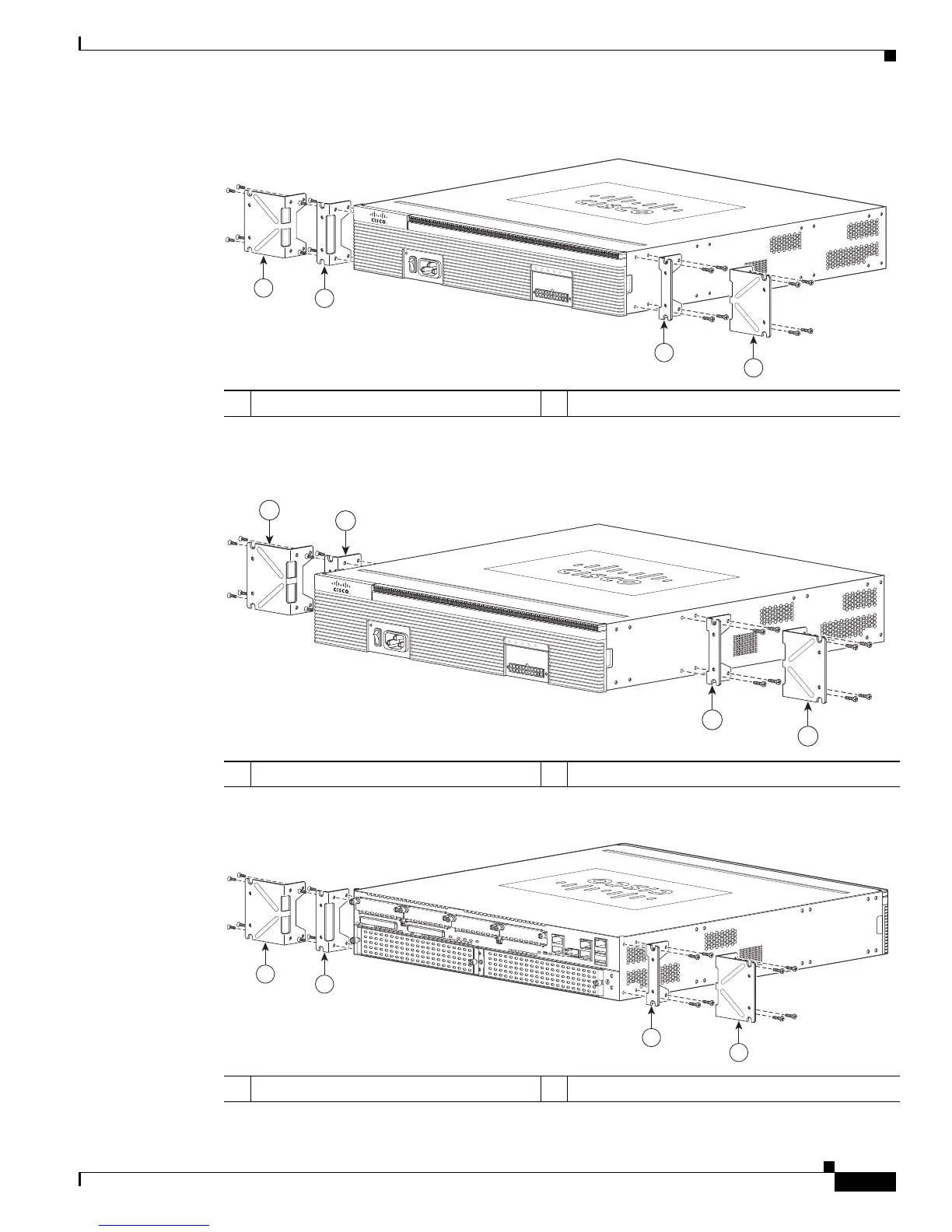

Figure 3-4 Bracket Installation for Front Mounting
Figure 3-5 Bracket Installation for Center-Front Mounting
Figure 3-6 Bracket Installation for Back Mounting
1 23-inch SBC
1
brackets
1. Southwestern Bell Corporation (SBC)
2 19-inch EIA brackets
Cisco 2900 Series
250909
1
2
1
2
SYS ACT
POE
RPS
PS
1 23-inch SBC brackets 2 19-inch EIA brackets
250910
1
1
2
2
Cisco 2900 Series
SYS ACT
POE
RPS
PS
1 23-inch SBC brackets 2 19-inch EIA brackets
DO NOT REMOVE DURING
NETWORK OPERATION
DO NOT REMOVE DURING
NETWORK OPERATION
250912
1
2
1
2
