Chapter 3 Router and PoE Module Mounting Procedures
What to Do Next

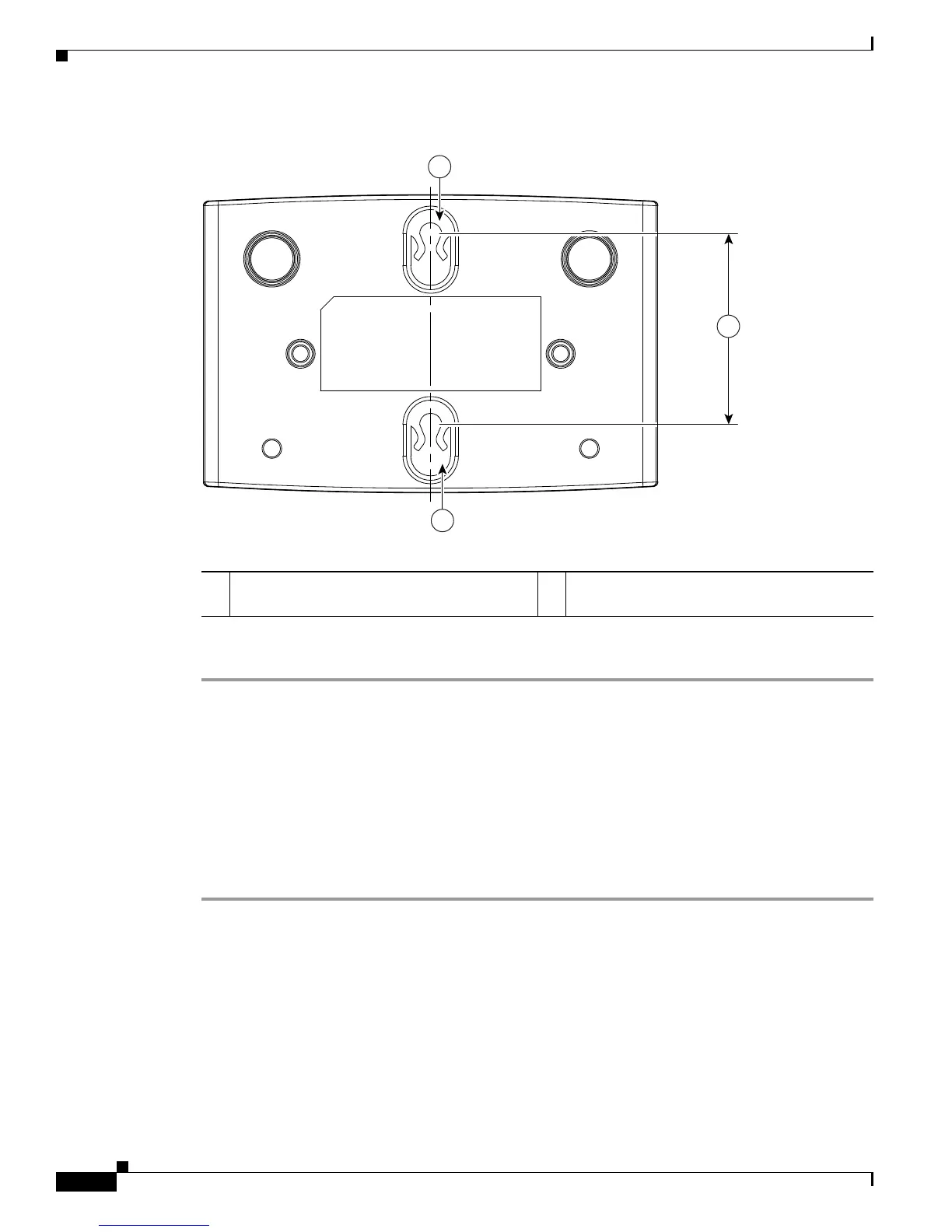

Figure 3-3 Mounting Brackets on the Bottom Panel of the PoE Module
Perform the following steps to mount the PoE module on a wall:
Step 1 Select a location on the wall on which you wish to mount the PoE module. See Figure 3-3 for the
locations of the mounting brackets on the bottom panel.
Step 2 Mark on the wall where the mounting screws will be anchored, making sure that the marks line up
vertically. Drill two holes 1.70
in. (4.32 cm) apart on the wall, using the drill bit size that is specified by
the screw or hollow-wall anchor manufacturer.
Step 3 Anchor the screws into the wall, leaving 1/8 in. (0.32 cm) between the screw head and the wall for
mounting the PoE module.
Step 4 Hang the PoE module on the wall, and secure the screws into the latches of the mounting brackets.
Step 5 Place the power supply on a horizontal surface.
What to Do Next
Connect devices to the router by following the instructions in Chapter 4, “Router Cabling Procedures.”
1 Mounting brackets 2 Distance between the mounting brackets
(1.70
in. [4.32 cm])
127092
1
1
2
