Removing and Replacing Modules
The reversible pin adaptor is color coded. One side is blue and the other side is red.
To install the module in a transmitter slot, assemble the pin adaptor on the module
with the red side facing outward. To install the module in a receiver slot, assemble
the pin adaptor on the module with the blue side facing outward.

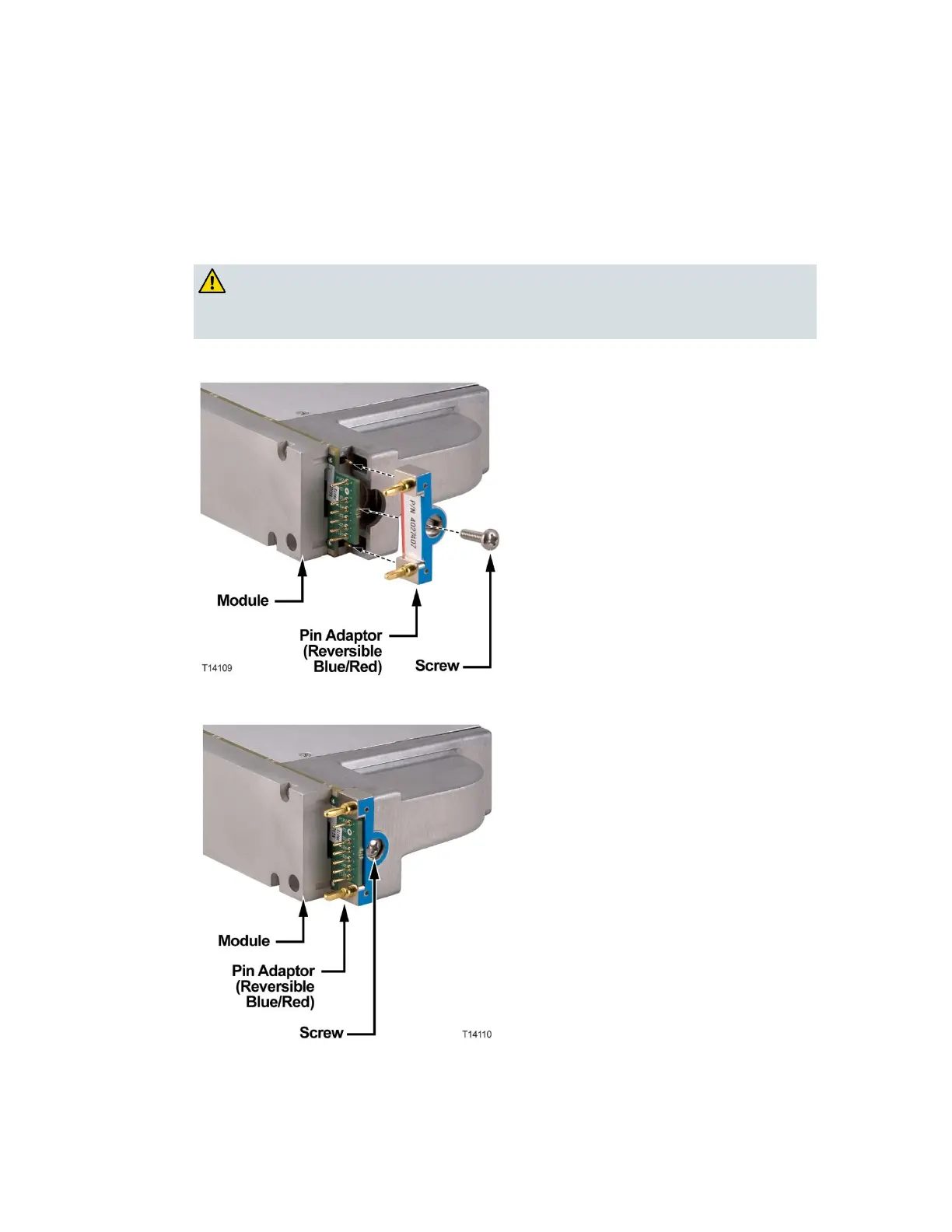

The following illustrations show how to assemble the pin adaptor to the module.
To prevent electrostatic damage to electronic equipment, take ESD
precautions, including the use of an ESD wrist strap.
