Appendix C
Expanded Fiber Tray
Expanded Fiber Tray Installation
Installation Procedure
Perform the following steps to install the expanded fiber tray in the node.
1 If you are replacing a standard fiber tray in an existing node, go to step 2.
If you are not replacing a standard fiber tray, go to step 3.

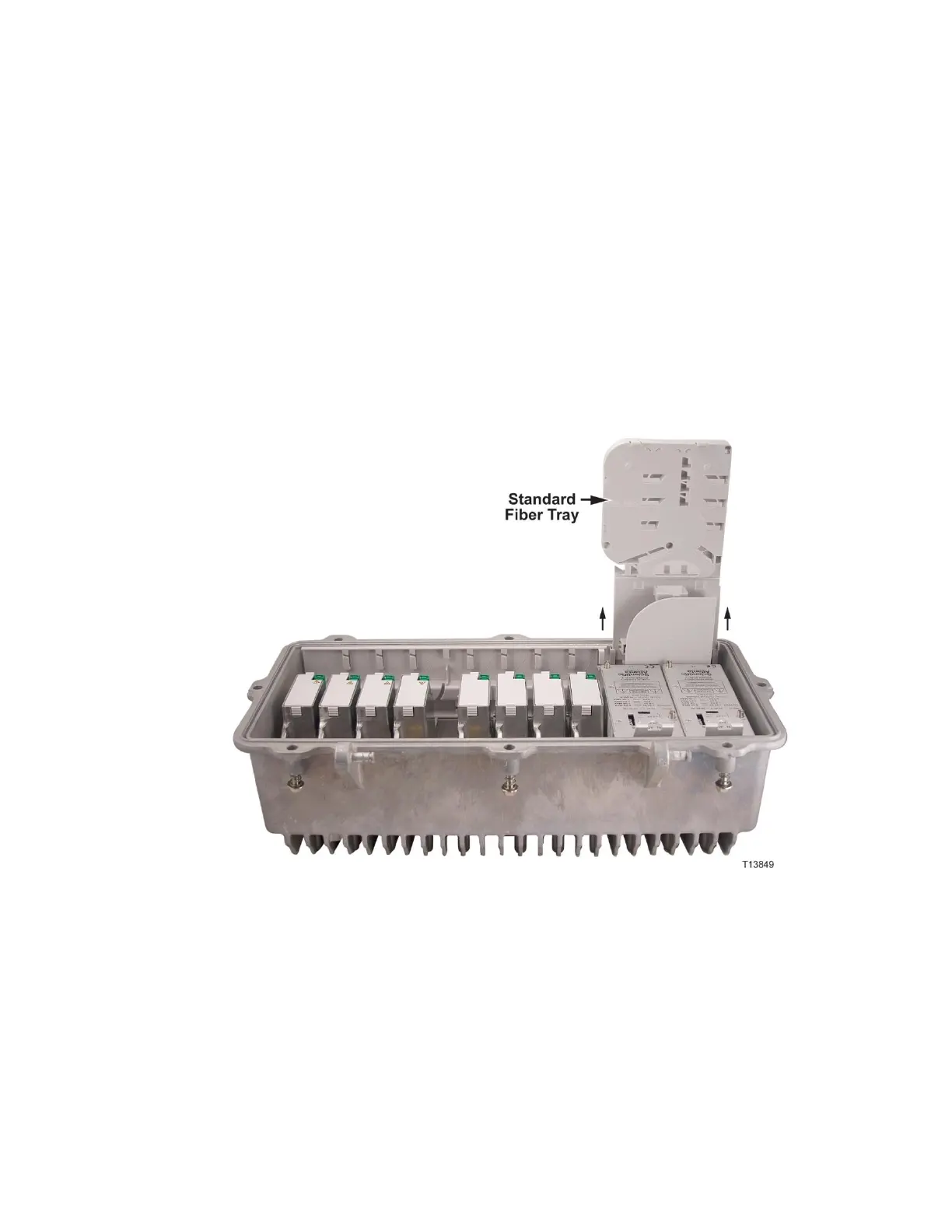

2 Remove any installed fibers from the existing standard fiber tray and then
remove the fiber tray from the node by pulling up on the fiber tray assembly as
shown in the following illustration.
3 Make sure that the expanded fiber tray clear cover is secured in place on the fiber
tray.
Note: Push down on the cover at the cover locking tabs around the periphery of
the fiber tray to secure the cover.
4 Insert the expanded fiber tray part way into the node lid as shown in the
following illustration.
