When installing the cabling to the RSPs, we recommend that you leave a service loop of extra cabling sufficient
to allow for fan tray removal.
Note
Connecting a Cable to the GNSS Antenna Interface
The GNSS module is not hot swappable.
Note
Procedure
Step 1 Connect one end of a shielded coaxial cable to the GNSS RF IN port.
Step 2 Connect the other end of the shielded coaxial cable to the GNSS antenna after the primary protector.
The GNSS RF In port should have a primary protector installed to meet the Local Safety guidelines.
Note
The GNSS RF In coaxial cable shield must be connected to the Facility Equipment Ground through
the chassis. The chassis must have the ground wire connected to the Facility Equipment Ground.
Note

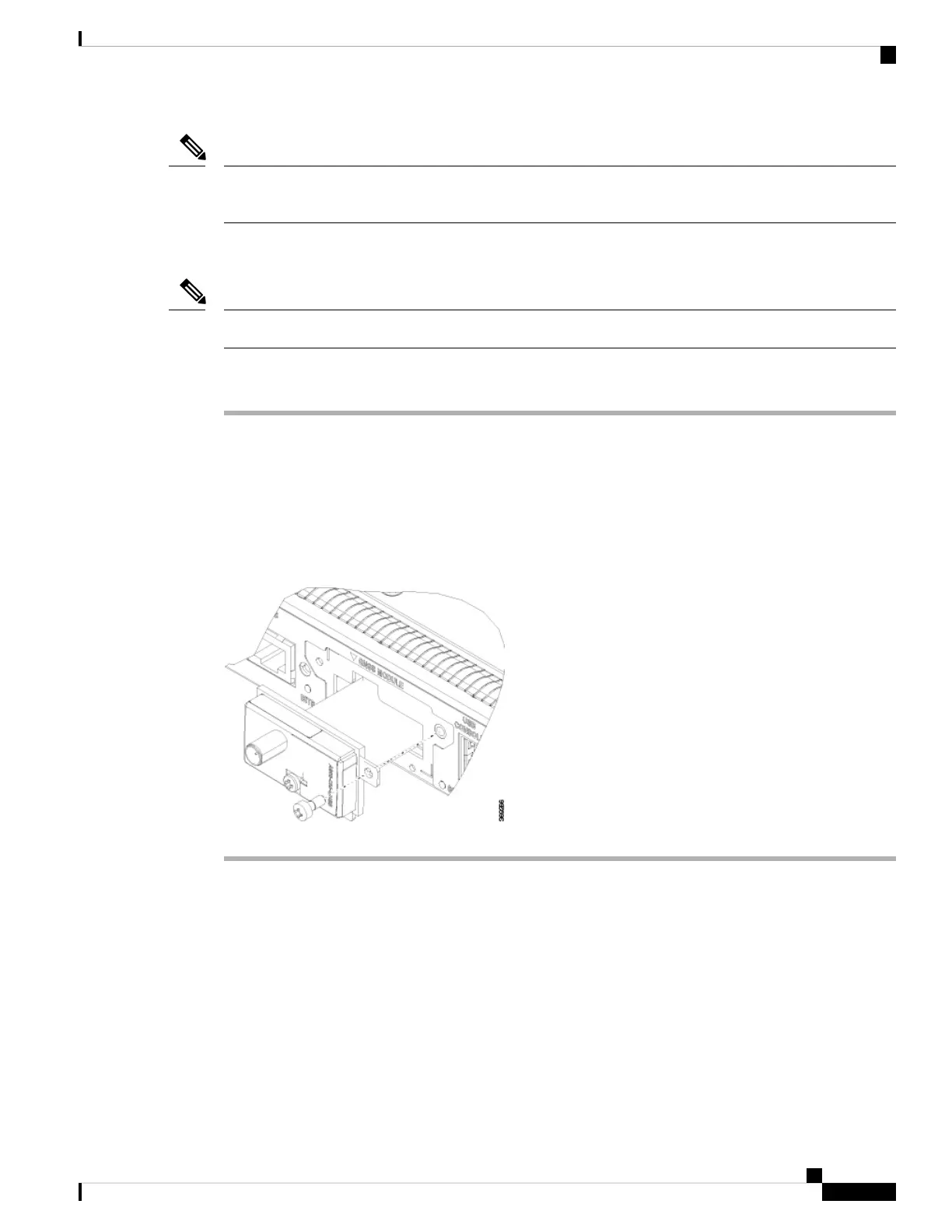

Figure 50: Inserting the GNSS Module in the RSP
Connecting Ethernet Cables
The interface modules support RJ45 or SFP Ethernet ports. For instructions on how to connect cables to
Ethernet SFP ports, see Connecting Cables to SFP Modules.
The RJ45 port supports standard straight-through and crossover Category 5 unshielded twisted-pair (UTP)
cables. Cisco Systems does not supply Category 5 UTP cables; these cables are available commercially.
Cisco NCS 560-4 Router Hardware Installation Guide
103
Installing the Cisco NCS 560-4 Router
Connecting a Cable to the GNSS Antenna Interface
