By default, the display shows all ports and their status. You can change the display mode to show only ports
that are in yellow (YL) state by pressing the DISPLAY button for less than 4 seconds and release. To return
to the default behavior, press and hold the DISPLAY button for more than 5 seconds and release.
Table 17: NCS-57C3 Port Status LED Display
DescriptionLED Display
Port is administratively enabled, link is up.GN
Port is administratively shut down; or port is
administratively enabled, link is down.
YL

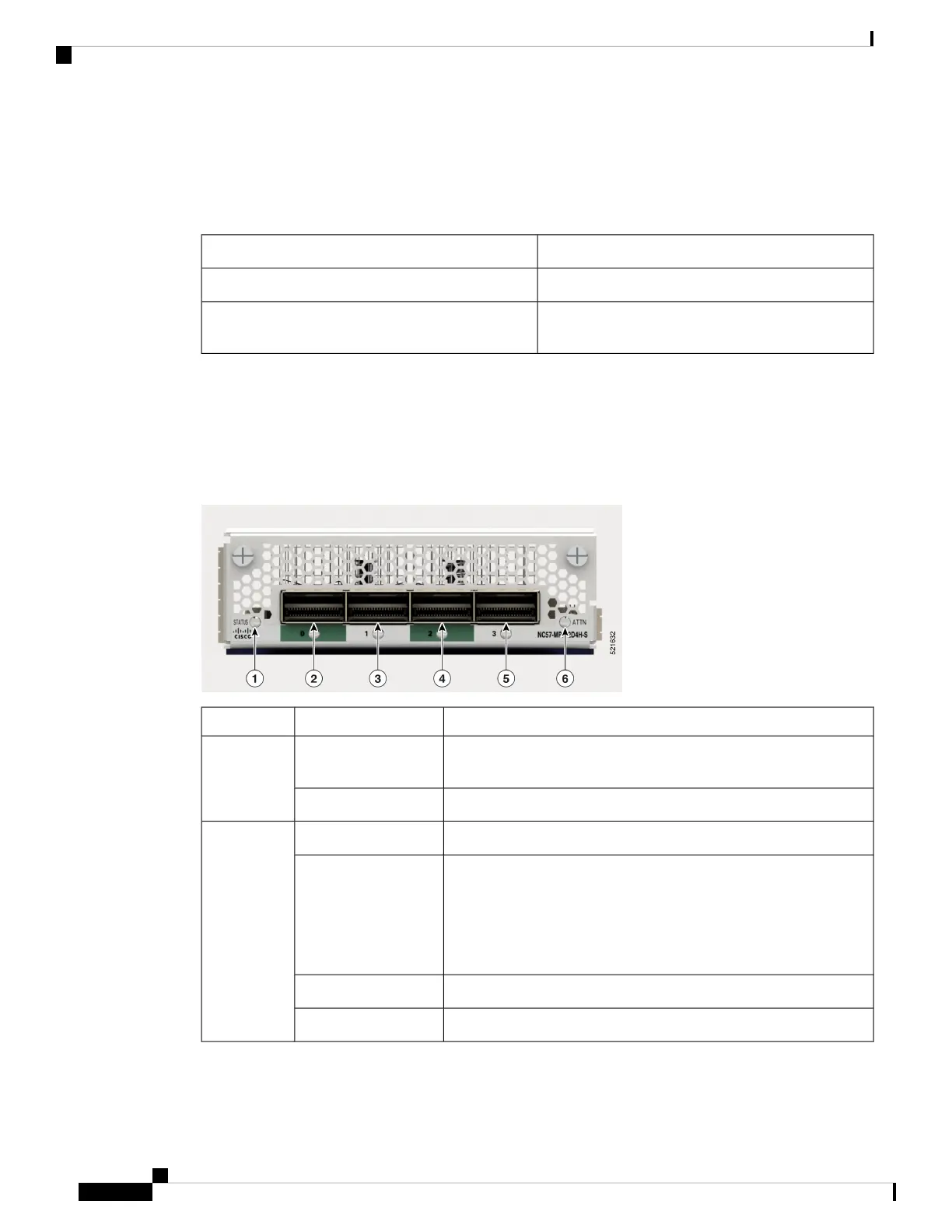

MPA LEDs
The STATUS LED is located on the front left of the MPA and the attention (ATTN) is located on the front
right of the MPA. The Link LED for each port is located either between the two rows of ports (each of these
LEDs is a triangle pointing to the port above or below the LED) or under the port.
StatusColorLED
The operator has activated this LED to identify this MPA in the
chassis.
Flashing blueATTN
This LED is not being used.Off
This MPA is operational.
GreenSTATUS
Either of the following conditions:
• The MPA has detected a slot ID parity error and will not power
on or boot up.
• The MPA is not fully inserted.
Amber
The MPA is booting up or shutting down.Flashing amber
The MPA is powered-off and can now be safely removed.Off
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
106
LEDs
MPA LEDs
