• CONSOLE port
• MGMT ETH port
To comply with GR-1089 intrabuilding, lightning immunity requirements, you must use a foil twisted-pair
(FTP) cable that is properly grounded at both ends.
Caution

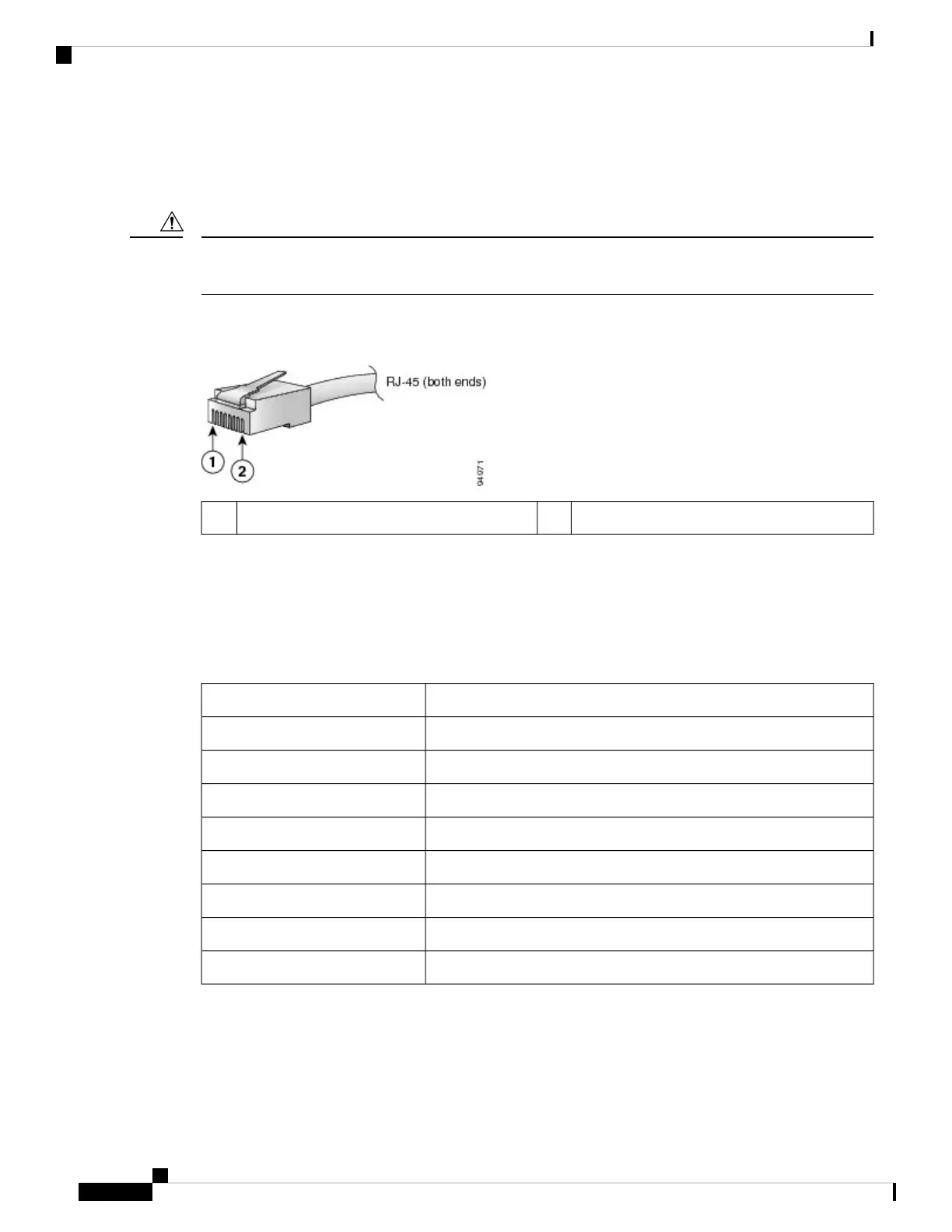

The following figure shows the RJ-45 connector.
Figure 85: RJ-45 Connector
Pin 22Pin 11
Management Pinouts
The following table summarizes the Management Ethernet port pinouts.
Table 20: Management Ethernet Port Pinouts
Signal NamePin
TRP0+1
TRP0-2
TRP1+3
TRP1-4
TRP2+5
TRP2-6
TRP3+7
TRP3-8
Time-of-Day Port Pinouts
The following table summarizes the ToD/1-PPS port pinouts.
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
112
System Specification
Management Pinouts
