Cisco NCS 5700 Series User Manual

Route Processor Card

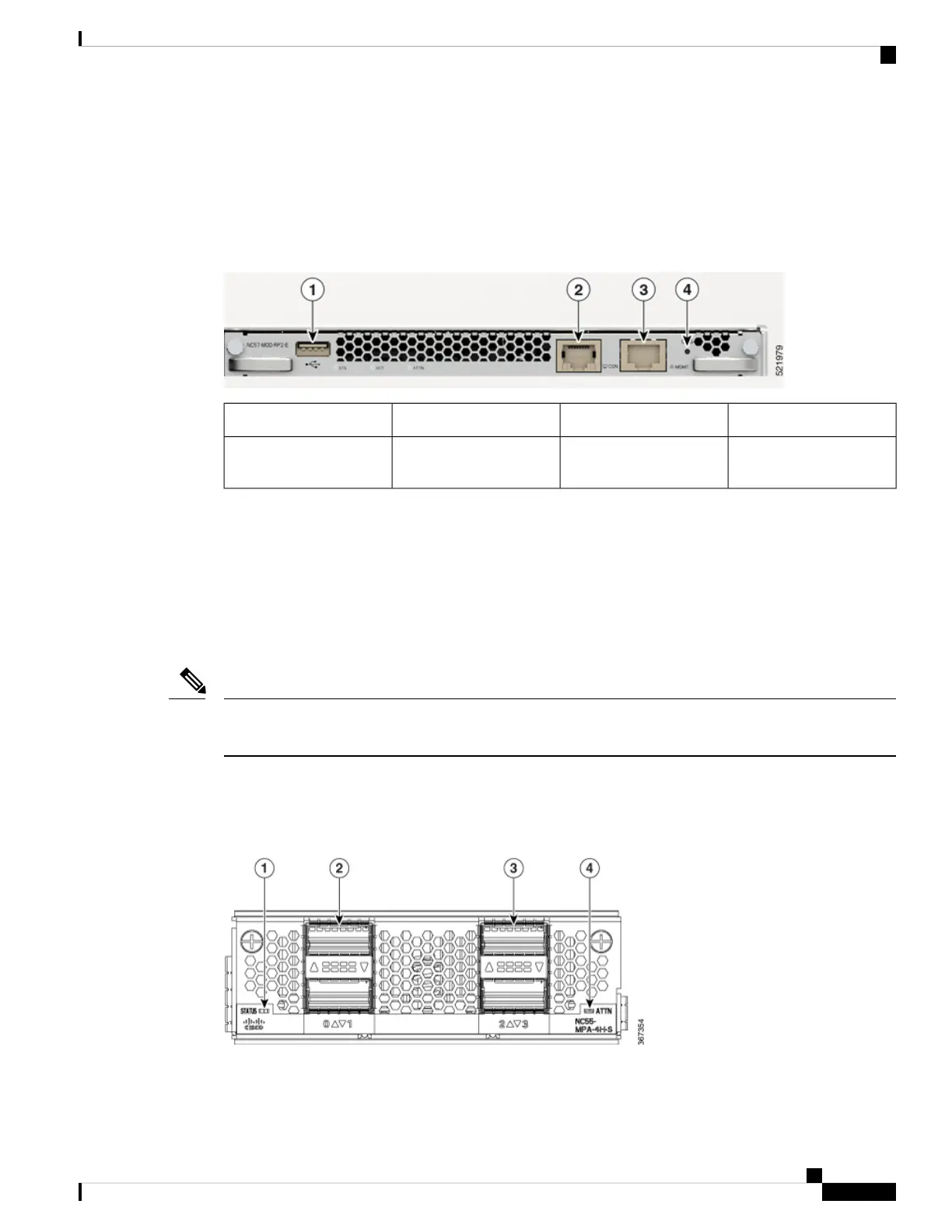

Route processor cards manage all routing operations on the Cisco NCS-57C3-MOD router.
NC57-MOD-RP2-E
Management Ethernet port3USB port1
Recessed reset (ORS)
button
4Console port2
Modular Port Adapters
The modular port adapters (MPAs) are supported in the NCS-57C3-MOD fixed-port routers. Each MPA has
a STATUS and ATTN (attention) LED, and each port on the MPA has an adjacent A/L (Active/Link) LED.
To determine which transceivers and cables are supported by these MPAs, see Cisco Transceiver Modules
Compatibility Information.
Before replacing an MPA card remove the port-range configurations that are applied on that MPA. If not
done, interfaces in the new MPA card will not be available.
Note
4-Port 40GE/100GE MPA with QSFP+/QSFP28
The 4-port 40GE/100GE MPA (NC55-MPA-4H-S) provides 4 ports for 4x25GE (via cable breakout), QSFP+
(40Gbps) or QSFP28 (100Gbps) transceivers.
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
7
NCS 5700 Router Overview
Route Processor Card
