Cisco XR 12000 Series Hardware Installation Guide

2-35
Cisco XR 12000 Series Router SIP and SPA Hardware Installation Guide
OL-17438-04
Chapter 2 Overview: Cisco XR 12000 Series Router Shared Port Adapters
1-Port Channelized STM-16/OC-48 SPA Overview

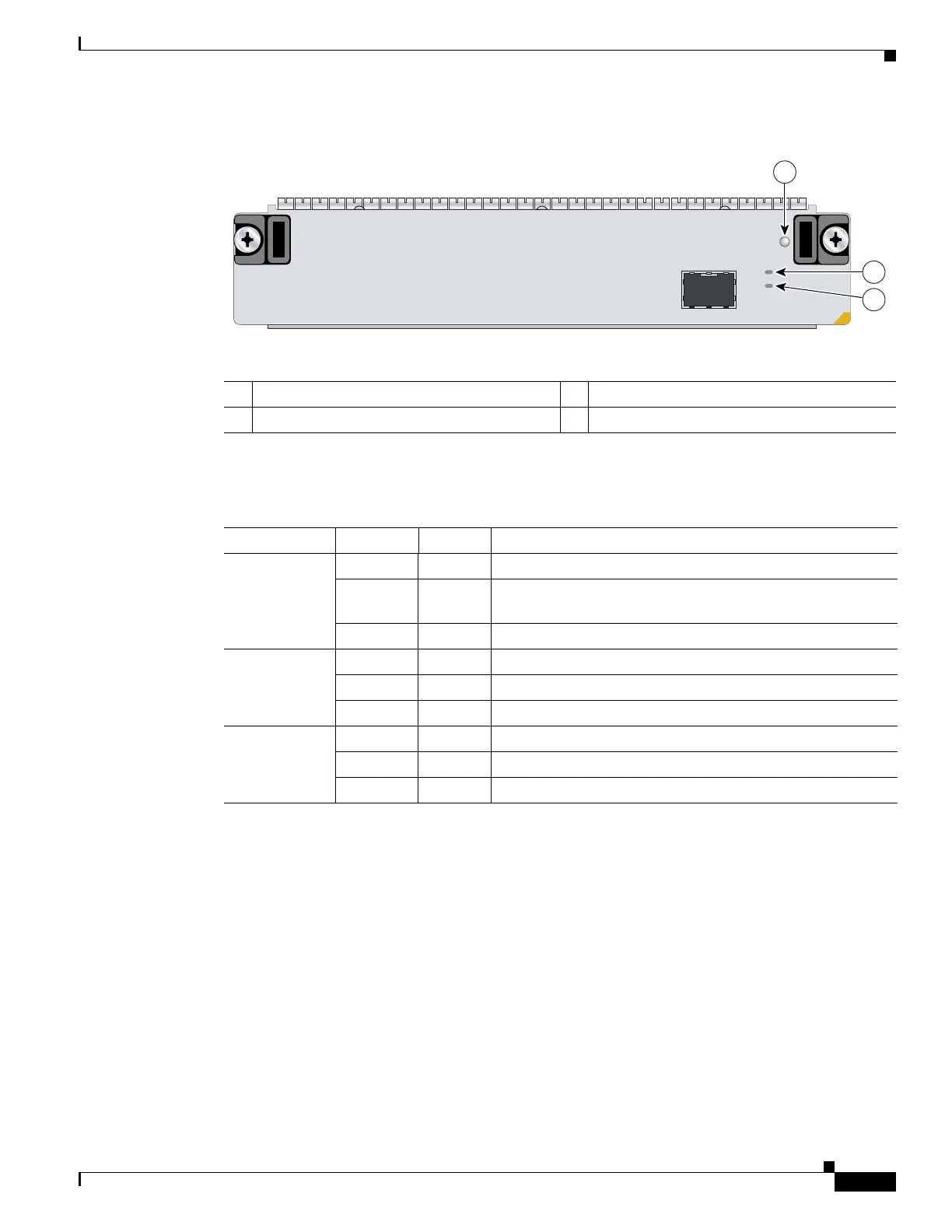

Figure 2-22 1-Port Channelized STM-16/OC-48 SPA Faceplate
The 1-Port Channelized STM-16/OC-48 SPA LEDs are described in Table 2-29.
1-Port Channelized STM-16/OC-48 SPA Interface Specifications
The framer processes incoming and outgoing SONET or SDH frames. The framer operates at
OC-48/STM-16 line rates (2.488 Gbps).
Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol [PPP])
and is mapped into the STS-48/STM-16 frame.
The 1-Port Channelized STM-16/OC-48 SPA interface is compliant with RFC 1619, PPP over
SONET/SDH, and RFC 1662, PPP in HDLC-like Framing. The 1-Port Channelized STM-16/OC-48 SPA
also provides support for SNMP v1 agent (RFC 1155–1157), and Management Information Base (MIB)
II (RFC 1213).
1 C/A (Carrier/Alarm) LED 3 STATUS LED
2 A/L (Active Loopback) LED
SPA-1XCHOC48/DS3
SU
TA
T
S
A
/
C
L
/
A
280920
2
3
1
Table 2-29 1-Port Channelized STM-16/OC-48 SPA LEDs
LED Label Color State Meaning
C/A Off Off Port is not enabled by software.
Green On Port is enabled by software, and there is a valid T3 signal
without any alarms.
Amber On Port is enabled by software, and there is at least one alarm.
A/L Off Off Port is not enabled by software.
Green On Port is enabled by software, loopback is off.
Amber On Port is enabled by software, loopback is on.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and SPA is being configured.
