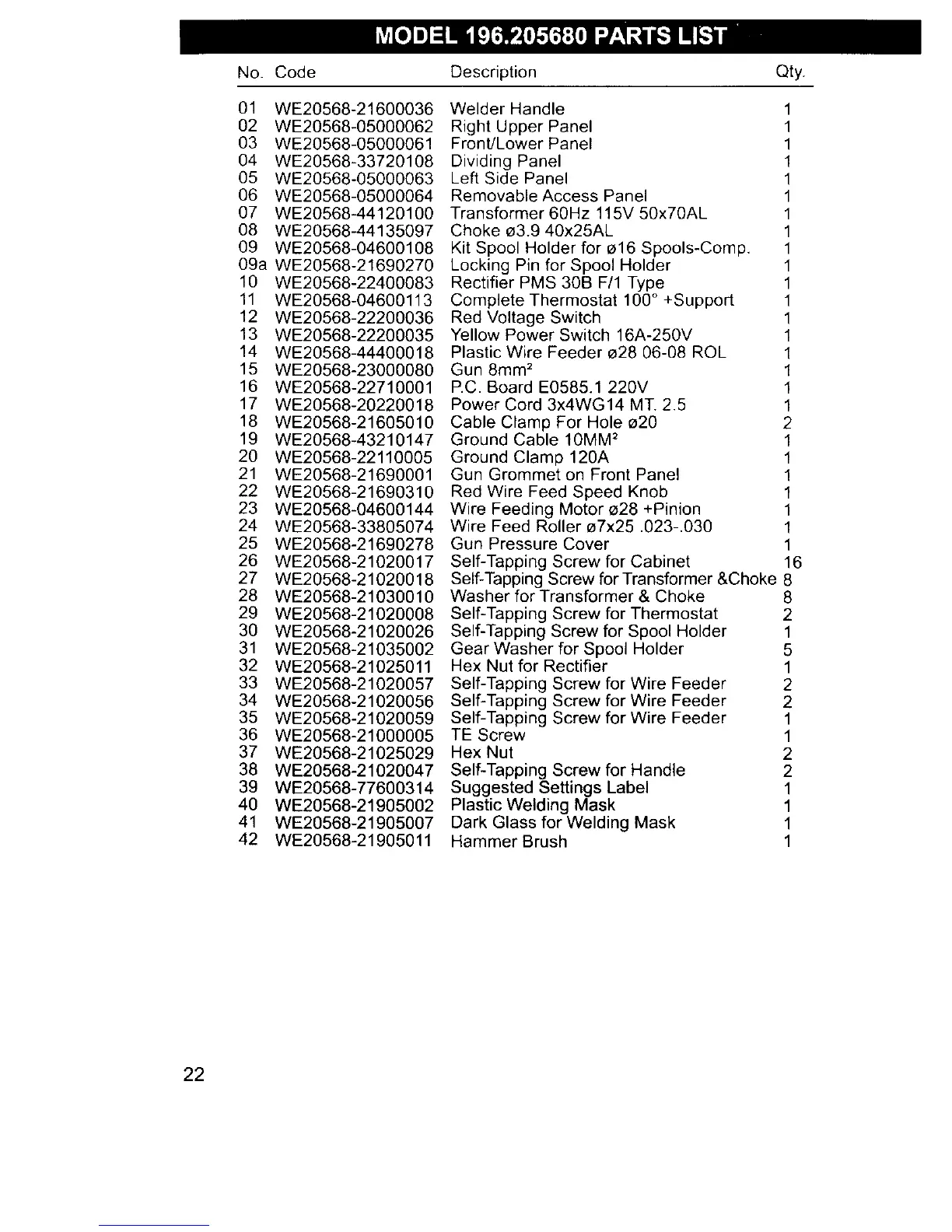

Craftsman 196.205680 User Manual

No. Code Description Qty.
01 WE20568-21600036
02 WE20568-05000062
03 WE20568-05000061
04 WE20568-33720108
05 WE20568-05000063
06 WE20568-05000064
07 WE20568-44120100
08 WE20568-44135097
09 WE20568-04600108
09a WE20568-21690270
10 WE20568-22400083
11 WE20568-04600113
12 WE20568-22200036
13 WE20568-22200035
14 WE20568-44400018
15 WE20568-23000080
16 WE20568-22710001
17 WE20568-20220018
18 WE20568-21605010
19 WE20568-43210147
20 WE20568-22110005
21 WE20568-21690001
22 WE20568-21690310
23 WE20568-04600144
24 WE20568-33805074
25 WE20568-21690278
26 WE20568-21020017
27 WE20568-21020018
28 WE20568-21030010
29 WE20568-21020008
30 WE20568-21020026
31 WE20568-21035002
32 WE20568-21025011
33 WE20568-21020057
34 WE20568-21020056
35 WE20568-21020059
36 WE20568-21000005
37 WE20568-21025029
38 WE20568-21020047
39 WE20568-77600314
40 WE20568-21905002
41 WE20568-21905007
42 WE20568-21905011
Welder Handle 1
Right Upper Panel 1
FronVLower Panel 1
Dividing Panel 1
Left Side Panel 1
Removable Access Panel 1
Transformer 60Hz 115V 50x70AL 1
Choke _3.9 40x25AL 1
Kit Spool Holder for _16 Spools-Comp. 1
Locking Pin for Spool Holder 1
Rectifier PMS 30B F/1 Type 1
Complete Thermostat 100 ° +Support 1
Red Voltage Switch 1
Yellow Power Switch 16A-250V 1
Plastic Wire Feeder _28 06-08 ROL 1
Gun 8mm 2 1
EC. Board E0585.1 220V 1
Power Cord 3x4WG14 MT. 2.5 1
Cable Clamp For Hole 020 2
Ground Cable 10MM 2 1
Ground Clamp 120A 1
Gun Grommet on Front Panel 1
Red Wire Feed Speed Knob 1
Wire Feeding Motor _28 +Pinion 1
Wire Feed Roller _7x25.023-.030 1
Gun Pressure Cover 1
Self-Tapping Screw for Cabinet 16
Self-Tapping Screw for Transformer &Choke 8
Washer for Transformer & Choke 8
Self-Tapping Screw for Thermostat 2
Self-Tapping Screw for Spool Holder 1
Gear Washer for Spool Holder 5
Hex Nut for Rectifier 1
Self-Tapping Screw for Wire Feeder 2
Self-Tapping Screw for Wire Feeder 2
Self-Tapping Screw for Wire Feeder 1
TE Screw 1
Hex Nut 2
Self-Tapping Screw for Handle 2
Suggested Settings Label 1
Plastic Welding Mask 1
Dark Glass for Welding Mask 1
Hammer Brush 1
