D-Link DAP-1620 User Manual

DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Telnet/SSH
On the System / Telnet/SSH page, you can enable or disable access to the device settings via
TELNET and/or SSH from your LAN. By default, access is disabled.

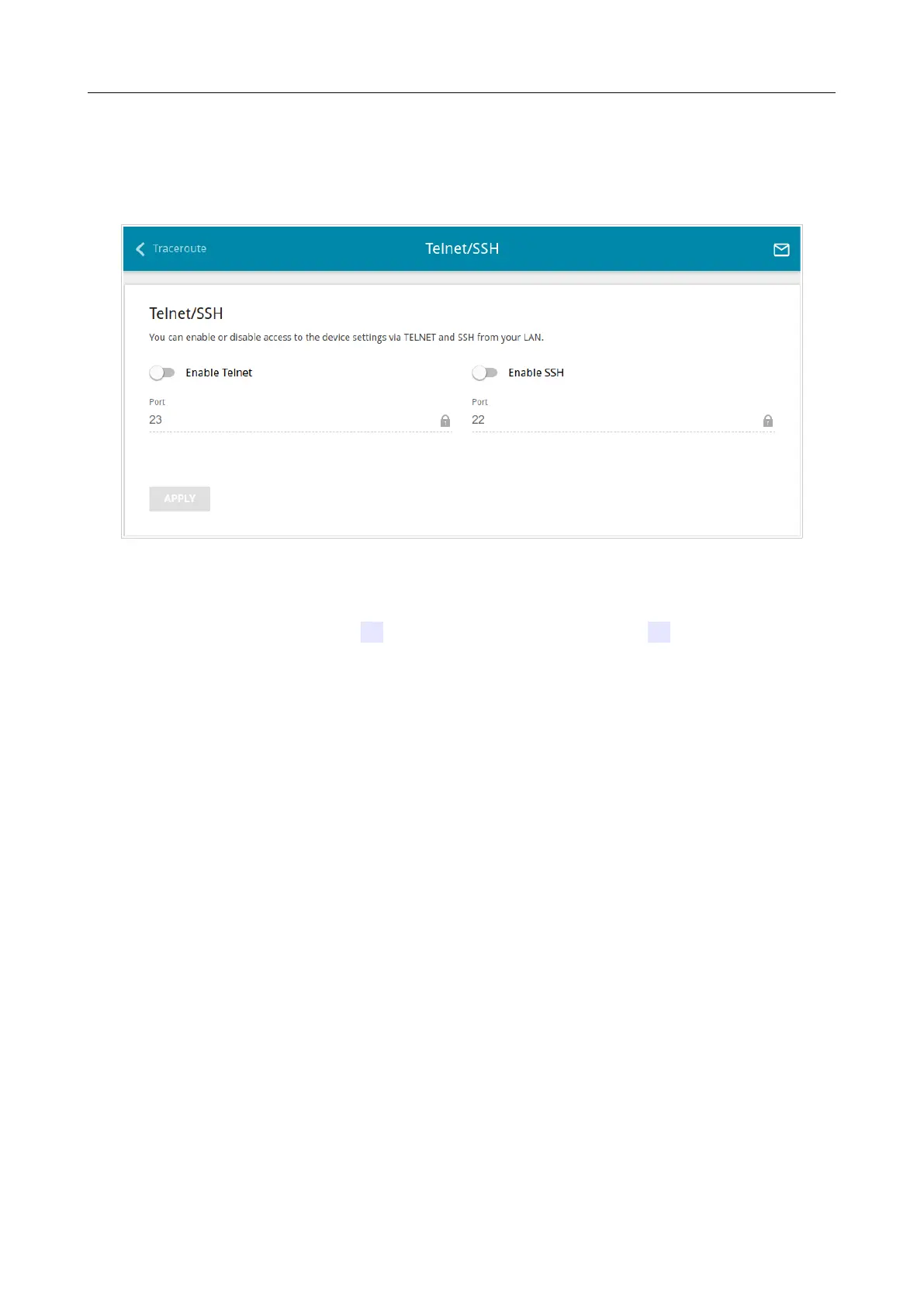

Figure 86. The System / Telnet/SSH page.
To enable access via TELNET and/or SSH, move the Enable Telnet switch and/or Enable SSH
switch to the right. In the Port field, enter the number of the extender's port through which access
will be allowed (by default, the port 23 is specified for Telnet and the port 22 is specified for SSH).
Then click the APPLY button.
To disable access via TELNET and/or SSH again, move the Enable Telnet switch and/or Enable
SSH switch to the left and click the APPLY button.
Page 116 of 125

D-Link DAP-1620 Specifications

General

Type	Network repeater
WPS push button	Yes
Maximum transfer distance	- m
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Wi-Fi data rate (max)	1200 Mbit/s
Certification	FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified
Product color	White
Ethernet LAN (RJ-45) ports	1
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Package depth	161 mm
Package width	104 mm
Package height	94 mm
Package weight	300 g
Pallet width	1100 mm
Pallet height (air)	1479 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	267630 g
Pallet gross weight (sea)	371900 g
Quantity per pallet (air)	700 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Shipping (inner) case width	229 mm
Shipping (inner) case height	192 mm
Shipping (inner) case length	497 mm
Shipping (inner) case weight	3459 g
Shipping (inner) case net weight	3000 g
Number of cartons per pallet (air)	70 pc(s)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	59 mm
Width	120 mm
Height	42 mm
Weight	139 g
