DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
Statistics
The pages of this section display data on the current state of the extender:
• network statistics
• IP addresses leased by the DHCP server
• data on devices connected to the extender's network and its web-based interface, and
information on current sessions of these devices
• statistics for traffic passing through the port of the extender
• addresses of active multicast groups.
Network Statistics
On the Statistics / Network Statistics page, you can view statistics for all connections existing
in the system (LAN, WLAN). For each connection the following data are displayed: name and state
(when the connection is on, its name is highlighted in green, when the connection is off, its name is
highlighted in red), IP address and subnet mask, gateway (if the connection is established), and
volume of data received and transmitted (with increase of the volume the units of measurement are
changed automatically: byte, Kbyte, Mbyte, Gbyte).

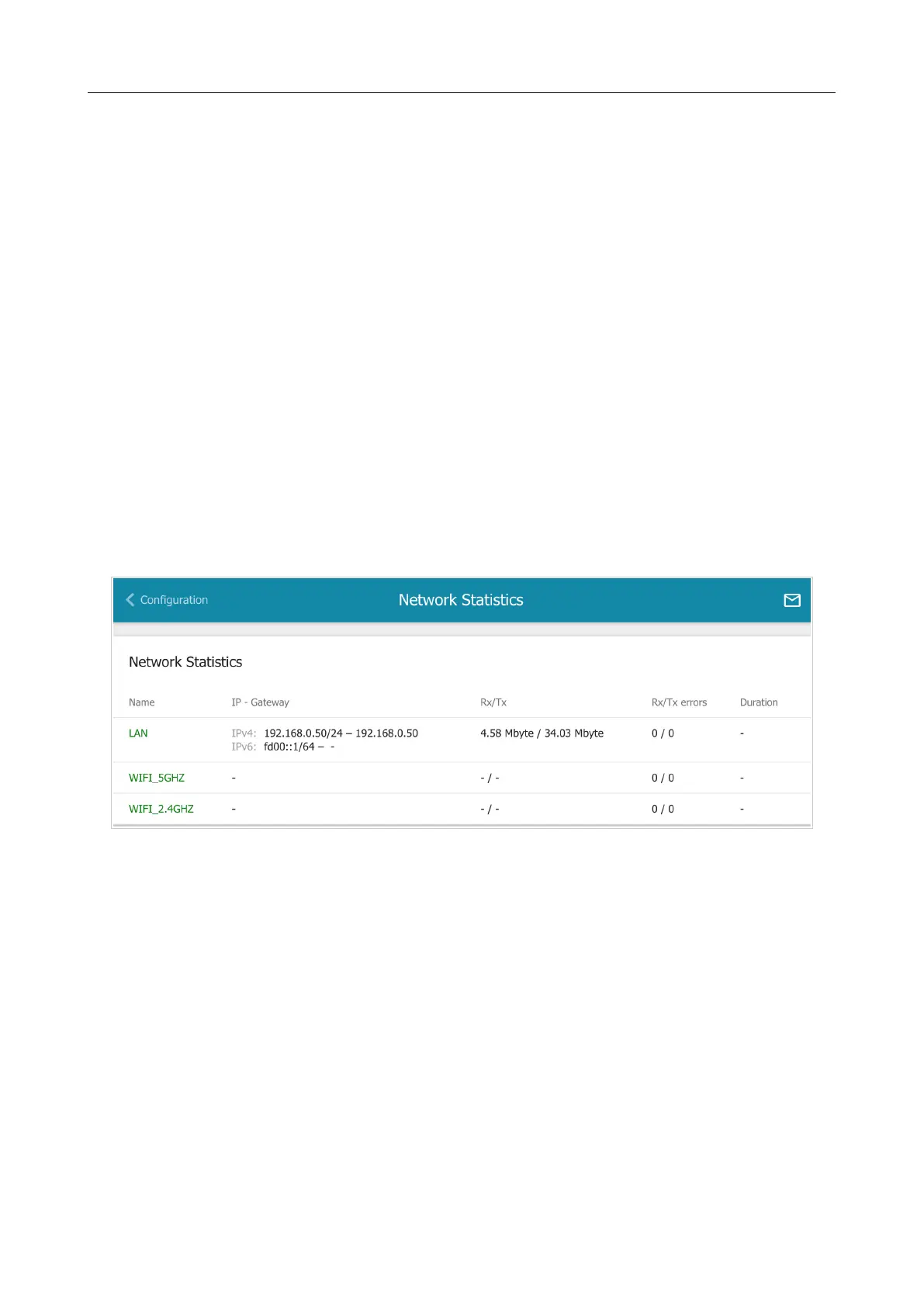

Figure 39. The Statistics / Network Statistics page.
To view detailed data on a connection, click the line corresponding to this connection.
