D-Link DAP-1620 User Manual

DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
System Time
On the System / System Time page, you can manually set the time and date of the extender or
configure automatic synchronization of the system time with a time server on the Internet.

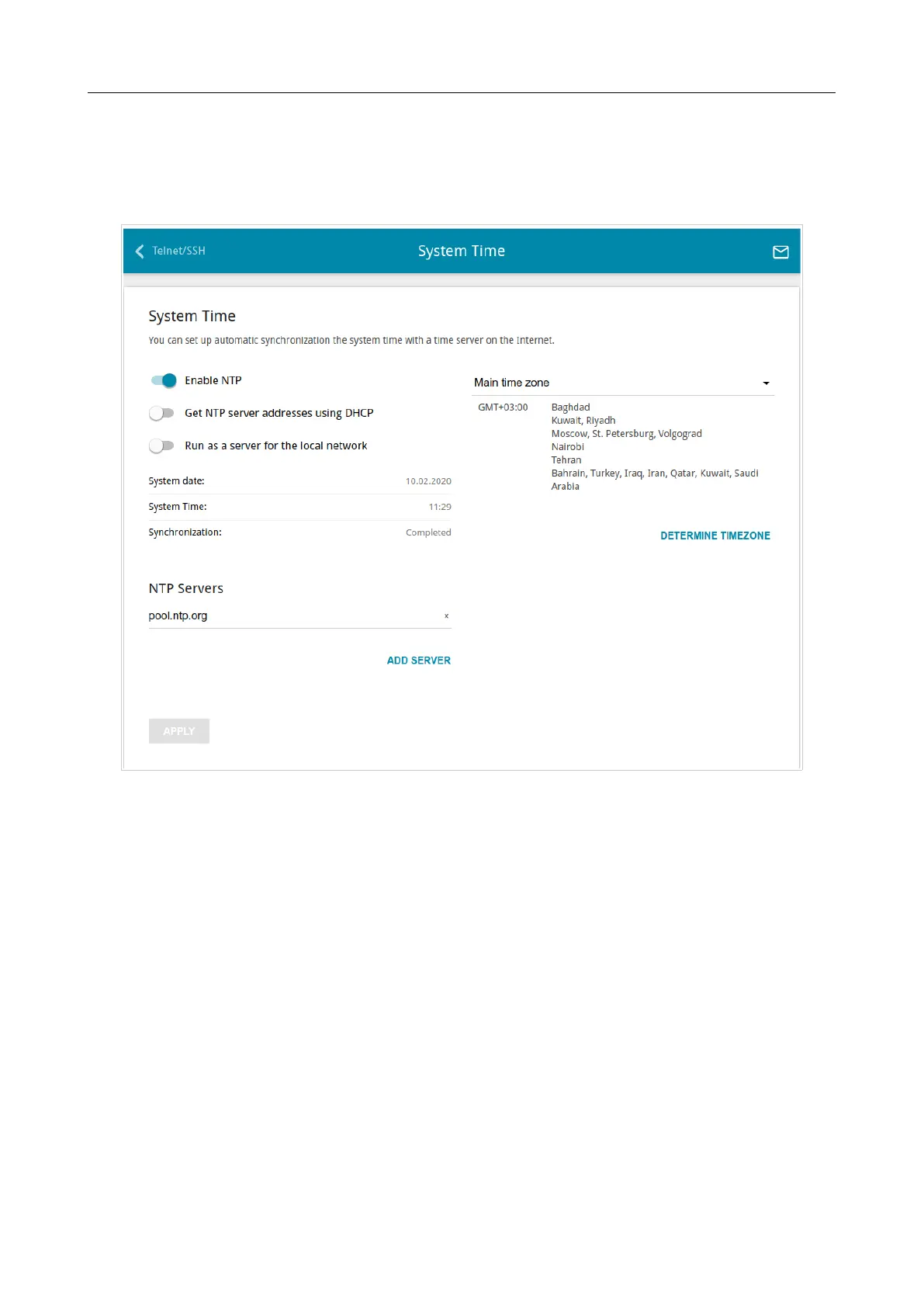

Figure 87. The System / System Time page.
To set the system time manually, follow the next steps:
1. Move the Enable NTP switch to the left.
2. In the Time Settings section, specify needed values. To specify the time set up your PC or
portable device, click the SET LOCAL TIME button.
3. Click the APPLY button. The System date and System time fields will be filled in
automatically.
To enable automatic synchronization with a time server, follow the next steps:
1. Move the Enable NTP switch to the right.
2. Specify the needed NTP server or leave the value specified by default in the NTP Servers
section. If you need to specify several servers, click the ADD SERVER button.
3. Select your time zone from the Main time zone drop-down list. To set the time zone in
accordance with the settings of your operating system or portable device, click the
DETERMINE TIMEZONE button.
4. Click the APPLY button. The System date and System time fields will be filled in
automatically.
Page 117 of 125

D-Link DAP-1620 Specifications

General

Type	Network repeater
WPS push button	Yes
Maximum transfer distance	- m
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Wi-Fi data rate (max)	1200 Mbit/s
Certification	FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified
Product color	White
Ethernet LAN (RJ-45) ports	1
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Package depth	161 mm
Package width	104 mm
Package height	94 mm
Package weight	300 g
Pallet width	1100 mm
Pallet height (air)	1479 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	267630 g
Pallet gross weight (sea)	371900 g
Quantity per pallet (air)	700 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Shipping (inner) case width	229 mm
Shipping (inner) case height	192 mm
Shipping (inner) case length	497 mm
Shipping (inner) case weight	3459 g
Shipping (inner) case net weight	3000 g
Number of cartons per pallet (air)	70 pc(s)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	59 mm
Width	120 mm
Height	42 mm
Weight	139 g
