D-Link DAP-1620 User Manual

DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
DNS
On the Advanced / DNS page, you can add
10
DNS servers to be used by the LAN clients.

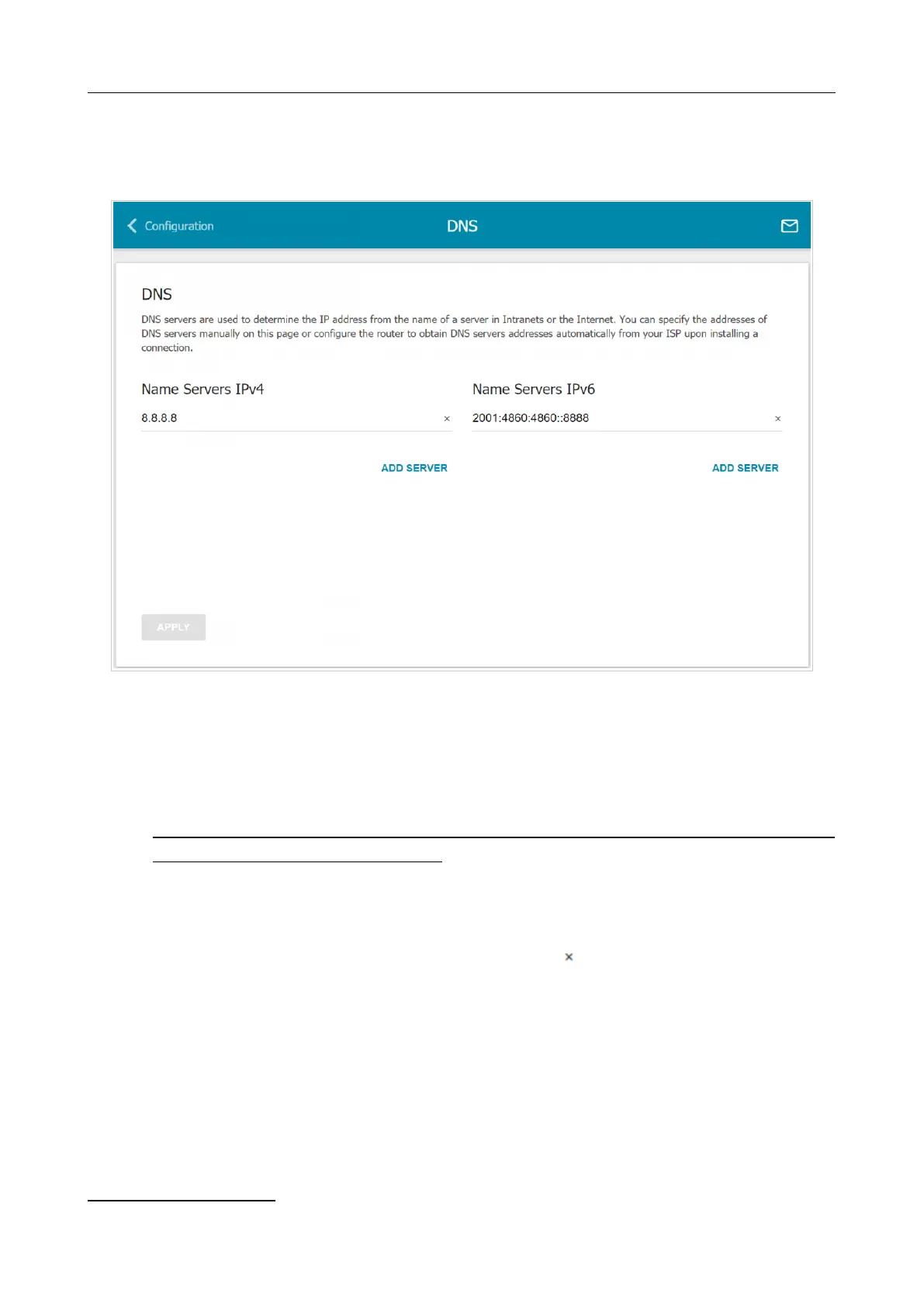

Figure 70. The Advanced / DNS page.
DNS servers are used to determine the IP address from the name of a server in Intranets or the
Internet (as a rule, they are specified by an ISP or assigned by a network administrator).
You can specify the addresses of DNS servers manually on this page or configure the extender to
obtain DNS servers addresses automatically from your ISP upon installing a connection.
!
When you use the built-in DHCP server, the network parameters (including DNS servers)
are distributed to clients automatically.
Specify needed settings for IPv4 in the Name Servers IPv4 section and for IPv6 in the Name
Servers IPv6 section.
To remove a DNS server from the page, click the Delete icon ( ) in the line of the address.
When all needed settings are configured, click the APPLY button.
10 Correct operation of the page will be implemented in the next firmware version.
Page 94 of 125

D-Link DAP-1620 Specifications

General

Type	Network repeater
WPS push button	Yes
Maximum transfer distance	- m
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPA, WPA2, WPS
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Wi-Fi data rate (max)	1200 Mbit/s
Certification	FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified
Product color	White
Ethernet LAN (RJ-45) ports	1
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Antennas quantity	2
Package depth	161 mm
Package width	104 mm
Package height	94 mm
Package weight	300 g
Pallet width	1100 mm
Pallet height (air)	1479 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	267630 g
Pallet gross weight (sea)	371900 g
Quantity per pallet (air)	700 pc(s)
Quantity per pallet (sea)	1000 pc(s)
Shipping (inner) case width	229 mm
Shipping (inner) case height	192 mm
Shipping (inner) case length	497 mm
Shipping (inner) case weight	3459 g
Shipping (inner) case net weight	3000 g
Number of cartons per pallet (air)	70 pc(s)
Number of cartons per pallet (sea)	100 pc(s)
Quantity per shipping (inner) case	10 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	59 mm
Width	120 mm
Height	42 mm
Weight	139 g
