DAP-1620 AC1300 MU-MIMO Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
MAC Filter
On the Advanced / MAC Filter page, you can configure MAC-address-based filtering for
computers of the extender's LAN.

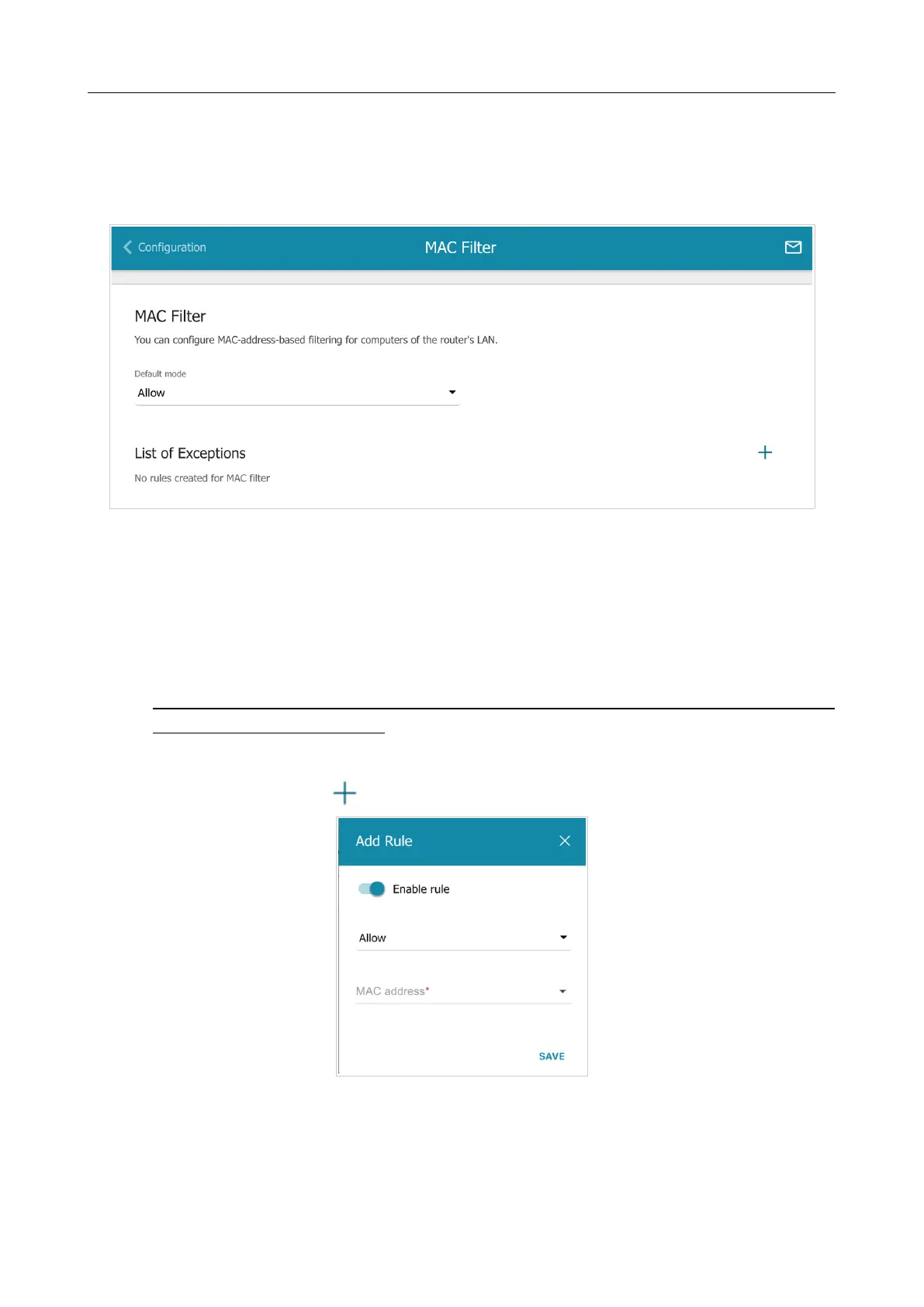

Figure 73. The Advanced / MAC Filter page.
Select the needed action from the drop-down list in the Default mode section to configure
filtering for all devices of the extender's network:
• Allow: Allows access to the extender's network and to the Internet for devices (the value is
specified by default);
• Deny: Blocks access to the extender's network for devices.
!
You can use the Deny mode only if an active rule which allows access to the device's
network is created on the page.
To create a rule (specify a MAC address of a device for which the specified filtering mode will be
applied), click the ADD button ( ).
Figure 74. The window for adding a rule for the MAC filter.
Page 98 of 125
