DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Device Information

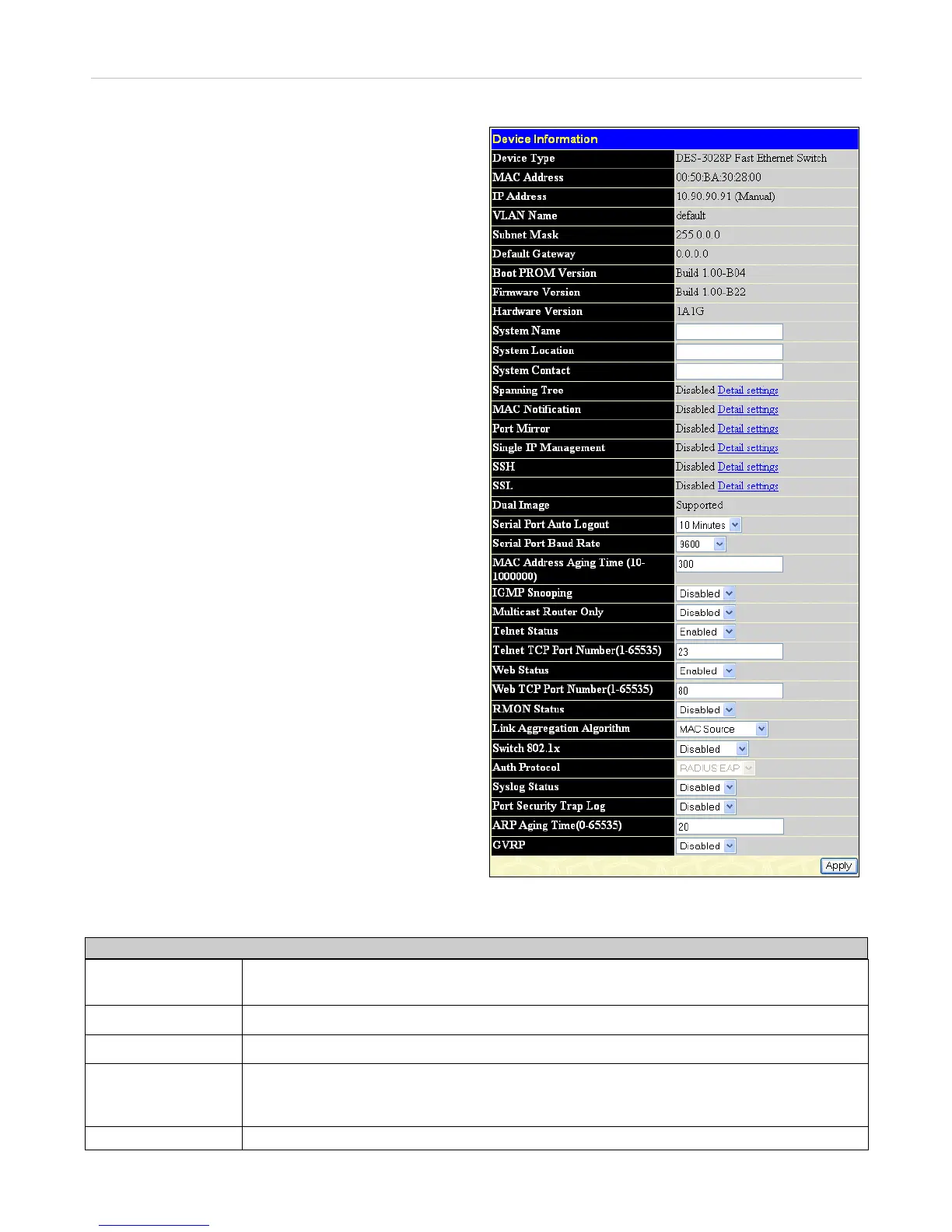

Figure 6- 1. Device Information window
The fields that can be configured are described below:
Parameter Description
System Name Enter a system name for the Switch, if so desired. This name will identify it in the Switch
network.
System Location
Enter the location of the Switch, if so desired.
System Contact
Enter a contact name for the Switch, if so desired.
Serial Port Auto
Logout Time
Select the logout time used for the console interface. This automatically logs the user out after
an idle period of time, as defined. Choose from the following options: 2 Minutes, 5 Minutes, 10
Minutes, 15 Minutes or Never. The default setting is 10 minutes.
Serial Port Baud
This field s
ecifies the baud rate for the serial
ort on the Switch. there are four
ossible baud
This window contains the main settings for all major functions
for the Switch and appears automatically when you log on. To
return to the Device Information window, click the DES-
30xx Web Management Tool folder. The Device
Information window shows the Switch’s MAC Address
(assigned by the factory and unchangeable), the Boot PROM,
Firmware Version, and Hardware Version. This
information is helpful to keep track of PROM and firmware
updates and to obtain the Switch's MAC address for entry into
another network device's address table, if necessary. The use
may also enter a System Name, System Location an
System Contact to aid in defining the Switch, to the user's
preference. In addition, this window displays the status o
functions on the Switch to quickly assess their current global
status. Some functions are hyper-linked to their configuratio
window for easy access from the Device Information
window.
22
