DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
will have no entry in this field.
MAC Address
Displays the MAC address of the corresponding Switch.
Model Name
Displays the full model name of the corresponding Switch.

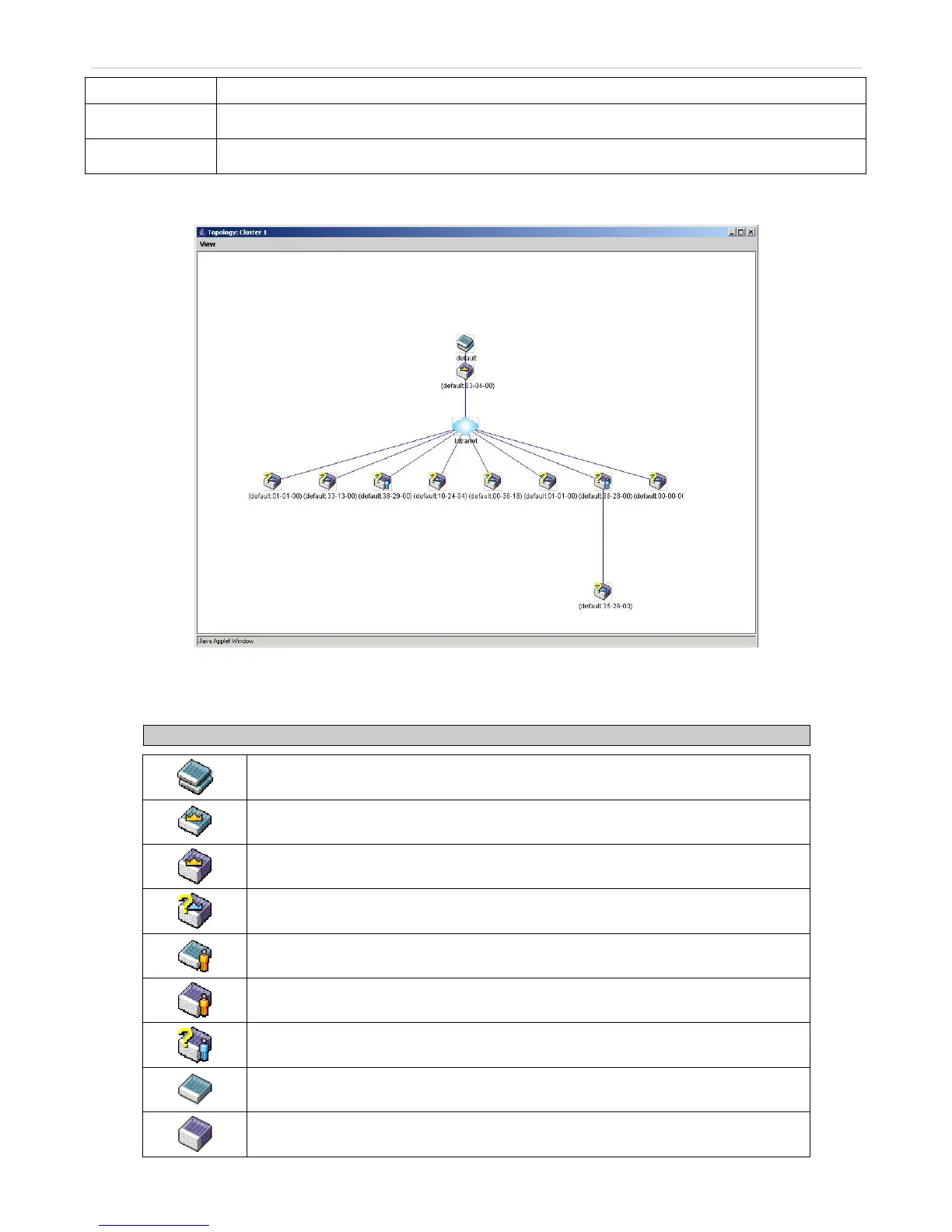

To view the Topology Map, click the View menu in the toolbar and then Topology, which will produce the following window.
The Topology View will refresh itself periodically (20 seconds by default).
Figure 6- 46. Topology view
This window will display how the devices within the Single IP Management Group are connected to other groups and devices.
Possible icons in this screen are as follows:
Icon Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
Layer 2 member switch.
Layer 3 member switch
Member switch of other group
Layer 2 candidate switch
Layer 3 candidate switch
64
