DES-3028 DES-3028P DES-3052 DES-3052P Layer 2 Fast Ethernet Managed Switch
Link Aggregation

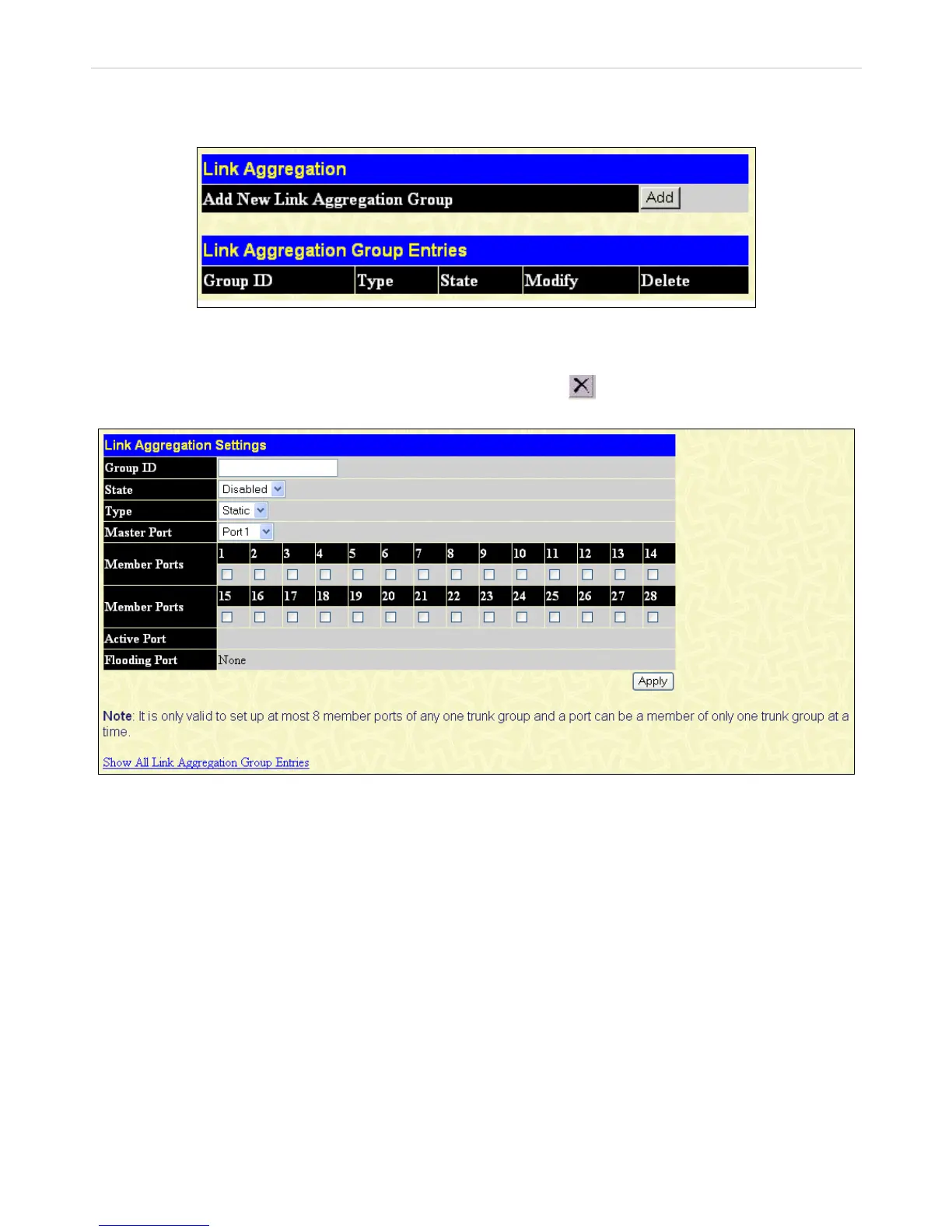

To configure port trunking, click L2 Features > Trunking > Link Aggregation to bring up the following window:
Figure 7- 9. Link Aggregation window
To configure port trunk groups, click the Add button to add a new trunk group and use the Port Trunking Configuration menu
(see example below) to set up trunk groups. To modify a port trunk group, click the hyperlinked group number corresponding to
the entry you wish to alter. To delete a port trunk group, click the corresponding
under the Delete heading in the Link
Aggregation Group Entries table (at the bottom of the Link Aggregation window).
Figure 7- 10. Link Aggregation Settings window – Add
LACP Port Settings
To configure Link Aggregation Control Protocol port trunking, click L2 Features > Trunking > LACP Port Settings to bring
up the Port Link Aggregation Group table:
84
