D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
IGMP
On the Advanced / IGMP page, you can enable IGMP for the router.
IGMP is used for managing multicast traffic (transferring data to a group of destinations). This
protocol allows using network resources for some applications, e.g., for streaming video, more
efficiently.

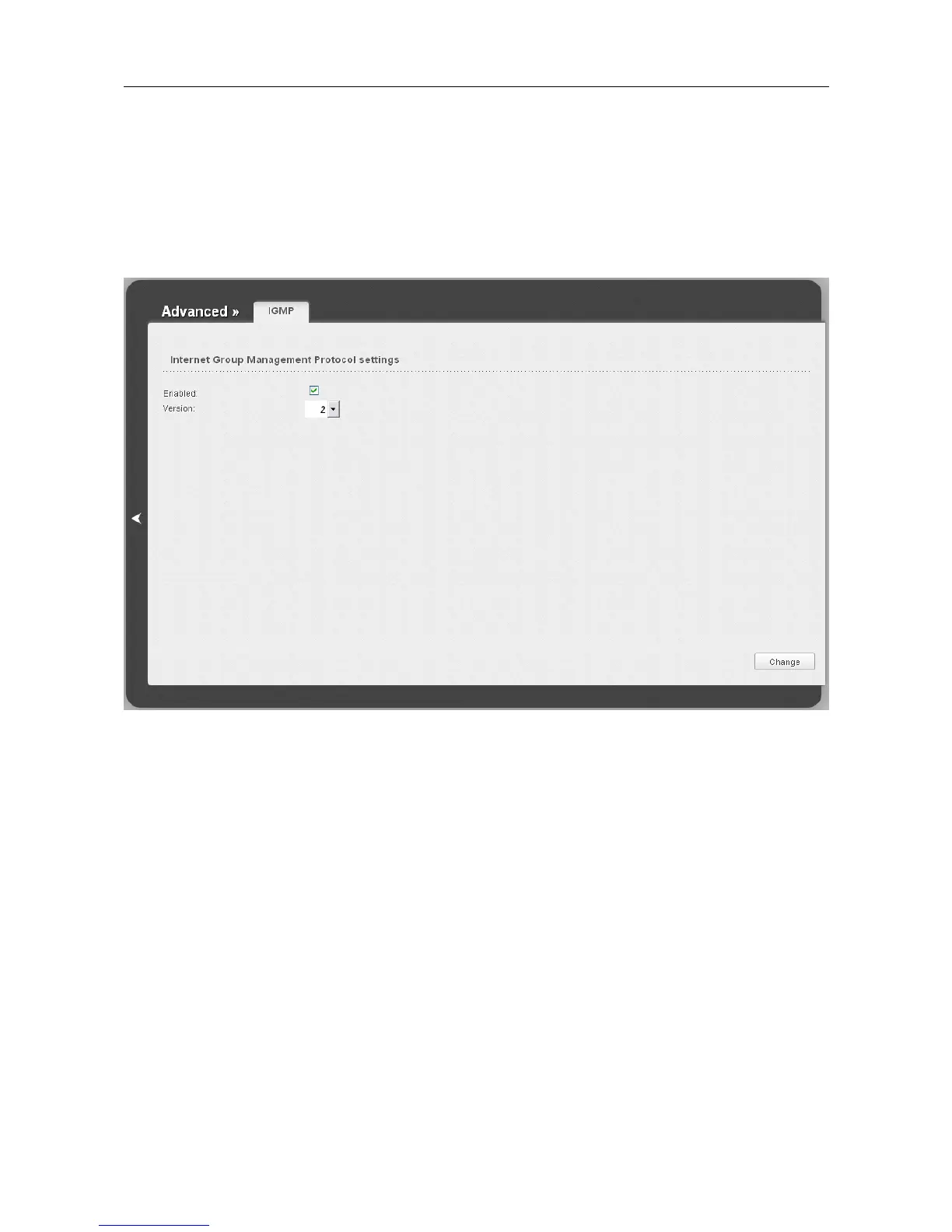

Figure 109. The Advanced / IGMP page.
To enable IGMP, select the Enabled checkbox. From the Version drop-down list, select a version
of IGMP. Then click the Change button. Such a setting allows using the IGMP Proxy function for
all WAN connections for which the Enable IGMP Multicast checkbox is selected.
To disable IGMP, deselect the Enabled checkbox and click the Change button.
Page 142 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
