DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Configuring IPTV
On the page, you can configure the router to use an IPTV set-top box.

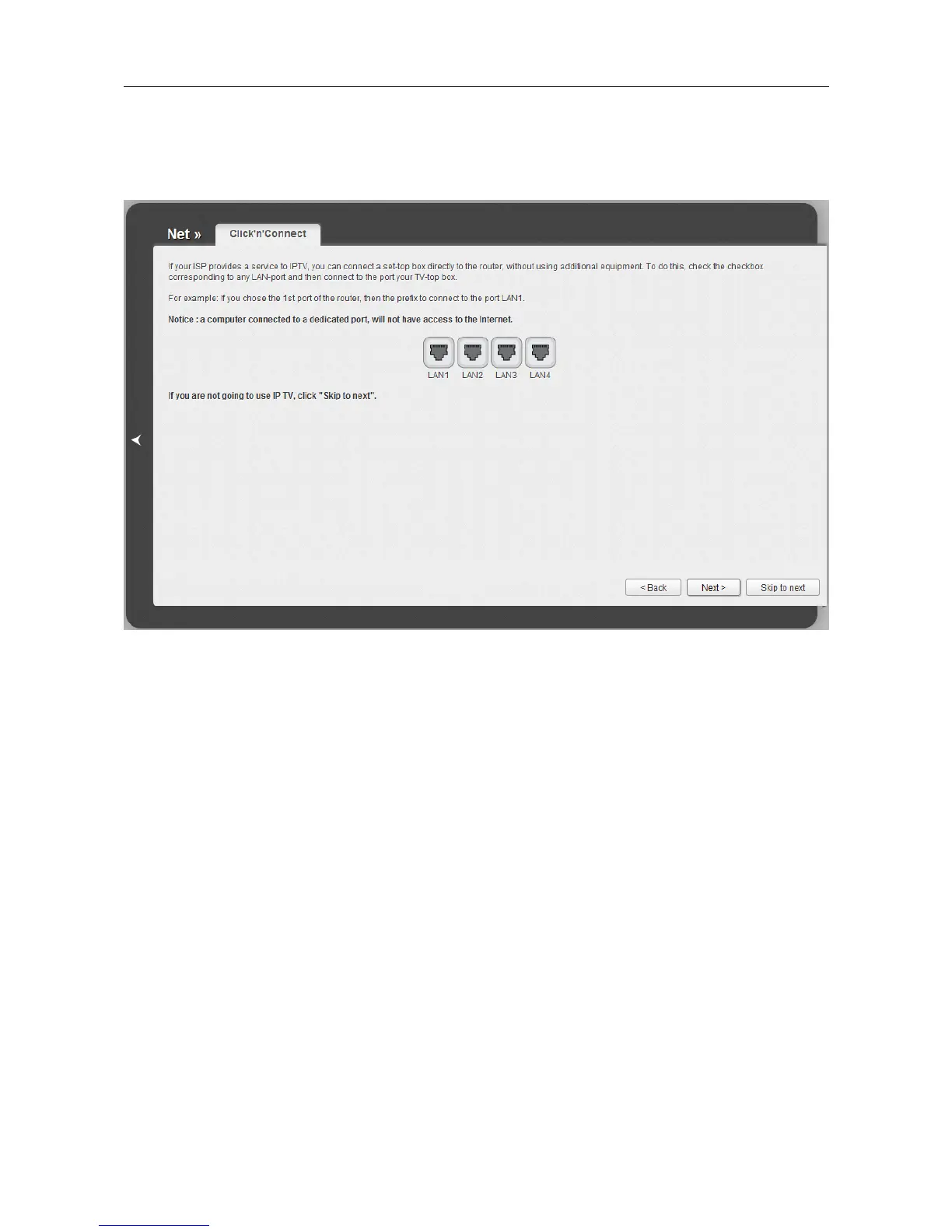

Figure 56. Selecting a LAN port to connect an IPTV set-top box.
On the opened page, select the LAN port of the router to which you will connect your IPTV set-top
box.
If in the future you need to disconnect your IPTV set-top box from the specified LAN port and
connect to it a computer, start the IPTV settings wizard (for the detailed description of the
Wizard, see the IPTV Setup Wizard section, page 80).
If for accessing the Internet and IPTV services your ISP uses virtual local area networks with
identifiers (VLAN ID), to configure access to the IPTV service, proceed to the Advanced / VLAN
page, create a group of ports with the required value of the VLAN ID parameter, Transparent
type, and the port to which the set-top box will be connected (see the VLAN section, page 131, for a
detailed description of the elements from the page).
Click the Back button to specify other settings for your wireless network.
Click the Next button to continue.
Click the Skip to next button in order not to apply the IPTV settings.
On the opened page, click the Back button to specify other settings for configuring the router to
use an IPTV set-top box.
Click the Save button to save the specified settings.
After clicking the Save button, the quick settings page opens.
Page 72 of 170
