D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Installation and Connection
Configuring Wi-Fi Adapter in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. Select the icon of the wireless network connection and make sure that your Wi-Fi adapter is
on.

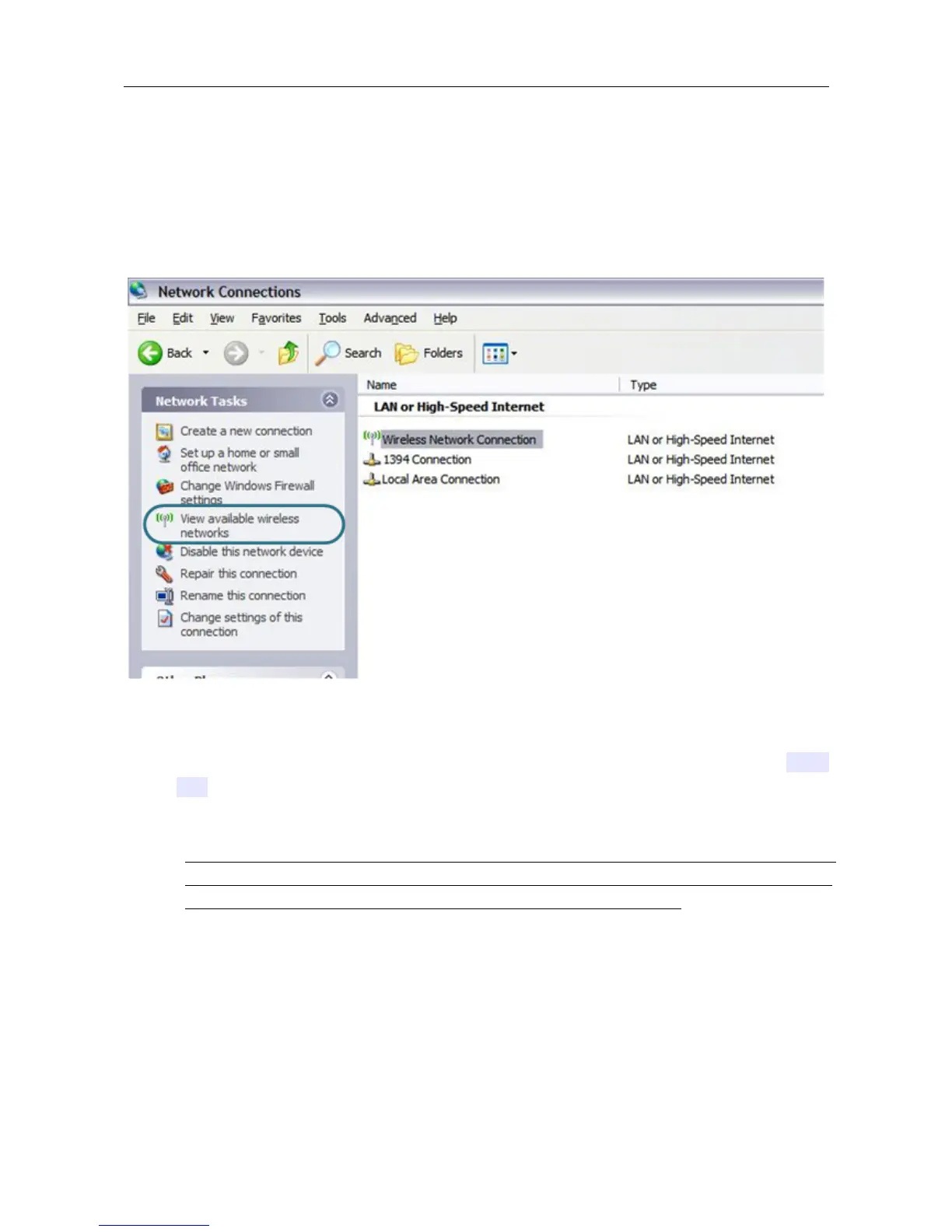

Figure 12. The Network Connections window.
3. Search for available wireless networks.
4. In the opened Wireless Network Connection window, select the wireless network DIR-
300 and click the Connect button.
After that the Wireless Network Connection Status window appears.
!
If you perform initial configuration of the router via Wi-Fi connection, note that
immediately after changing the wireless default settings of the router you will need to
reconfigure the wireless connection using the newly specified settings.
Page 26 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
