D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Flow Control
On the Advanced / Flow Control page, you can enable and disable data flow control for the
WAN port of the router.
This function is used for equal load balancing in ISPs' networks. Contact your ISP to clarify if this
function needs to be enabled.

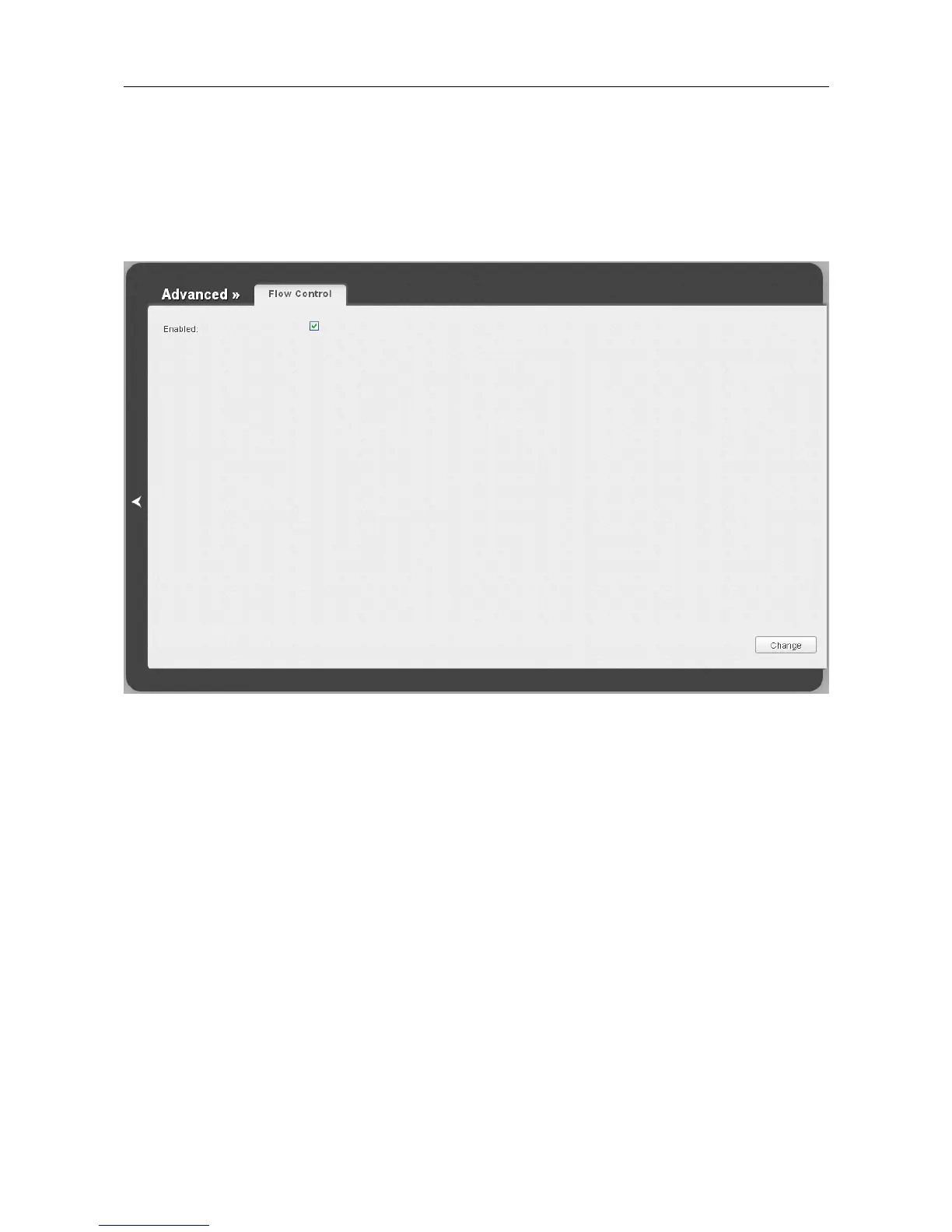

Figure 110. The Advanced / Flow Control page.
To enable the flow control function, select the Enabled checkbox and click the Change button.
To disable the flow control function, deselect the Enabled checkbox and click the Change button.
Page 143 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
