D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Traceroute
On the System / Traceroute page, you can define the route of data transfer to a host via the
traceroute utility.

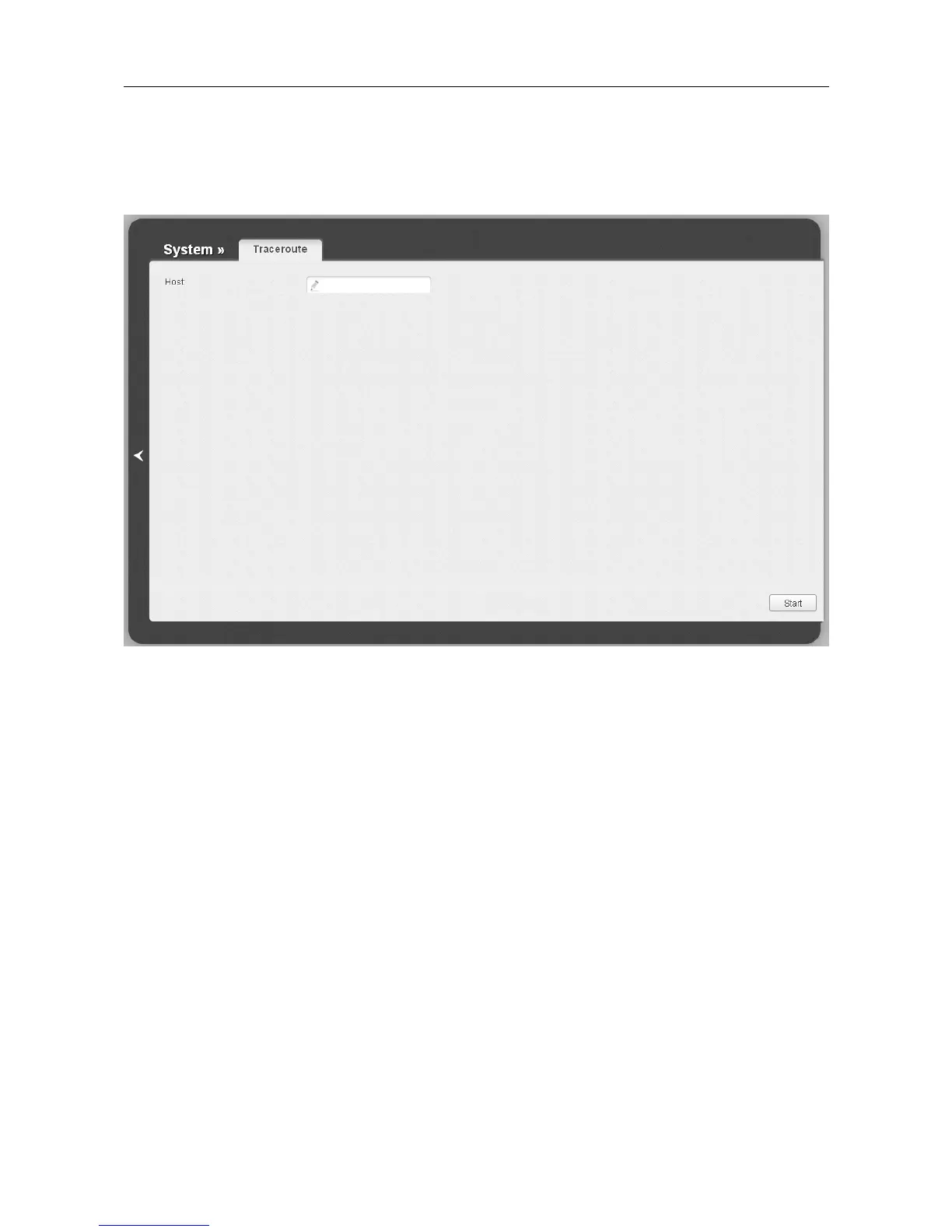

Figure 126. The System / Traceroute page.
To define the route, enter the name or IP address of a host in the Host field and click the Start
button. After a while, the results will be displayed on the page.
Page 165 of 170

D-Link DIR-300 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
Humidity	10% to 90% non-condensing
Wireless Standard	802.11b/g
Antenna	1 x External
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g
