D-Link DIR-300 User Manual

DIR-300 Wireless N 150 Home Router
User Manual
Configuring via Web-based Interface
Creating Static IP WAN Connection
To create a connection of the Static IP type, click the Add button on the Net / WAN page. On the
opened page, select the Static IP value from the Connection Type drop-down list and specify
the needed values.

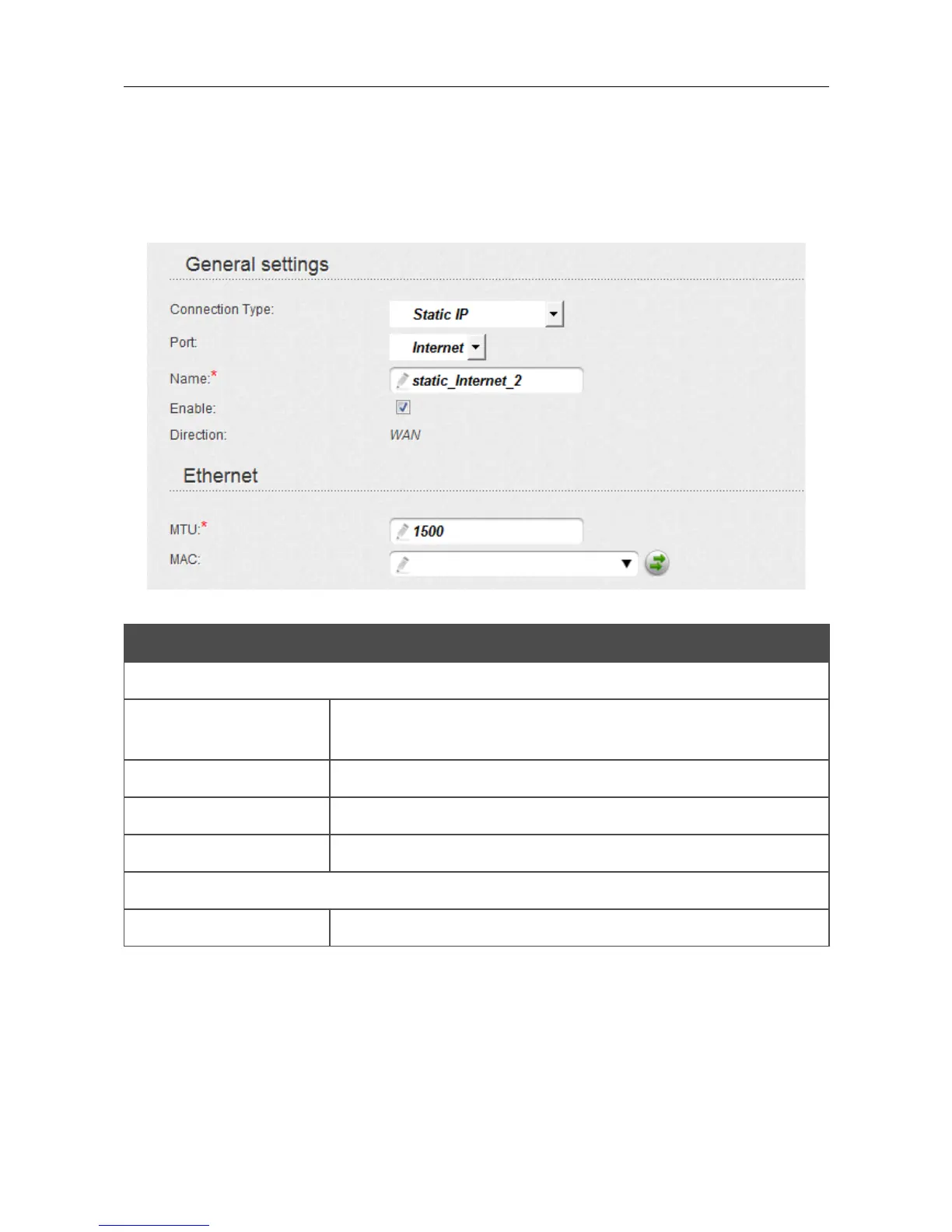

Figure 72. The page for creating a new connection. The General settings and Ethernet sections.
Parameter Description
General settings
Port
A physical or virtual interface to which the new connection will be
assigned.
Name A name for connection for easier identification.
Enable Select the checkbox to enable the connection.
Direction The direction of this connection.
Ethernet
MTU The maximum size of units transmitted by the interface.
Page 90 of 170
