D-Link DXS-1210 Series User Manual
5
DXS-1210-16TC
12-Port 10G SFP+ fiber port, 2-port 10GBASE-T/SFP+ and 2-port 10BGASE-T/SFP+ combo port L2 10
Gigabit Ethernet Switch.

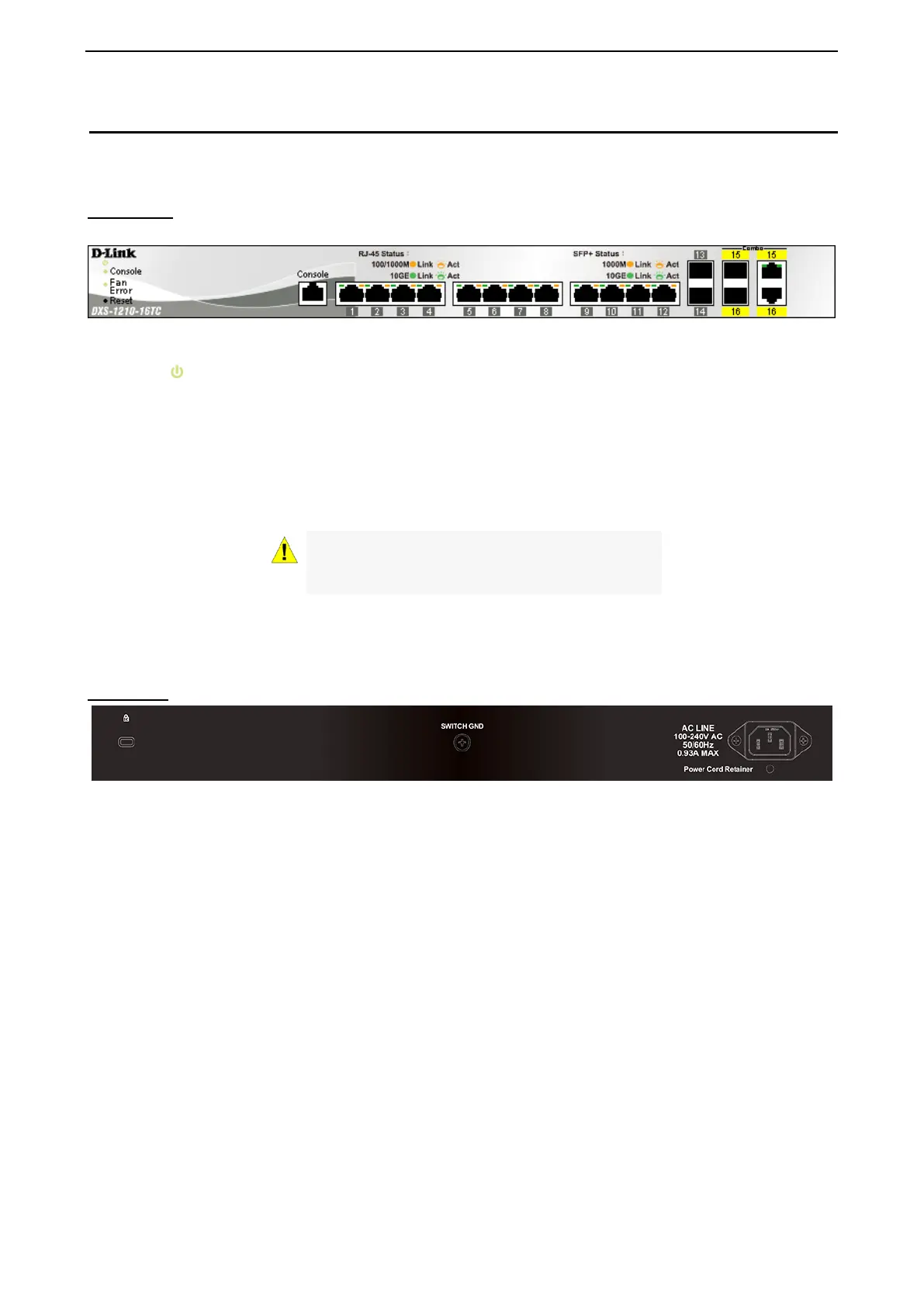

Front Panel
Figure 1.7 – DXS-1210-16TC Front Panel
Power LED
: The Power LED lights up when the Switch is connected to a power source.
Console: The console LED lights up when the console port is connected.
Fan error: The Fan error LED lights up when the fan has runtime failure and is brought offline.
Port Link/Act/Speed LED (1-12, 13F, 14F, 15T, 15F, 16T, 16F): The Link/Act/Speed LED flashes, which
indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or
receiving data to the port. When a port has an amber light, this indicates that the port is running on 100 Mbps
or 1000 Mbps. When it has a green light it is running on 10 Gbps.
CAUTION: The MiniGBIC ports should use UL
listed Optical Transceiver product, Rated Laser
Class I. 3.3Vdc.
Reset: By pressing the Reset button for 1 ~ 5 seconds to reboot the device. By pressing the Reset button for
6 ~ 10 seconds, the Switch will change back to the default configuration and all changes will be lost.
Rear Panel
Figure 1.8 – DXS-1210-16TC Rear Panel
Power: Connect the AC power cord to this port.
