D-Link DXS-1210 Series User Manual
24
System > Port Configuration > Jumbo Frame
The Jumbo Frame page allows you to view and configure the Jumbo Frame size and settings. Jumbo frames
are Ethernet frames with more than 1,518 bytes of payload. The Switch supports jumbo frames with a
maximum frame size of up to 9216 bytes.

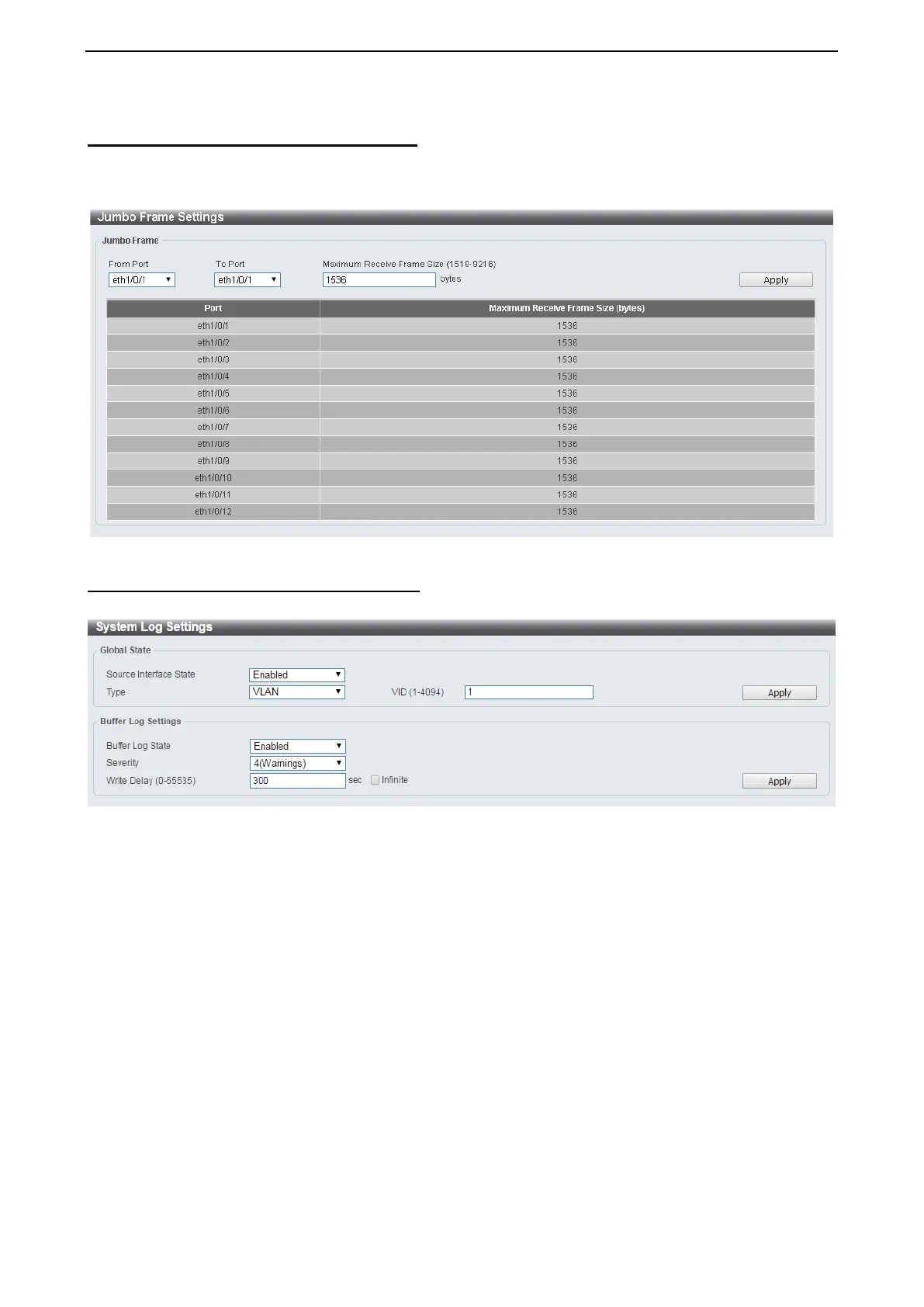

Figure 4.32 –System > Port Configuration > Jumbo Frame
System > System Log > System Log Settings
The System Log Settings page allows you to view and configure the system’s log settings.
Figure 4.33 – System > System Log > System Log Settings
Global State:
Source Interface State: Select to enable or disable the source interface’s global state.
Type: Select the type of interface that will be used. The default option is VLAN.
VID (1-4094): Specifies the VLAN ID. The possible range is 1 – 4094.
Click the Apply button to save your settings.
Buffer Log Settings:
Buffer Log State: Select to enable or disable the buffer log state.
Severity: Select the severity value of the type of information that will be logged. The values are 0
(Emergencies), 1 (Alerts), 2 (Critical), 3 (Errors), 4 (Warnings), 5 (Notifications), 6 (Informational), and 7
(Debugging).
Write Delay (0-65535): Enter the interval for periodic writing of the logging buffer to flash. The value is
between 0 and 65535 seconds. And default is 300 seconds. Tick the Infinite option, to disable the write delay
feature.
Click the Apply button to save your settings.
