Port Settings:
From Port/To Port: Specify the port range used for the configuration.
State: Specify to enable or disable the state of the port.
Click the Apply button to save your settings.
L2 Features > Auto Surveillance VLAN > MAC Settings and Surveillance Device
The MAC Settings and Surveillance Device page is used to configure the user-defined surveillance device
OUI and display the surveillance VLAN information.

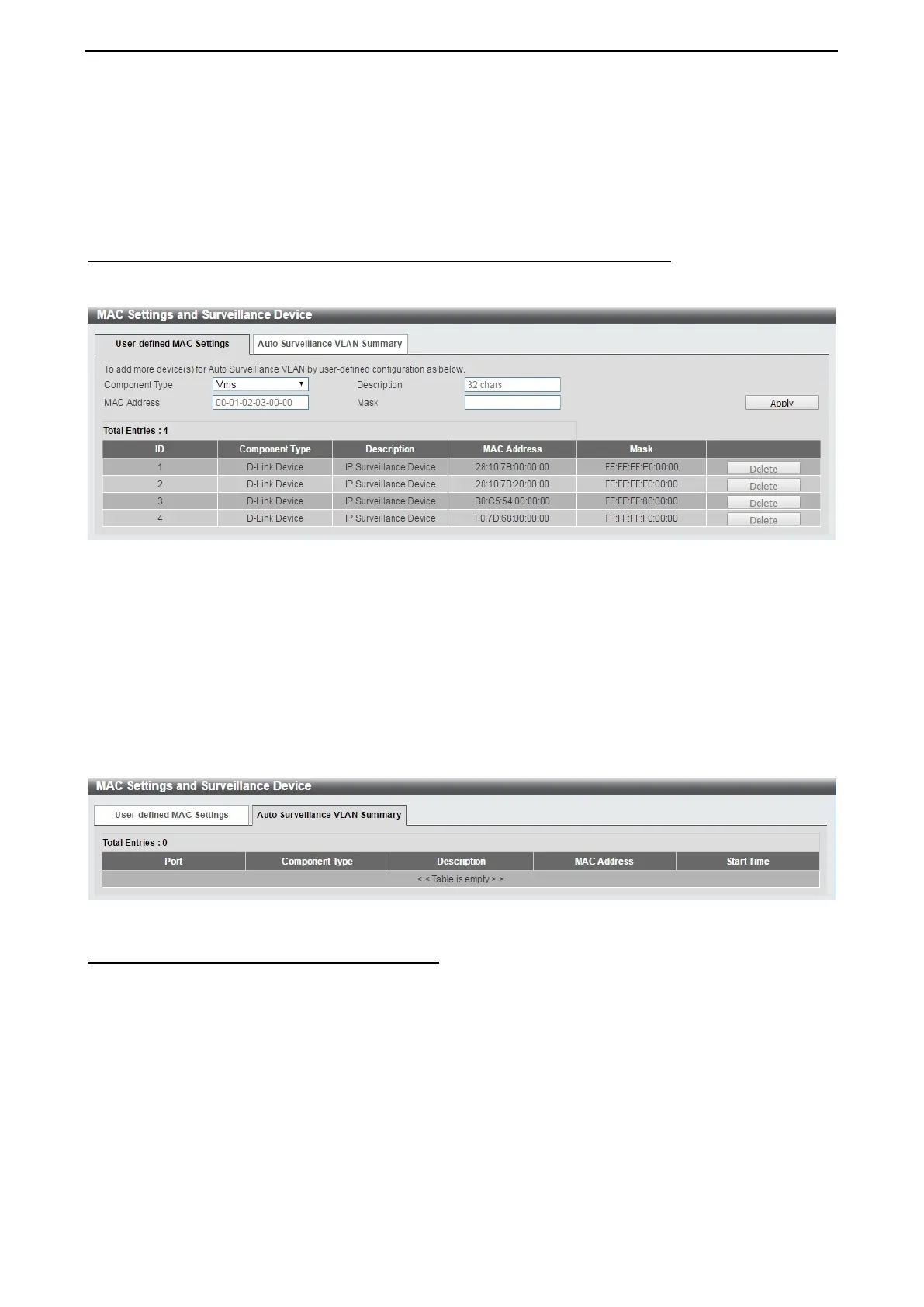

Figure 4.69 – L2 Features > Auto Surveillance VLAN > MAC Settings and Surveillance Device
Component Type: Specify the surveillance component type. Option to choose from are Vms, VmsClient,
VideoEncoder, NetworkStorage and Other.
Description: Enter the description for the user-defined OUI with a maximum of 32 characters.
MAC Address: Enter the OUI MAC address.
Mask: Enter the OUI MAC address matching bitmask.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specified entry.
After click the Auto Surveillance VLAN Summary tab, the following page will appear.
Figure 70 – L2 Features > Auto Surveillance VLAN > MAC Settings and Surveillance Device
L2 Features > Voice VLAN > Voice VLAN Global
The Voice VLAN is a VLAN used to carry voice traffic from an IP phone. As the sound quality of Voice over
IP, is sensitive to delay Quality of service (QoS) for voice traffic should be configured to ensure that voice
traffic is handled with a higher priority.
The switches determine whether a received packet is a voice packet by checking its source MAC address. If
the source MAC addresses of a packet complies with the organizationally unique identifier (OUI) addresses
configured by the system, the packets are determined as voice packets and transmitted in voice VLAN.
