L2 Features > FDB > Static FDB > Unicast Static FDB
The Unicast Static FDB page allows you to view and configure the static unicast forwarding settings on the
Switch.

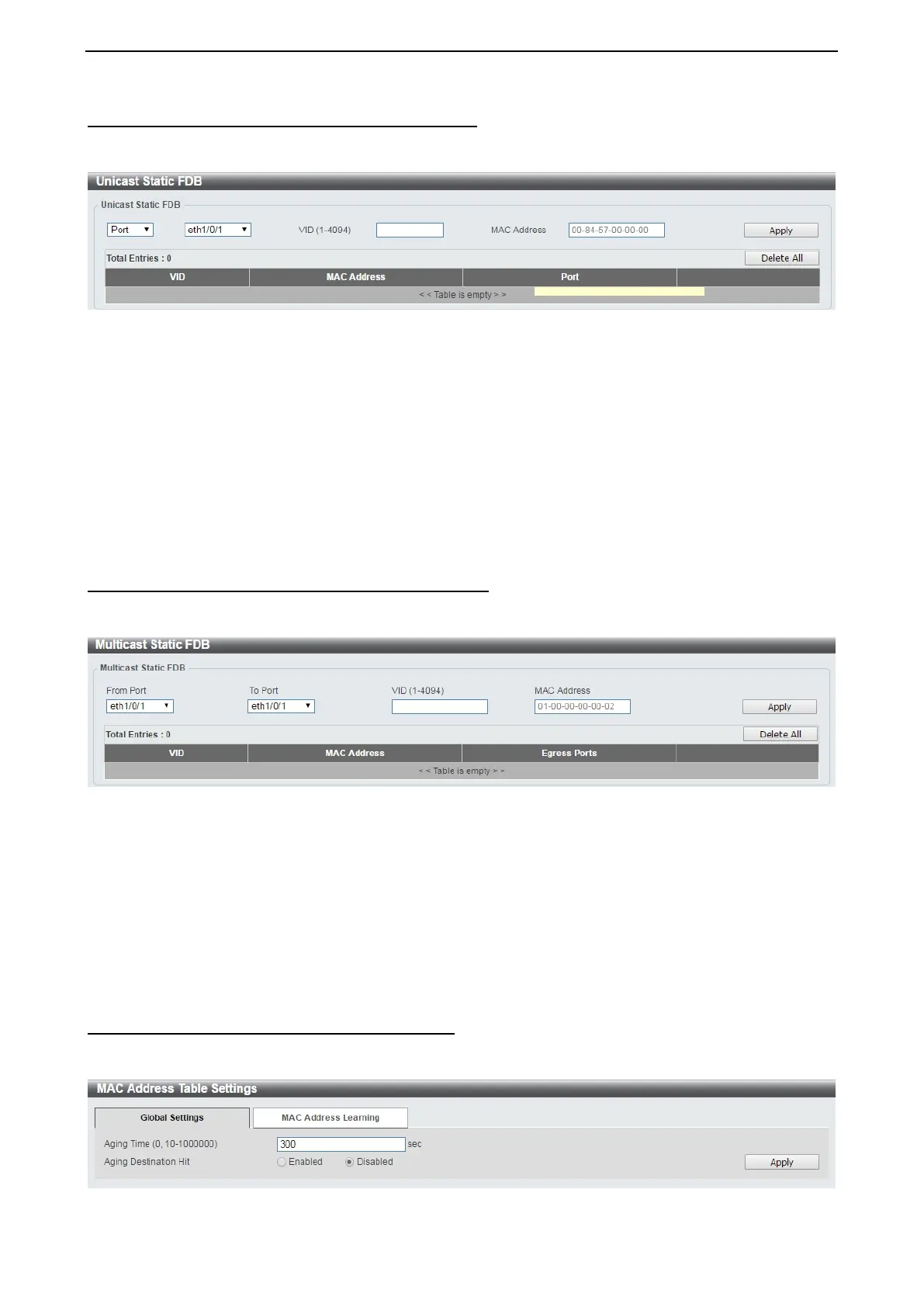

Figure 4.58 – L2 Features > FDB > Static FDB > Unicast Static FDB
Port / Drop: Allows the selection of the port number on which the MAC address entered resides. This option
could also drop the MAC address from the unicast static FDB. When selecting Port, select the switch unit
and port number.
VID (1-4094): Enter the VLAN ID on which the associated unicast MAC address resides.
MAC Address: Enter the MAC address to which packets will be statically forwarded or dropped. This must
be a unicast MAC address.
Click the Apply button to save your settings or click the Delete All button to delete all the entries found in the
display table.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
L2 Features > FDB > Static FDB > Multicast Static FDB
The Multicast Static FDB page allows you to view and configure the static multicast forwarding settings on
the Switch.
Figure 4.59 – L2 Features > FDB > Static FDB > Multicast Static FDB
From Port / To Port: Enter the appropriate port range used for the configuration.
VID (1-4094): Enter the VLAN ID of the VLAN the corresponding MAC address belongs to.
MAC Address: Enter the static destination MAC address of the multicast packets. This must be a multicast
MAC address. The format of the destination MAC address is 01-XX-XX-XX-XX-XX.
Click the Apply button to save your settings. And click the Delete All button to remove all the entries. Click
the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
L2 Features > FDB > MAC Address Table Settings
The MAC Address Table Settings page allows you to view and configure the MAC address table’s global
settings.
Figure 4.60 – L2 Features > FDB > MAC Address Table Settings – Global Setting
