D-Link DXS-1210-12TC User Manual

D-Link DXS-1210 Series User Manual
124
Click the Delete button to remove the specified entry.
After clicking the Power Saving Shutdown Settings tab, the following page will appear.

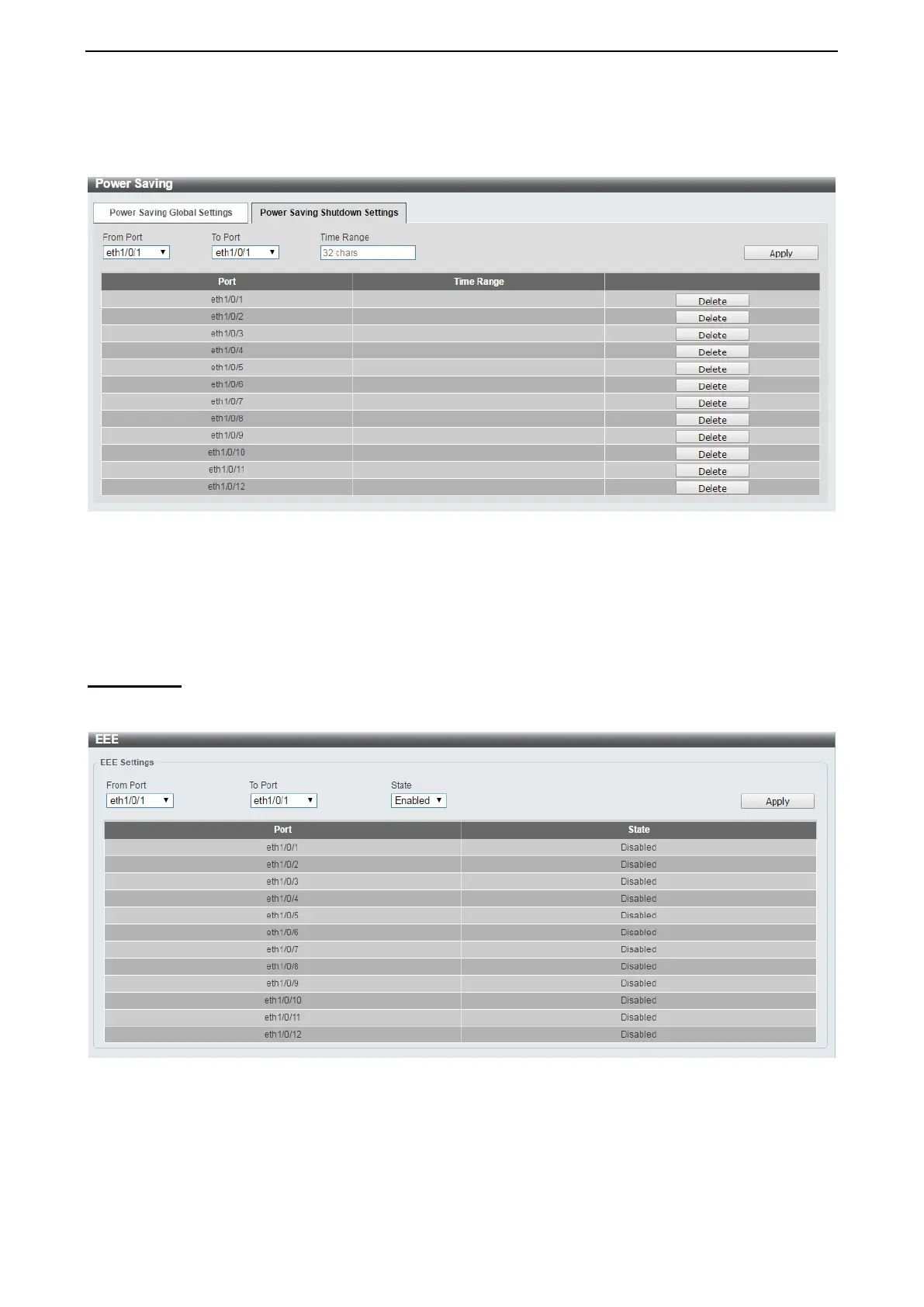

Figure 4.205 – Green > Power Saving – Shutdown Settings
From Port / To Port: Select the range of ports to be configured.
Time Range: Enter the time range to associate with the specified ports.
Click the Apply button to save your settings.
Green > EEE
The Energy Efficient Ethernet (EEE) is defined in IEEE 802.3az. It is designed to reduce the energy
consumption of a link when no packets are being sent.
Figure 4.206 – Green > EEE
From Port / To Port: Select the range of ports to be configured.
State: Select to enable or disable the EEE feature.
Click the Apply button to save your settings.

D-Link DXS-1210-12TC Specifications

General

Model	DXS-1210-12TC
Product Type	Switch
Ports	12
10/100/1000BASE-T Ports	8
10G SFP+ ports	4
SFP Slots	4
Switching Capacity	240 Gbps
MAC Address Table Size	16K
Jumbo Frame Support	Yes
VLAN Support	Yes
PoE	No
Power Consumption	30W
Port Type	SFP+
Jumbo Frame Size	9KB
Management	CLI
Forwarding Rate	178.57 Mpps
