D-Link DXS-1210 Series User Manual
106
State: Select to enable or disable the port security state of specified ports.
Maximum (1-6556): Enter the maximum number of secure MAC addresses that will be allowed on the
specified ports. The value is between 1 and 6656.
Violation Action: Select the violation action that will be taken. The values are Protect, Restrict, and
Security Mode: Select the security mode option. The values are Permanent and Delete-on-Timeout. If you
select Permanent, the MAC addresses that have been learned by the Switch will not be purged unless you
manually delete them. If you select Delete-on-Timeout, all learned MAC addresses will be purged when an
entry is aged out or when you manually delete them.
Aging Time (0-1440): Enter the aging time for auto-learned dynamic addresses on the specified ports.
Aging Type: Select the aging type. The values are Absolute and Inactivity. Select Absolute so that all the
dynamic addresses on this port age out exactly after the time specified and are removed from the secure
address list. This is the default option. Select Inactivity so that the dynamic addresses on this port age out
only if there is no traffic from the addresses for the specified time period.
Click the Apply button to save your settings.
Security > Port Security > Port Security Address Entries
The Port Security Address Entries page allows you to view, clear and configure the port security address
entries.

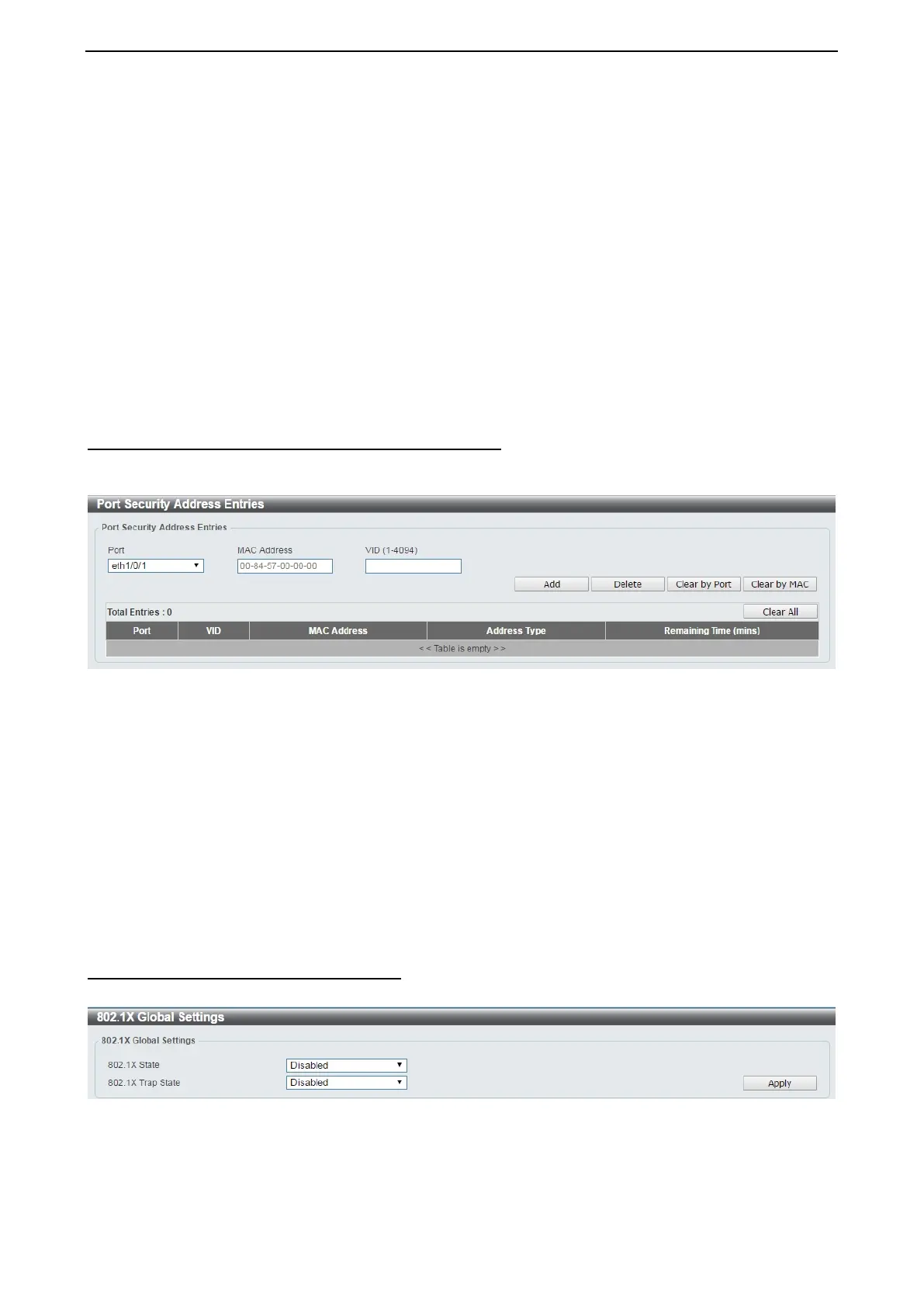

Figure 4.169 – Security > Port Security > Port Security Address Entries
Port: Select the port to be configured.
MAC Address: Enter the MAC address for the specified port.
VID (1-4094): Enter the VLAN ID. The range is between 1 and 4094.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove a new entry based on the information entered.
Click the Clear by Port button to clear the information based on the port selected.
Click the Clear by MAC button to clear the information based on the MAC address entered.
Click the Clear All button to clear all the information in this table.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Security > 802.1X > 802.1X Global Settings
The 802.1X Global Settings page allows you to configure the 802.1X feature.
Figure 4.170 – Security > 802.1X > 802.1X Global Settings
802.1X State: Specify to enable or disable the 802.1X state.
802.1X Trap State: Specify to enable or disable the 802.1X trap state.
