Daewoo DV6T844B User Manual

11
PRODUCT INFORMATION
INSTALLATION

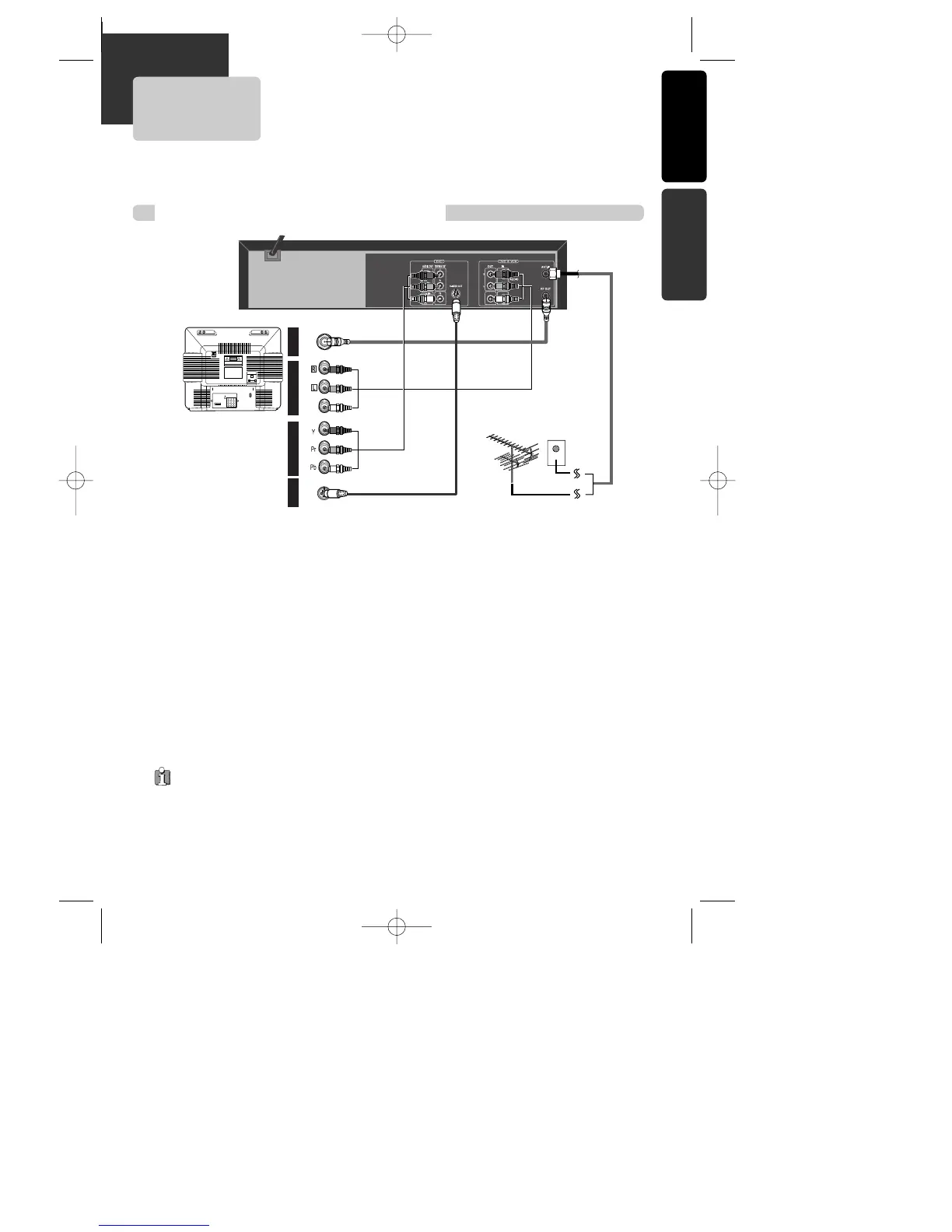

Various methods in connecting with TV
AUDIO
VIDEO
S-VIDEO
ANT INPUT
S-VIDEO INPUT
A/V INPUTCOMPONENT INPUT
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PRESONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
2018 1614 12 108 6 4 3
2119 1715 13 119 7 5 3 1
Method
Method
1
1
Remove circular cable (RF cable) (surplus cable) plugged in ÒANT.INÓ Jack in rear panel of TV. Connect the
cable to ÒANT.INÓ jack in rear panel of DVD-Video. Connect TV to DVD-Video. Connect ÒRF OUTÓ jack in DVD-
Video with ÒANT.INÓ jack in TV with RF cable.
Method
Method
2
2 : Connecting to a TV that has a audio/video in jacks
Connect VIDEO OUT jack in DVD-Video to VIDEO IN jack in TV, and AUDIO OUT jack in DVD-Video to AUDIO IN
jack in TV with connecting cable of Audio/Video jack. Select VCR mode by pressing TV/INPUT button in TV, you
can view more clear screen and sound than connection with RF cable only.
Method
Method
3
3 : Connecting to a TV that has a component video in jacks
Use a component video cable (commercially available) in place of the yellow video cable to enjoy higher quality
pictures. The component video connection only supplies video (picture) in the DVD mode of the DVD-Video.
Therefore, in order to use the VCR features or view TV channels at the DVD-Video, you still need to either
connect the RF coaxial cable between the ANT-OUT jack of the DVD-Video and the TVÕs Antenna In jack, or
connect the video cable.
Method
Method
4
4 : Connecting to a TV that has a S-Video in jacks
Use a S-Video cable (not supplied) to enjoy higher quality pictures.
■ In the initial SET, exclusive channel for video is set to CH 3. To change this setting, set again in ÒCHANNEL
SETÓ screen in VCR operation.
■ In connecting RF cable to TV, set TV channel to CH3.
Connecting with TV
¥ VHF: 2 ~13 channels of TV , UHF: 14~69 channels of TV, CATV: Broadcasting is transmitted with cable from
broadcasting station by contract with the station and consumers. It does not need any antenna.
¥ In/Out jack in Audio/Video terminal: - In: A jack used to receive signal required in this unit from other units. -
Out: A jack used to send signal of this unit to other units.
¥ Connect with Audio/Video terminal, you can enjoy more clear video and audio. (Use OUTPUT button in this remote
control to select video mode.)
¥ If screen is broken in connecting COMPONENT Out to Pr, Pb, Y of TV COMPONENT In jack , connect to Cr, Cb, Y.
<Outside Antenna or Wall Antenna Outlet>
<Rear Panel of DVD-VIDEO>
<Rear Panel of TV>
Method 1
Method 2
Method 3
Method 4
A83/84/53/54D1N-QS(˜ ”‚ VE2.0) 03.8.13 11:20 PM ˘`11

Daewoo DV6T844B Specifications

General

Brand	Daewoo
Model	DV6T844B
Category	DVD Player
Language	English
