252 Part 7 Trial Operation and Field Settings
Caution
5.1.3 When 2 Units are Installed in 1 Room
Outline When 2 indoor units are installed in 1 room, 1 of the 2 indoor units and the corresponding wireless
remote controller can be set for different address.
CTXS, FTXS,
FTXR Series

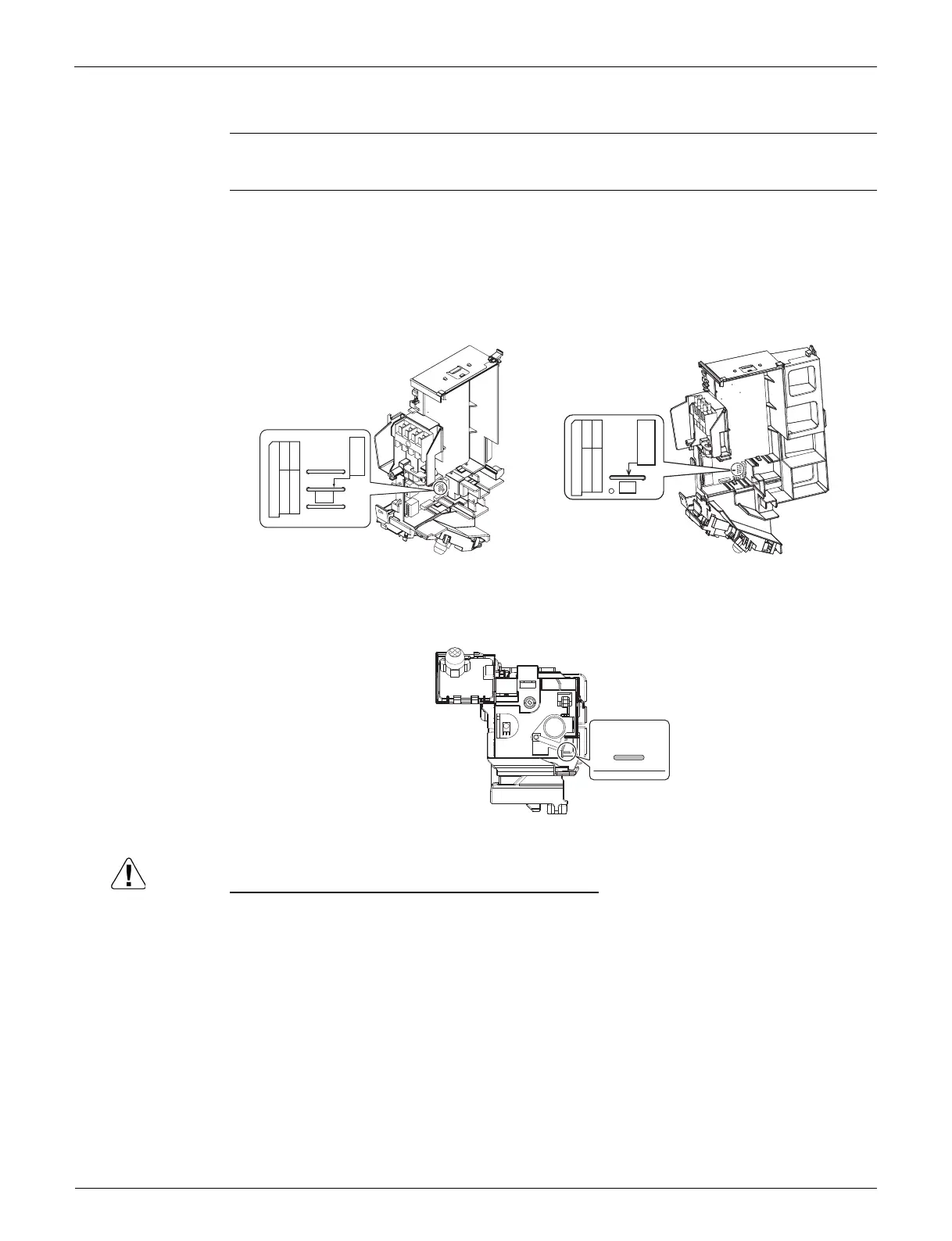

1. Remove the front grille.
2. Remove the electrical box.
3. Remove the shield plate of the electrical box.
4. Cut the address setting jumper JA on the PCB.
FTXR Series
Replace the PCB if you cut a jumper unintentionally.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of them.
CTXS07WVJU9, FTXS09/12WVJU9 FTXS15/18/24WVJU9
R7000366
ADDRESS
JC
JA
JB
ADDRESS:JA
EXIST
1
CUT
2
(R17375)
ADDRESS
ADDRESS:JA
EXIST
1
CUT
2
JA
JA
(Bottom of electrical box)
ADDRESS : JA
EXIST : 1
CUT : 2
(R21128)
