Also provided are two Form C relay outputs that
are in various locations depending upon the
frequency converter configuration and size
•
Some options available for ordering with the unit
may provide additional terminals. See the manual
provided with the equipment option.
See 10.2 General Technical Data for terminal ratings details.
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
12, 13 - +24 V DC 24 V DC supply
voltage.
Maximum
output current is 200
mA total for all 24 V
loads. Useable for
digital inputs and
external transducers.
18 5-10 [8] Start
Digital inputs.
19 5-11 [0] No
operation
32 5-14 [0] No
operation
33 5-15 [0] No
operation
27 5-12 [2] Coast
inverse
Selectable for digital
input
and output.
Default setting
is
input.
29 5-13 [14] JOG
20 - Common for digital
inputs and 0 V
potential
for 24 V
supply.
37 - Safe Torque
Off (STO)
(optional) Safe input.
Used
for STO
Analog Inputs/Outputs
39 - Common for analog
output
42 6-50 Speed 0 -
High
Limit
Programmable analog
output. The analog
signal is 0-20 mA or
4-20 mA at a
maximum of 500 Ω
50 - +10 V DC 10 V DC analog
supply voltage. 15 mA
maximum commonly
used for potenti-
ometer or thermistor.
53 6-1 Reference Analog input.
Selectable for voltage
or current.
Switches
A53 and A54 select
mA or V.
54 6-2 Feedback
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
55 - Common for analog
input
Serial Communication
61 - Integrated RC-Filter
for
cable screen. ONLY
for
connecting the
screen when experi-
encing EMC problems.
68 (+) 8-3 RS-485 Interface. A
control card switch is
provided
for
termination resistance.
69 (-) 8-3
Relays
01, 02, 03 5-40 [0] [0] Alarm Form C relay output.
Usable
for AC or
DC
voltage and resistive
or inductive loads.
04, 05, 06 5-40 [1] [0] Running

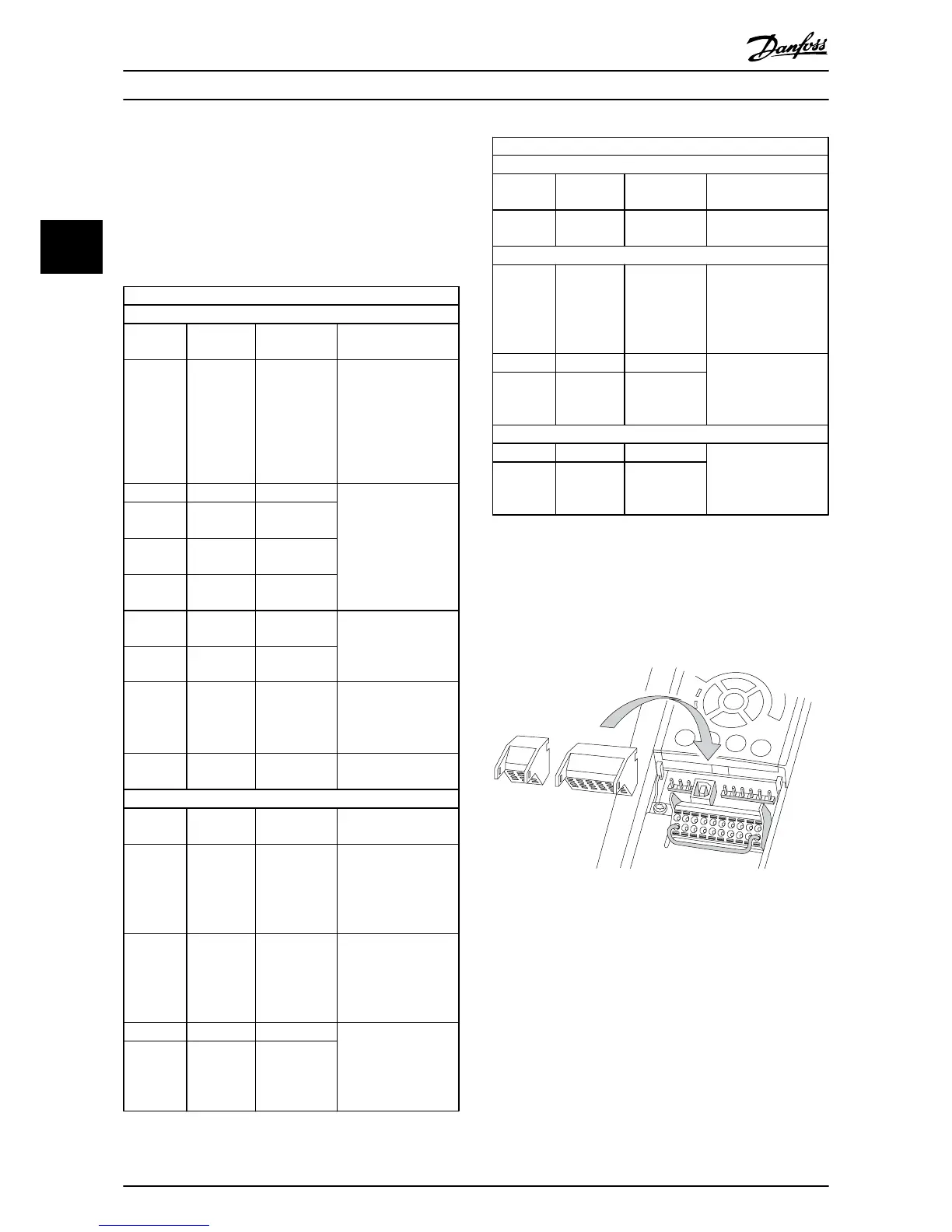

Table 2.4 Terminal Description
2.4.5.3 Wiring to Control Terminals
Control terminal connectors can be unplugged from the
frequency
converter
for
ease
of installation, as shown in
Illustration 2.20.
Illustration 2.20 Unplugging Control Terminals
1. Open the contact by inserting a small screwdriver
into the slot above
or below the contact, as
shown in Illustration 2.21.
2. Insert the bared control wire into the contact.
3. Remove the screwdriver to fasten the control wire
into the contact.
4. Ensure the contact is firmly established and not
loose. Loose control wiring can be the source of
equipment faults or less than optimal operation.
See 10.1 Power-dependent Specifications for control terminal
wiring sizes.
Installation
VLT
®
HVAC Drive Operating Instructions
18 MG11AI02 - VLT
®
is a registered Danfoss trademark
22
