2.1.3 Quick Transfer of Parameter Settings
between Multiple Frequency
Converters
Once the set-up of a frequency converter is complete,
store the data in the LCP or on a PC via MCT 10 Set-up
Software Tool.
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
On
Alarm
Warn.
130BA027.10

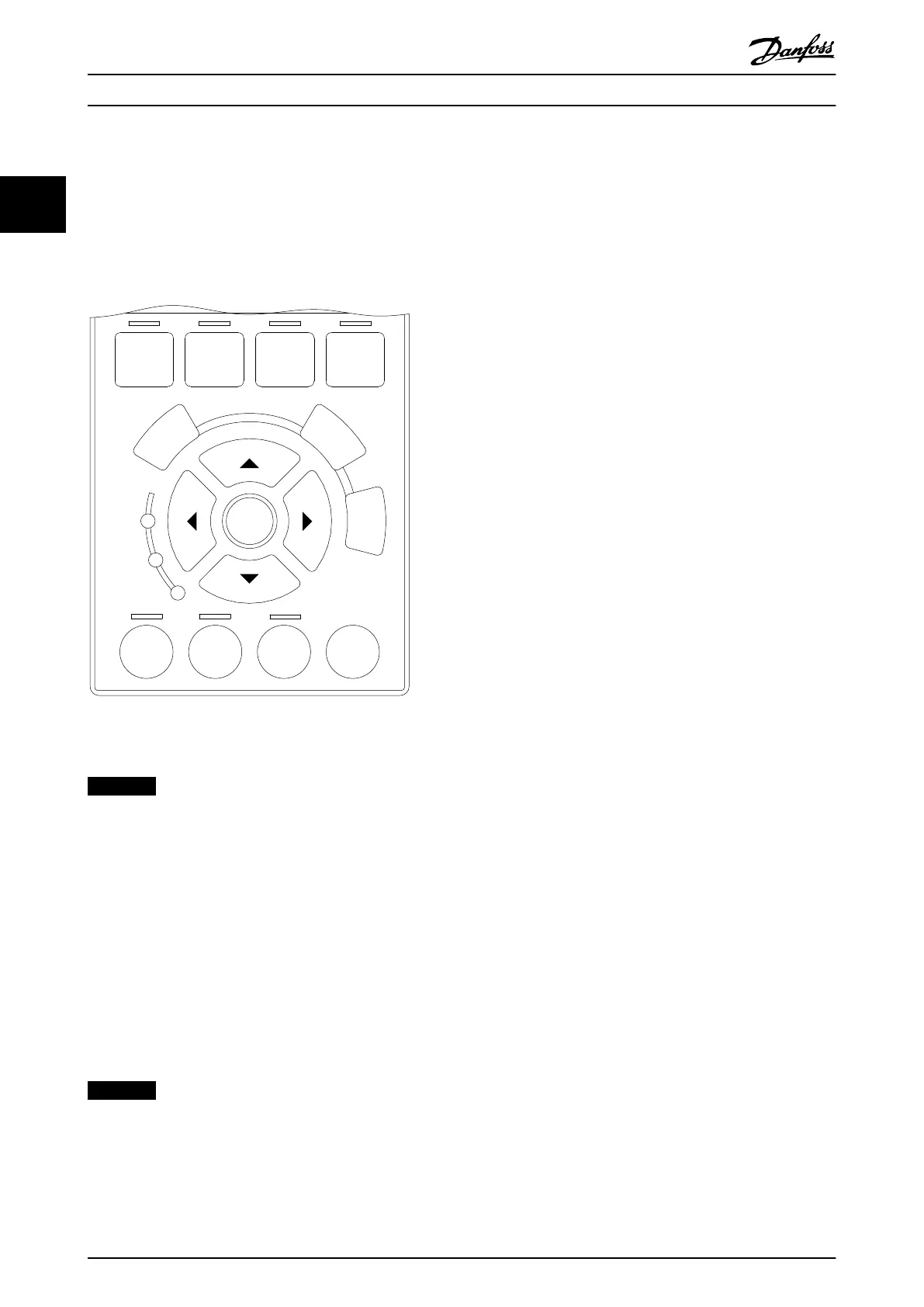

Illustration 2.18 LCP
Data storage in LCP
NOTICE
Stop the motor before performing this operation.
To store the data in the LCP:
1.
Go to parameter 0-50 LCP Copy.
2. Press the [OK] key.
3.
Select [1] All to LCP.
4. Press the [OK] key.
All parameter settings are now stored in the LCP indicated
by the progress bar. When 100% is reached, press [OK].
Connect the LCP to another frequency converter and copy
the parameter settings to this frequency converter as well.
Data transfer from LCP to frequency converter
NOTICE
Stop the motor before performing this operation.
To transfer the data from the LCP to the frequency
converter:
1.
Go to parameter 0-50 LCP Copy.
2. Press the [OK] key.
3.
Select [2] All from LCP.
4. Press the [OK] key.
The parameter settings stored in the LCP are now
transferred to the frequency converter indicated by the
progress bar. When 100% is reached, press [OK].
2.1.4 Parameter Set-Up
The frequency converter can be used for practically all
assignments, thus oering a signicant number of
parameters. The series oers a choice between 2
programming modes - the Quick Menu mode and the Main
Menu mode.
The latter provides access to all parameters. The former
takes the user through a few parameters making it
possible to program the majority of HVAC applications.
Regardless of the programming mode, parameters can be
changed in both Quick Menu mode and in Main Menu
mode.
2.1.5
Quick Menu Mode
Parameter data
The graphical display (GLCP) provides access to all
parameters listed in the Quick Menu. The numeric display
(NLCP) only provides access to the Quick Set-up parameters.
To set parameters pressing [Quick Menu] - enter or change
parameter data or settings in accordance with the
following procedure:
1. Press [Quick Menu].
2.
Press [
▲
] or [
▼
] to nd the parameter to change.
3. Press [OK].
4.
Press [
▲
] or [
▼
] to select the correct parameter
setting.
5. Press [OK].
6. To move to a dierent digit within a parameter
setting, use the [
◀
] and [
▶
].
7. Highlighted area indicates digit selected for
change.
8. Press [Cancel] to disregard change, or press [OK]
to accept change and enter the new setting.
Example of changing parameter data
Assume parameter 22-60 Broken Belt Function is set to [0]
O. To monitor the fan-belt condition, non-broken or
broken, follow this procedure:
1. Press [Quick Menu].
2.
Press [
▼
] to select Function Set-ups.
3. Press [OK].
4.
Press [
▼
] to select Application Settings.
5. Press [OK].
How to Programme
VLT
®
HVAC Drive FC 102
16 Danfoss A/S © 03/2015 All rights reserved. MG11CE02
