4.3.8 IP21 Drip Shield Installation (Frame
size D)
To comply with the IP21 rating, a separate drip shield is
to be installed as explained below:
•
Remove the two front screws
•
Insert the drip shield and replace screws
•
Torque the screws to 5,6 Nm (50 in-lbs)
NOTE
Drip shield is necessary on both filter and frequency
converter section.
176FA285.10

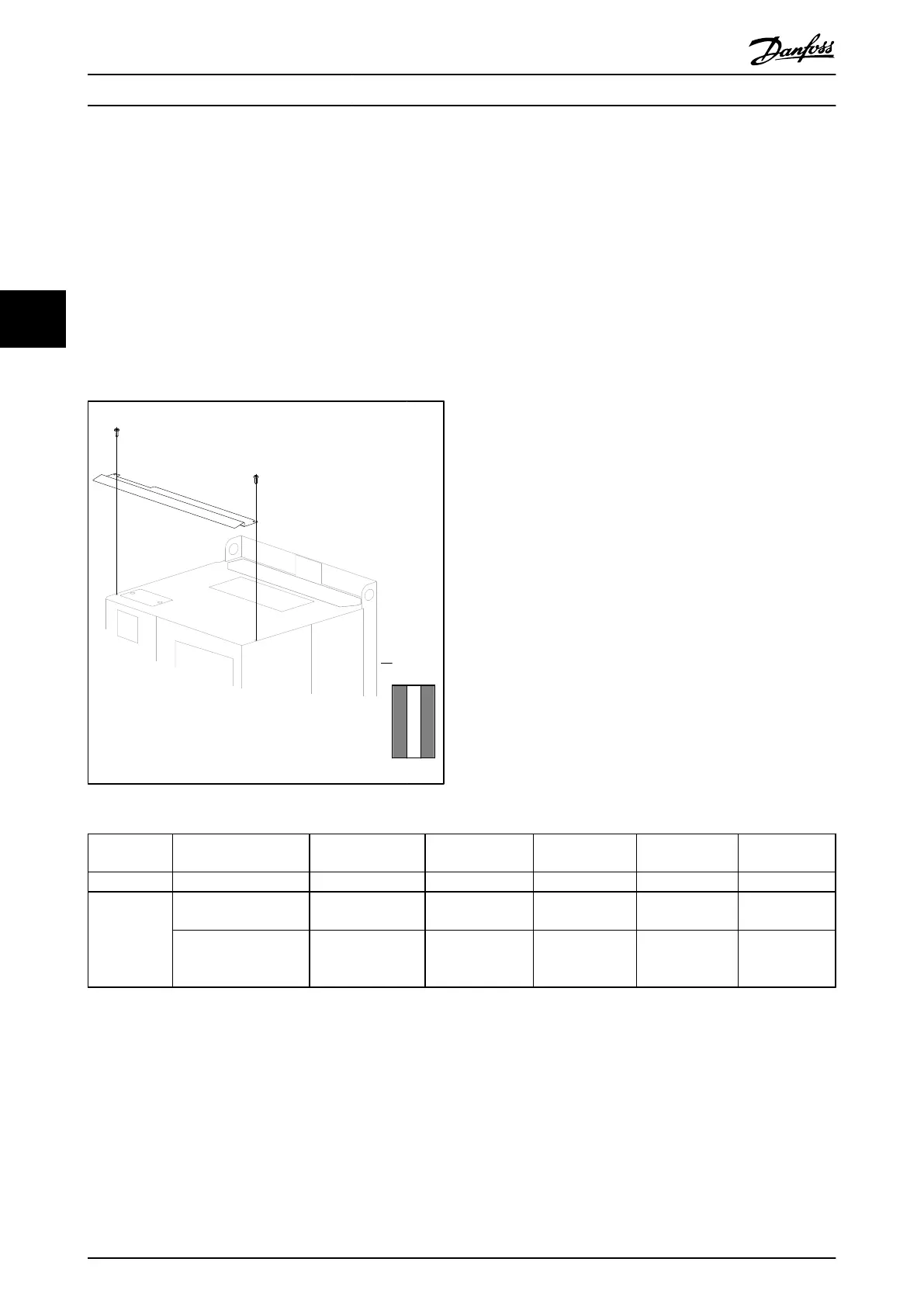

Illustration 4.23 Drip shield installation.
↓ ↓
Table 4.11
4.4
Field Installation of Options
4.4.1 Installation of Input Plate Options
This section is for the field installation of input option kits
available for frequency converters in all D and E frames.
Do not attempt to remove RFI filters from input plates.
Damage may occur to RFI filters if they are removed from
the input plate.
NOTE
Where RFI filters are available, there are two different type
of RFI filters depending on the input plate combination
and the RFI filters interchangeable. Field installable kits in
certain cases are the same for all voltages.
380-480 V
380-500 V
Fuses Disconnect Fuses RFI RFI Fuses RFI Disconnect
Fuses
D13 176F8443 176F8441 176F8445 176F8449 176F8447
E9 FC 102/ 202: 315 kW
FC 302: 250 kW
176F0253 176F0255 176F0257 176F0258 176F0260
FC 102/ 202: 355-450
kW
FC 302: 315-400 kW
176F0254 176F0256 176F0257 176F0259 176F0262
Table 4.12
NOTE
For further information, please see the Instruction Sheet, 175R5795
How to Install VLT Automation Low Harmonic Drive Operating Instructions
