9 Spare Parts
9.1 Spare Parts
9.1.1 General Notes
All spare parts are suitable for conformal coated adjustable
frequency drives and can be used in either coated or non-
conformal coated adjustable frequency drives.
Bus bars used in some units are aluminum. Spare part bus
bars are copper-plated when available. Copper-plated bus
bars are useable for all units.
For the latest spare parts list, visit the Danfoss website
using the directions below.
Spare Parts Lookup Procedure
1.
Go to www.danfoss.com/
2. Ensure that the page displayed is the Danfoss
global homepage. Depending on your location,
home pages may vary.
3.
Under the Quick Links menu, select Configure
your adjustable frequency drive.
4.
Select Drive Configurator at the bottom of the
page.
5. Under Configurable Products, select the type of
unit. The unit type is displayed on the product
label as well as in the first five digits of the type
code (T/C).
6. Under Configure by Type Code or Code No., enter
the unit P/N or T/C. These are displayed on the
product label.
7.
Select Configure.
8. Examine the product description to confirm that
it matches the unit as seen in the type code.
9.
Select Accept at the bottom of the description
list.
10.
Under Extras, select Display Spare Parts.
11. Use the advance page buttons to scroll through
the parts list to determine spare part number.
Click on the part number to see a detailed description of
the part. Note that this feature is under development and
some part descriptions are more complete than others.
9.1.2
DC Capacitor Bank

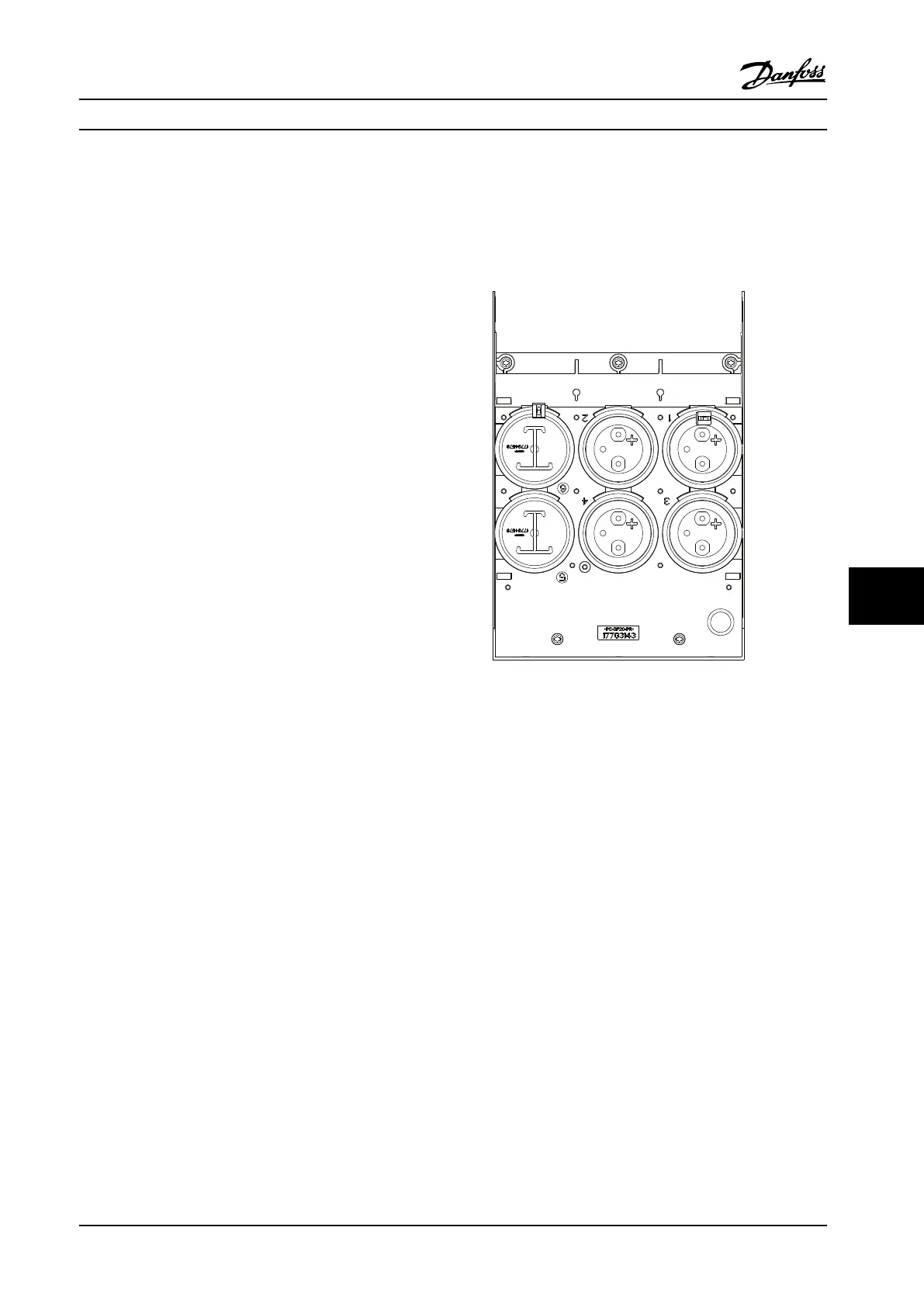

Figure 9.1 DC Capacitor Bank Layout.
See Table 9.1 for Details.
Spare Parts Service Manual
MG94A222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 125
