2
1
8
9
10
11
12
13
15
6
5
4
3
7
130BF863.10
14

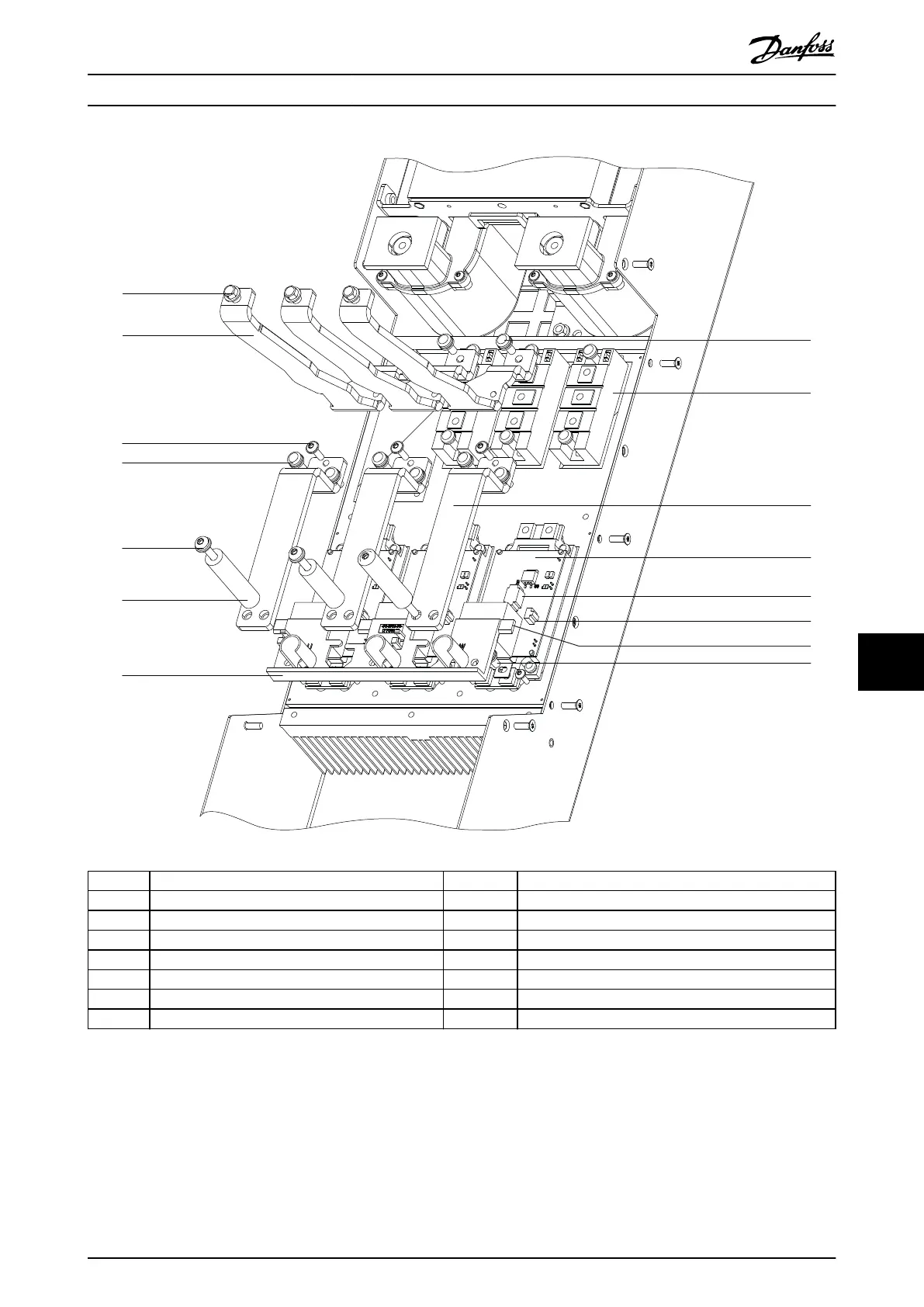

1 Nut (10 mm) 9 SCR module
2 SCR input busbar 10 IGBT output busbar
3 Thread-forming screw (T25) 11 IGBT module (1 of 3)
4 Screw (T30) 12 IGBT gate signal connector
5 Screw (T30) 13 IGBT thermal sensor connector
6 Current sensor cylinder busbar 14 Snubber capacitor
7 Cyclinder busbar support bracket 15 Screw (T30)
8 Screw (T30) – –
Illustration 10.10 SCRs and IGBTs
D1h/D3h/D5h/D6h/J8 Drive Di... Service Guide
