Danfoss VLT FC Series Service Guide

5
3
4
7
9
10
130BF878.10
2
1
8
6

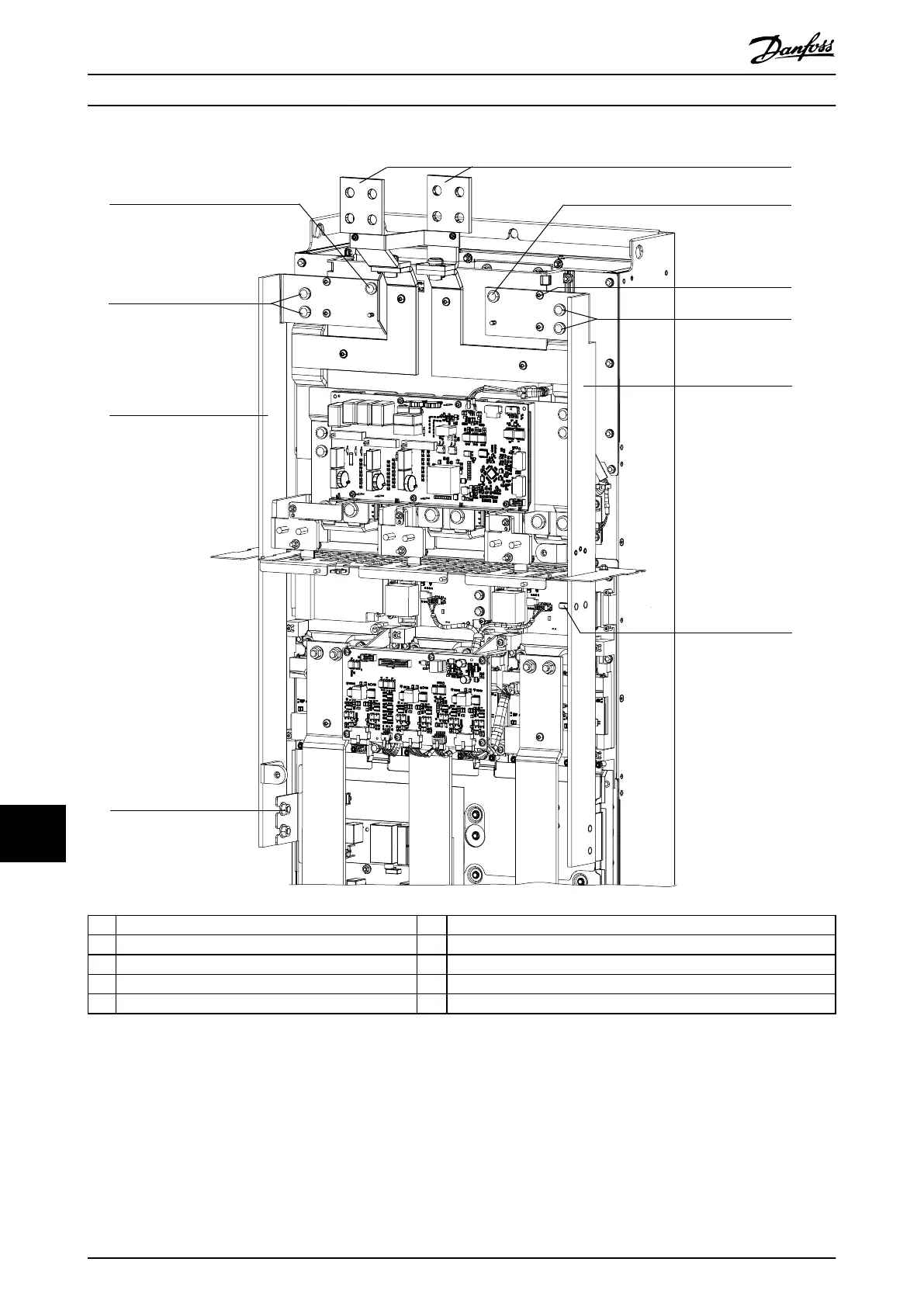

1 Screw (T40) in DC(+) bus rail 6 Screw (T40) in DC(-) bus rail
2 Screws (T40) only with optional regen terminals 7 Screw (T25)
3 DC(+) bus rail (left) 8 Screws (T40) only with optional regen terminals
4 Nut (13 mm) 9 DC(-) bus rail (right)
5 Regen terminals (optional) 10 Nut (13 mm) for optional brake
Illustration 13.34 DC Bus Rails
E1h–E4h Drive Disassembly a...
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
318 Danfoss A/S © 02/2019 All rights reserved. MG94A502
1313
