D. Operation keys and LEDs
13 [Hand On]: Starts the motor and enables control of the
adjustable frequency drive via the LCP.
NOTICE!
[2] coast inverse is the default option for
5-12 Terminal 27 Digital Input. This means that
[Hand On] does not start the motor if there is no
24 V supply to terminal 27. Connect terminal 12 to
terminal 27.
14 [Off/Reset]: Stops the motor (Off). If in alarm mode, the
alarm is reset.
15 [Auto On]: The adjustable frequency drive is controlled
either via control terminals or serial communication.
Table 4.3 Legend to Figure 4.1
4.2 Set-up Wizard
The built-in wizard menu guides the installer through the
set-up of the adjustable frequency drive in a clear and
structured manner for open-loop and closed-loop
applications and quick motor settings.
FC
+24V
DIG IN
DIG IN
DIG IN
DIG IN
COM DIG IN
A OUT / D OUT
A OUT / D OUT
18
19
27
29
42
55
50
53
54
20
12
01
02
03
04
05
06
R2
R1
0-10 V
Reference
Start
+10V
A IN
A IN
COM
130BB674.10
45
+
-

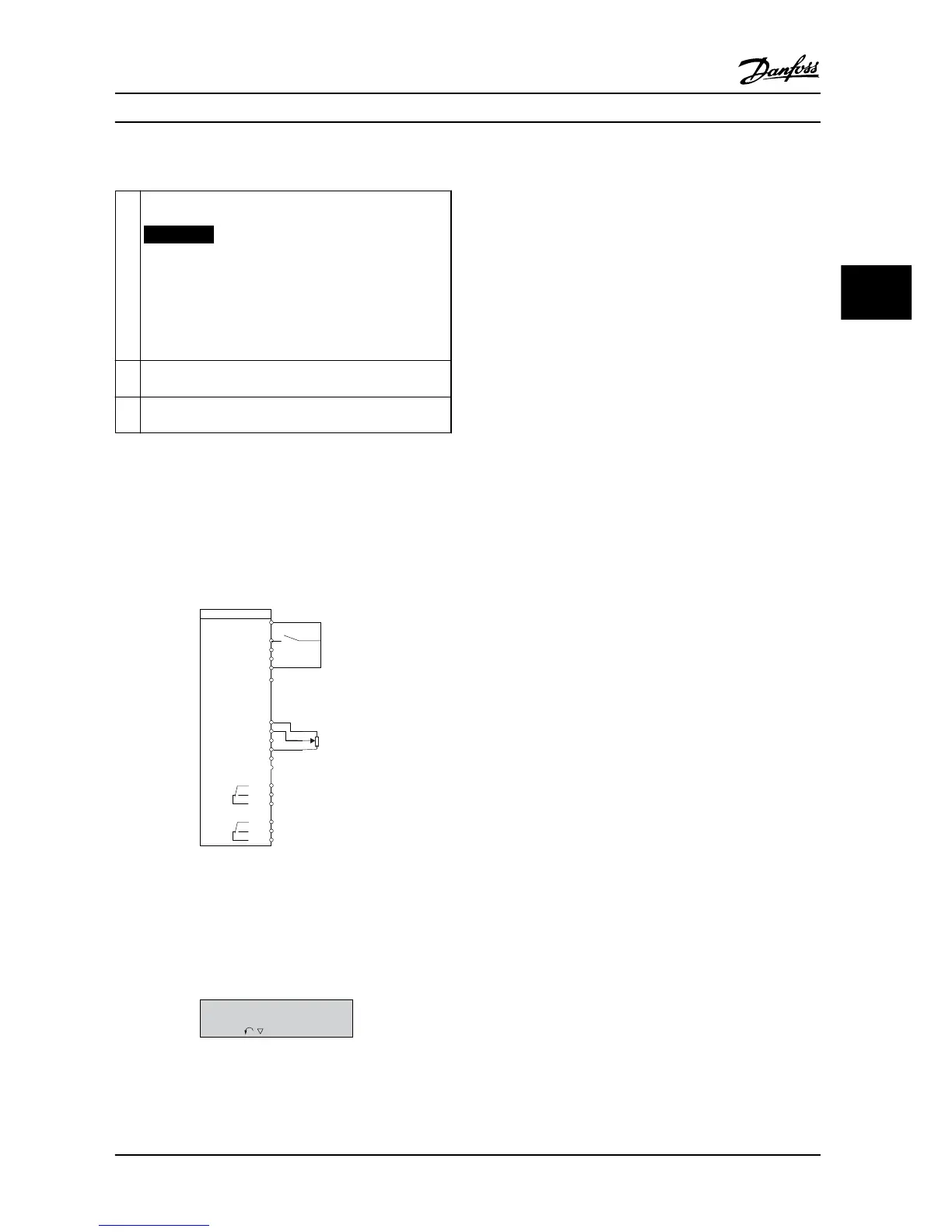

Figure 4.2 Adjustable Frequency Drive Wiring
The wizard will initially be shown after power-up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
130BB629.10
Press OK to start Wizard
Push Back to skip it
Set-up 1
Figure 4.3 Start-up/Quit Wizard
Programming Quick Guide
MG18A622 Danfoss A/S © 08/2014 All rights reserved. 27
4 4
